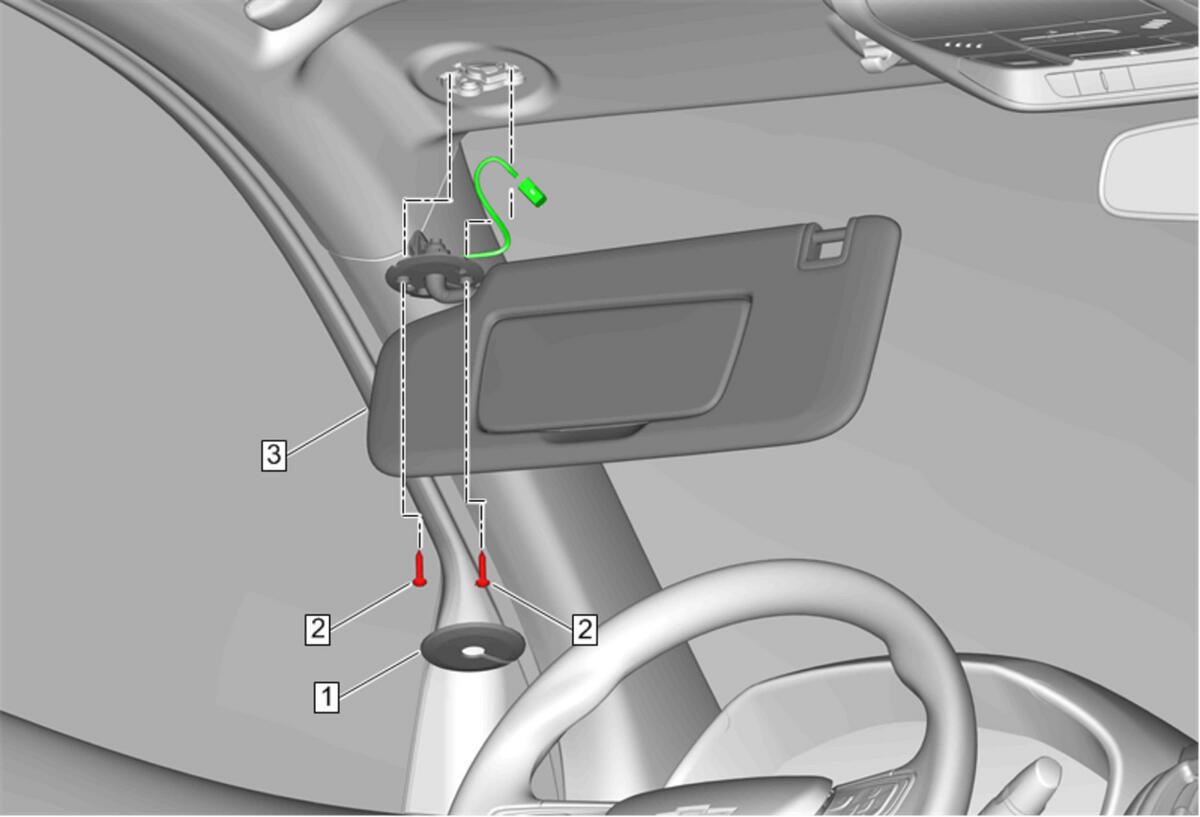

Sunshade Replacement

Callout	Component Name
1	Sunshade Retainer Bolt Cover
2	Sunshade Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Sunshade Procedure It is only necessary to lower the front of the headlining trim panel to gain access to the sunshade electrical connector. Only do those steps in the headlining trim panel replacement procedure that will lower the headliner enough to gain access to the part. Squeeze the tabs at the base of the sunshade to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered. Disconnect the electrical connector. Release the retainer attaching the sunshade to the headlining trim panel.

Callout

Component Name

Sunshade Retainer Bolt Cover

Sunshade Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Sunshade

Procedure

It is only necessary to lower the front of the headlining trim panel to gain access to the sunshade electrical connector. Only do those steps in the headlining trim panel replacement procedure that will lower the headliner enough to gain access to the part.
Squeeze the tabs at the base of the sunshade to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.
Disconnect the electrical connector.
Release the retainer attaching the sunshade to the headlining trim panel.
