Rear Bumper Fascia Energy Absorber Replacement

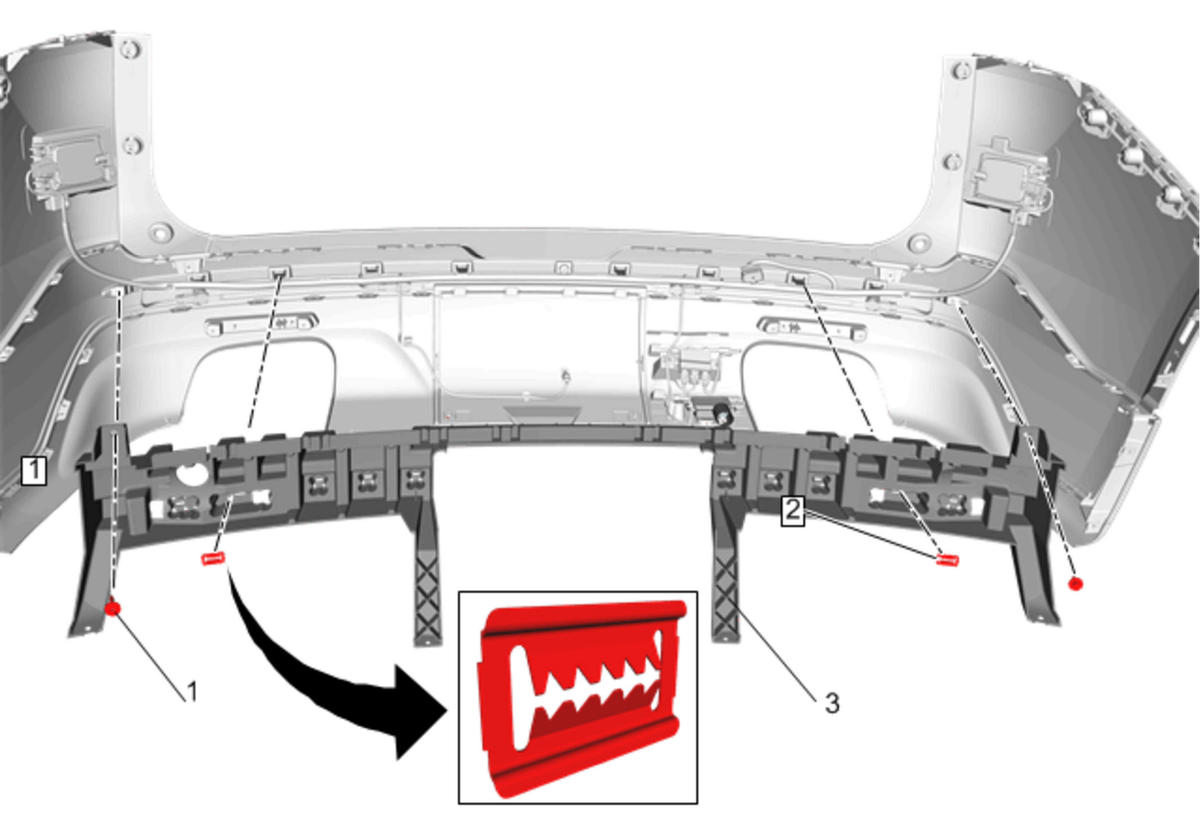

GM4731845
Callout Component Name

Preliminary Procedures

  1. Rear Bumper Fascia Replacement
  2. Reposition the wiring harness.
1 Rear Bumper Fascia Energy Absorber Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Fascia Energy Absorber Clip [2x]
3 Rear Bumper Fascia Energy Absorber
Procedure
Transfer components as necessary.
