Backup Bulb Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement |
|

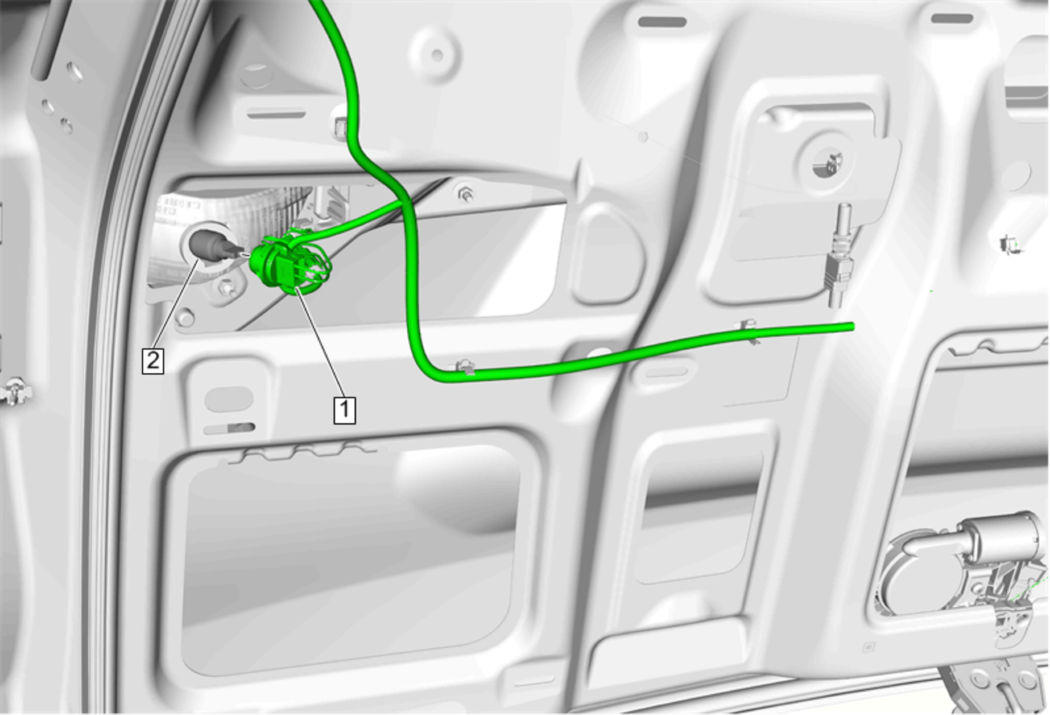

| 1 | Backup Lamp Wiring Harness Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. |
| 2 | Backup Bulb Procedure Pull the bulb from the bulb socket. |
