3rd Row Seat Position Center Reading and Courtesy Lamp Replacement

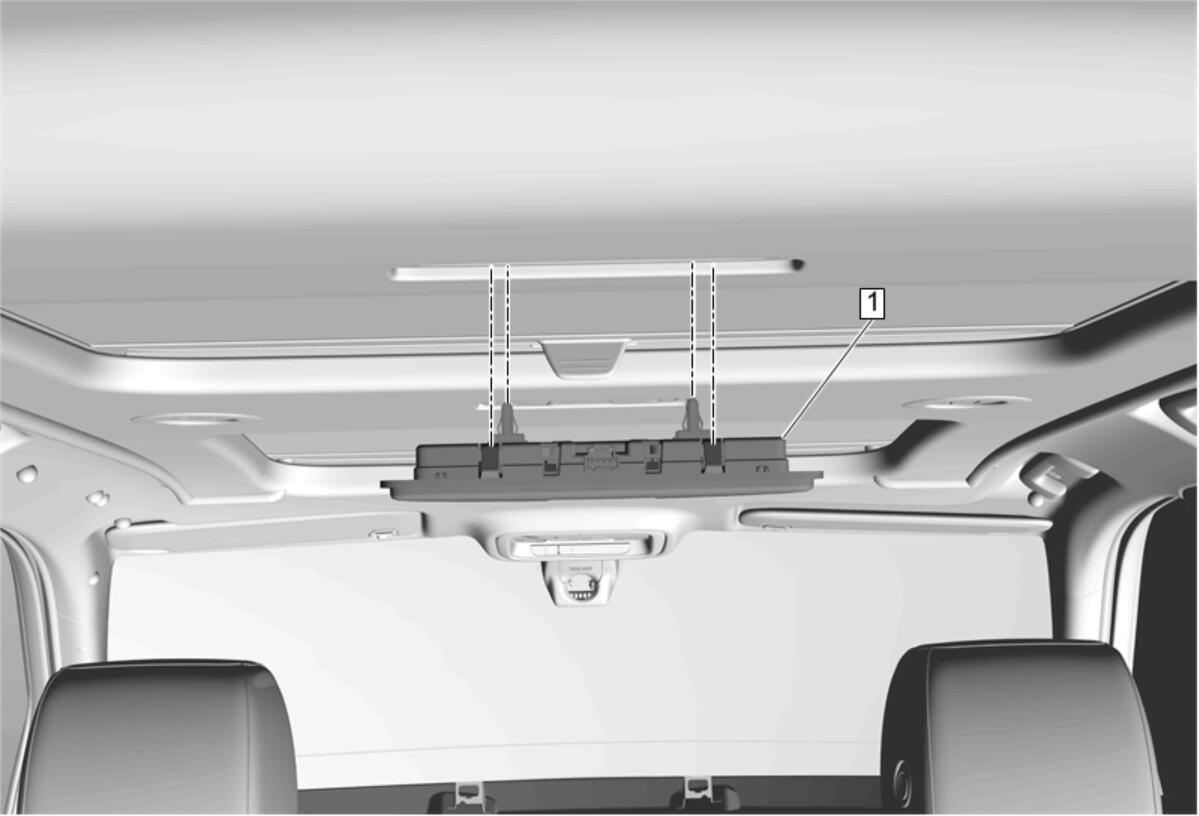

GM4726558Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 3rd Row Seat Position Center Reading and Courtesy Lamp

Procedure

  1. Grasp the lamp and pull downward to release the retainer clips and magnets securing the lamp to the headliner.
  2. Disconnect the electrical connector.
