Active Noise Cancellation Microphone Replacement

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

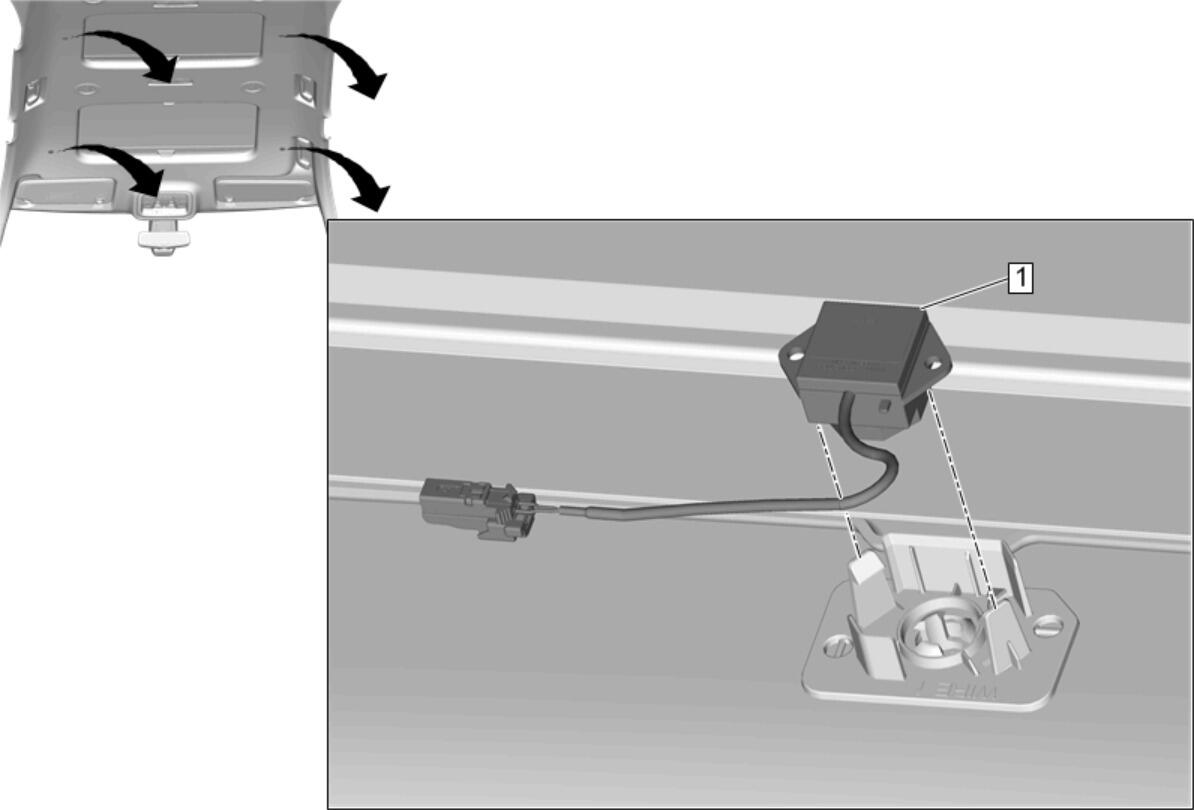

1	Active Noise Cancellation Microphone [4x] Procedure Disconnect the electrical connector. Unlock the retaining tabs. Use a suitable tool.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

Active Noise Cancellation Microphone [4x]

Procedure
