X231 Floor Console Harness to Body Harness

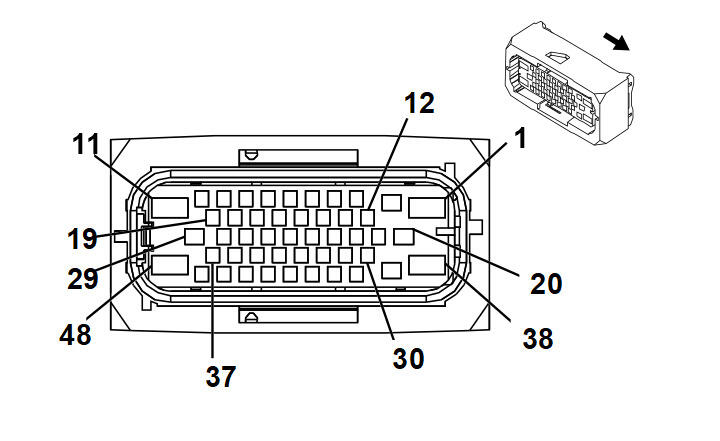

GM3240124

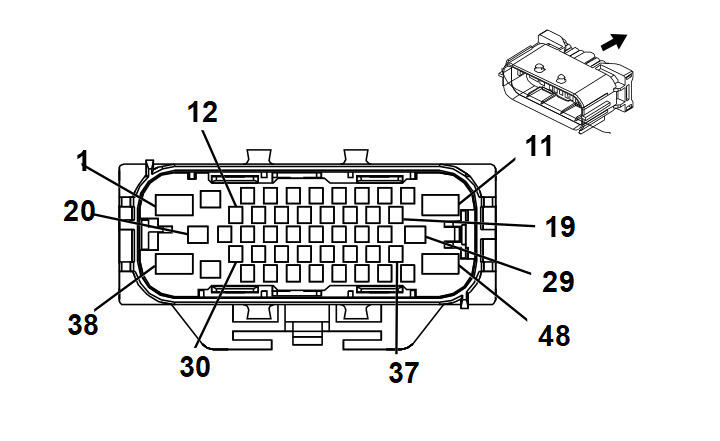

GM3240125
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 13586844
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 48-Way F 1.5 MCP, 2.8 JPT, 6.3 MCP Series, Sealed (GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15513437
  • Service Connector: 13586850
  • Description: 48-Way M 1.6, 2.8, 5.8 Series, Sealed (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-14 (GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III Not Required J-35616-40 (BU) No Tool Required Not Required Not Required Not Required Not Required
IV 13575380 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
V 13576397 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
VI 13580826 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
VII 13581368 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VIII 13581369 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
IX 19119926 J-35616-43 (RD) J-38125-36 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 BK 2050 III - Ground 1 2.5 BK 2050 IX -
2 0.5
0.35		 GY/GN
GY/GN		 70
70		 II
II		 W49+KI6/KI7
X88+KI6/KI7		 RAP Relay Switch Control
RAP Relay Switch Control		 2 0.35 GY/GN 70 VIII -
3 0.35 WH/BN 6815 I X88 Inadvertent Power Control 3 0.35 WH/BN 6815 V X88
4 0.35 WH 3152 I - Lane Departure Warning Indicator Control 4 0.35 WH 3152 V -
5 0.35 GN 4512 I - Wireless Charging System Charge Indicator Control 5 0.35 GN 4512 V -
6 0.35 GY/GN 1561 I X88+F48 AWD Indicator Control 6 0.35 GY/GN 1561 V X88+F48
7 0.35 WH/VT 4108 I X88+URC Driver Mode Switch Signal 7 0.5 WH/VT 4108 IV X88+URC
8 0.35 GY 4109 I X88+URC Driver Mode Switch 5V Reference 8 0.5 GY 4109 IV X88+URC
9 0.35 WH/YE 7557 I W49 LED Ambient Lighting Control 1 9 0.35 WH/YE 7557 V W49
10 0.35 GY/WH 3153 I - Lane Departure Warning Disable Switch Signal 10 0.35 GY/WH 3153 V -
11 - - - - - Not Occupied 11 - - - - -
12 0.35 VT 1301 I - Retained Accessory Power Fuse Control 12 0.35 VT 1301 V -
13 0.35 GN/GY 4120 I - Local Interconnect Network Serial Data Bus 20 13 0.35 GN/GY 4120 V -
14 0.5 YE/BU 2912 I X88 Driver Mode 2 Indicator Control 14 0.5 YE/BU 2912 VI X88
15 0.5 WH/GN 2911 I V92+X88 Driver Mode 1 Indicator Control 15 0.5 WH/GN 2911 VI V92+X88
16 0.5 BU 3554 I - Passive Start Interior Antenna 2 Signal Hi 16 0.35 BU 3554 V -
17 0.5 GY/BK 3555 I - Passive Start Interior Antenna 2 Signal Lo 17 0.35 GY/BK 3555 V -
18 0.35 VT/BK 7553 I - Park Lock Solenoid Control 18 0.35 VT/BK 7553 V -
19 0.5 BN/VT 2914 I - Driver Mode 4 Indicator Control 19 0.5 BN/VT 2914 VI -
20 0.35 BK 1350 II - Ground 20 0.35 BK 1350 VIII -
21 0.35 WH/VT 5905 I - Key Capture/Column Lock Shift Position Signal 21 0.35 WH/VT 5905 V -
22 0.35 GY 157 I - Interior Lamp Control 22 0.35 GY 157 V W49
23 - - - - - Not Occupied 23 - - - - -
24 0.35 BU/BN 1378 I M3W Transmission Shift Selector Display Signal 24 0.35 BU/BN 1378 V M3W
25 - 26 - - - - - Not Occupied 25 - 26 - - - - -
27 0.35 WH 2648 I M3W Transmission Shift Interlock Switch 1 Signal 27 0.35 WH 2648 V M3W
28 0.35 BK/BN 2649 I M3W Transmission Shift Interlock Switch 1 Return 28 0.35 BK/BN 2649 V M3W
29 0.35 WH/GN 2654 II - Transmission Shift Interlock Switch 2 Signal 29 0.35 WH/GN 2654 VIII M3W
30 0.35 BK/GN 2655 I M3W Transmission Shift Interlock Switch 2 Return 30 0.35 BK/GN 2655 V M3W
31 0.35 VT/GN 2629 I M3W Transmission Shifter Park Position Switch 1 Signal 31 0.35 VT/GN 2629 V -
32 0.35 BK/GY 2630 I M3W Transmission Shifter Park Position Switch 1 Return 32 0.35 BK/GY 2630 V M3W
33 0.35 WH/GY 2631 I M3W Transmission Shifter Park Position Switch 2 Signal 33 0.35 WH/GY 2631 V M3W
34 0.35 BK/VT 2632 I M3W Transmission Shifter Park Position Switch 2 Return 34 0.35 BK/VT 2632 V -
35 0.35 BU/RD 2646 I M3W Transmission Shifter Position Sensor 1 Voltage Reference 35 0.35 BU/RD 2646 V M3W
36 0.35 BK/BU 2647 I M3W Transmission Shifter Position Sensor 1 Low Reference 36 0.35 BK/BU 2647 V M3W
37 0.35 YE/BN 2644 I M3W Transmission Shifter Position Sensor 1 Alpha Signal 37 0.35 YE/BN 2644 V M3W
38 - - - - - Not Occupied 38 - - - - -
39 0.35 GN/RD 2635 II - Transmission Shifter Position Sensor 2 Voltage Reference 39 0.5 GN/RD 2635 VII M3W
40 0.35 BK/GN 2636 I M3W Transmission Shifter Position Sensor 2 Low Reference 40 0.35 BK/GN 2636 V M3W
41 0.35 YE/BU 2633 I M3W Transmission Shifter Position Sensor 2 Alpha Signal 41 0.35 YE/BU 2633 V M3W
42 0.35 VT/BU 2634 I - Transmission Shifter Position Sensor 2 Beta Signal 42 0.35 VT/BU 2634 V -
43 - 45 - - - - - Not Occupied 43 - 45 - - - - -
46 0.35 VT/BN 2645 I - Transmission Shifter Position Sensor 1 Beta Signal 46 0.35 VT/BN 2645 V -
47 - 48 - - - - - Not Occupied 47 - 48 - - - - -
