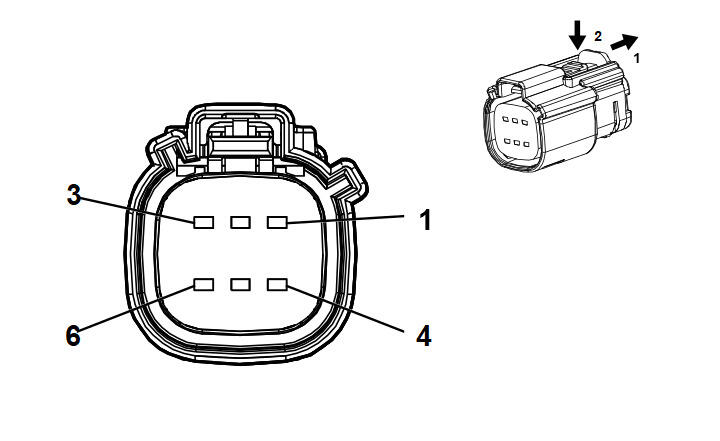

X110 Forward Lamp Harness to Left Headlamp Harness (X88+T4F+CZ3)
|
|
- |
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 33472-0670
- Service Connector: 19366644
- Description: 6-Way F 150 MX Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
BK |
150 |
II |
- |
Ground |
1 |
1 |
BK |
150 |
III |
- |
| 2 |
1 |
YE |
712 |
II |
- |
Left Headlamp Low Beam Control |
2 |
1 |
YE |
712 |
III |
- |
| 3 |
1 |
GN |
11 |
II |
- |
Headlamp High Beam Control |
3 |
1 |
GN |
11 |
III |
- |
| 4 |
1.5 |
BK |
150 |
I |
- |
Ground |
4 |
1.5 |
BK |
150 |
III |
- |
| 5 |
0.5 |
YE/GY |
57 |
II |
- |
Left Cornering Lamp Control |
5 |
0.5 |
YE/GY |
57 |
III |
- |
| 6 |
0.5 |
VT/GY |
709 |
II |
- |
Left Park Lamp Control |
6 |
0.5 |
VT/GY |
709 |
III |
- |
