Home >> Chevrolet >> 2018 >> Traverse LS, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Interior Lights Wiring Schematics >> Instrument Panel Compartment and Overhead Lamps

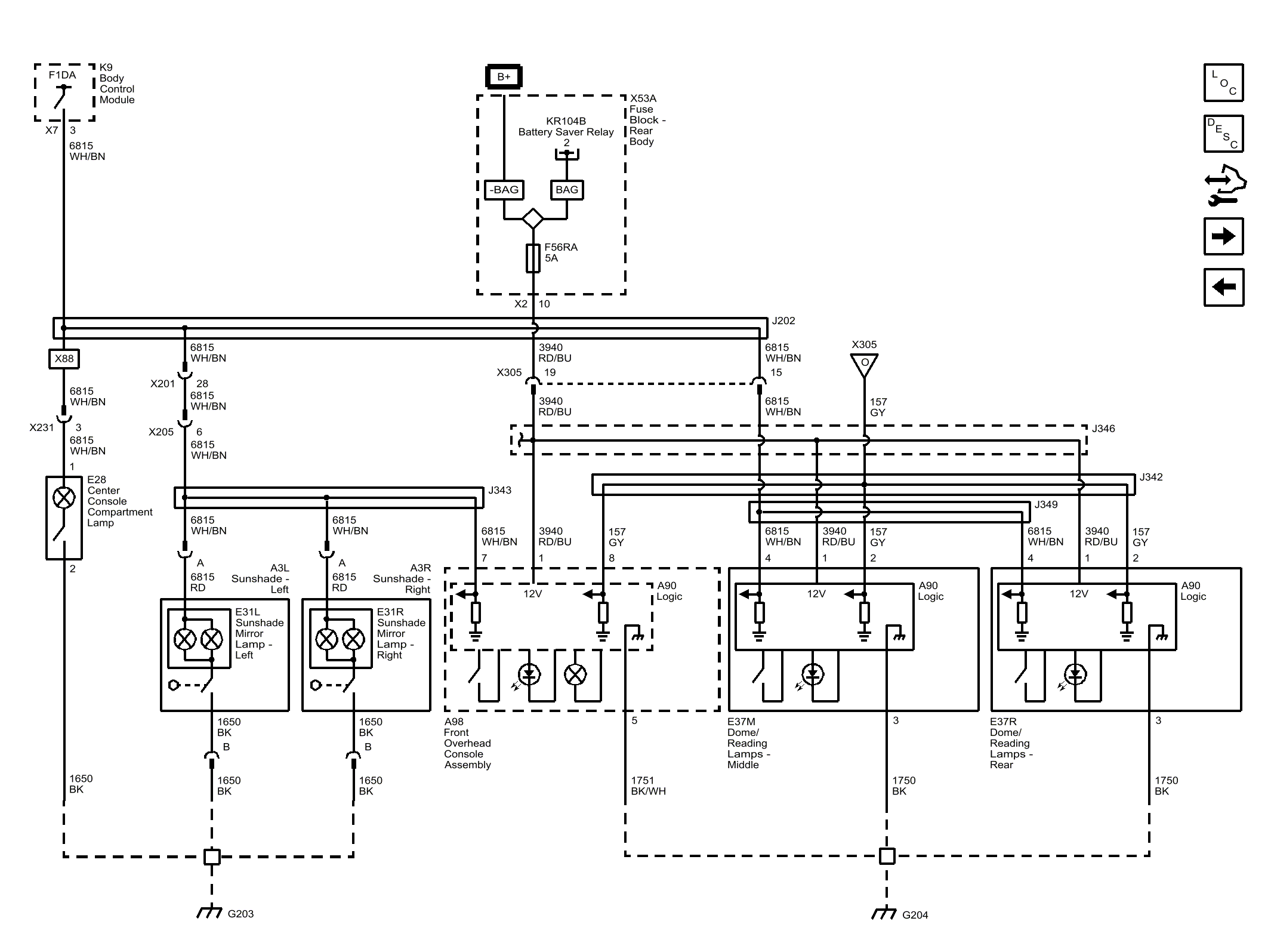

Instrument Panel Compartment and Overhead Lamps

GM4754513
