Home >> Chevrolet >> 2018 >> Traverse LS, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Interior Lights Dimming Wiring Schematics >> Window Switches and Controls Serial Dimming

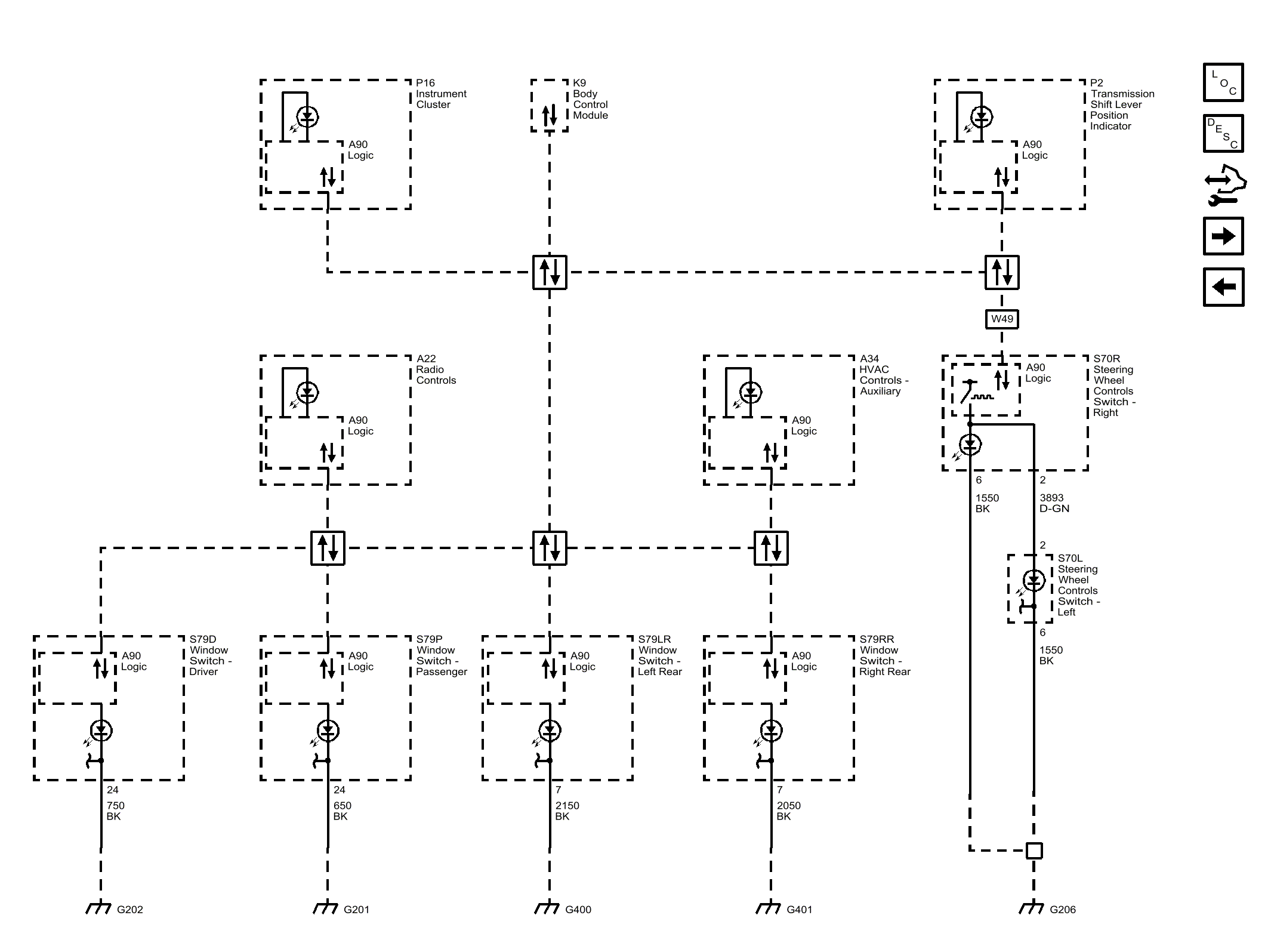

Window Switches and Controls Serial Dimming

GM4754528
