Home >> Chevrolet >> 2018 >> Traverse LS, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Exterior Lights Wiring Schematics >> Rear Turn Signals/Stop and License Lamps

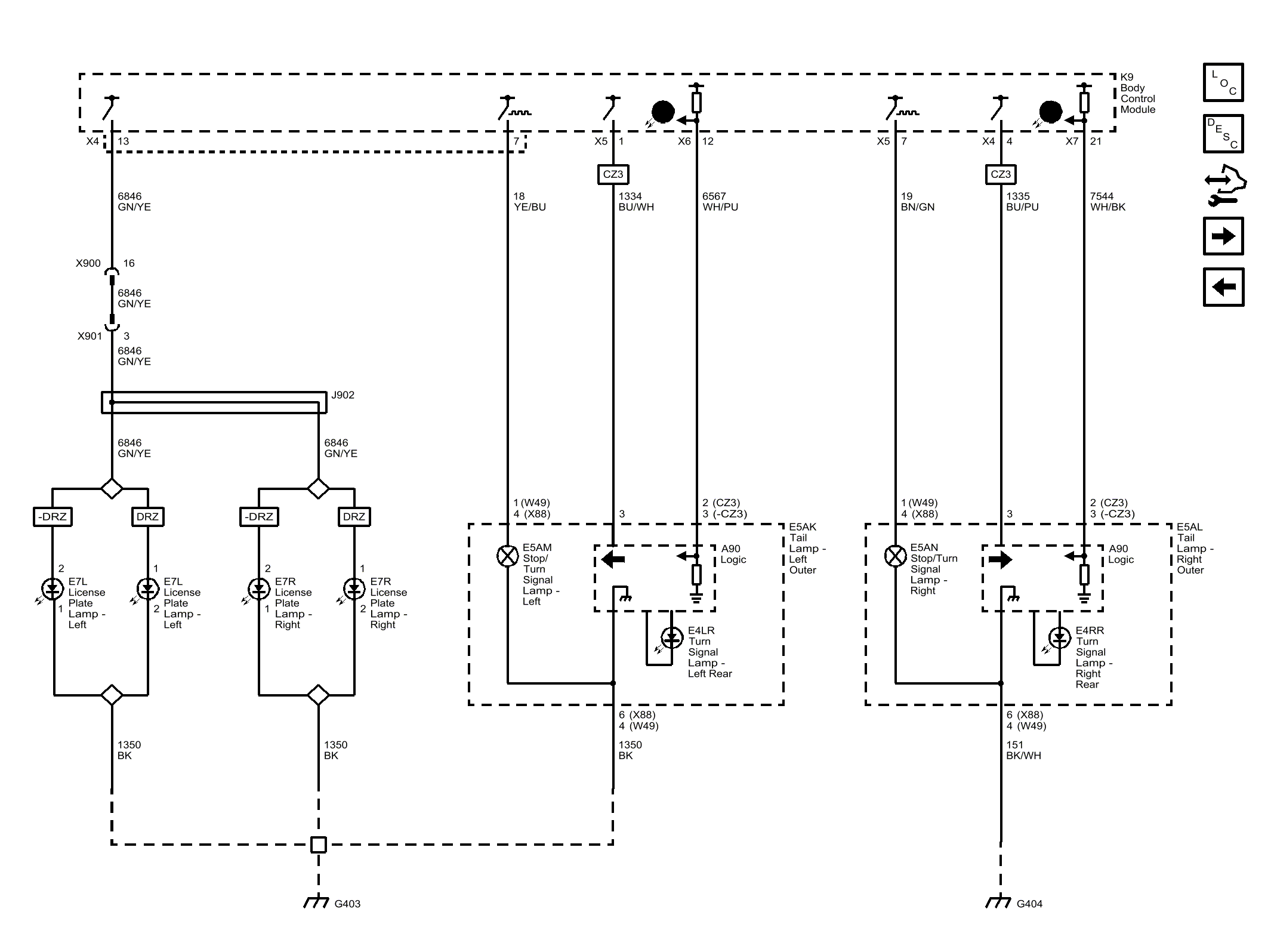

Rear Turn Signals/Stop and License Lamps

GM4754502
