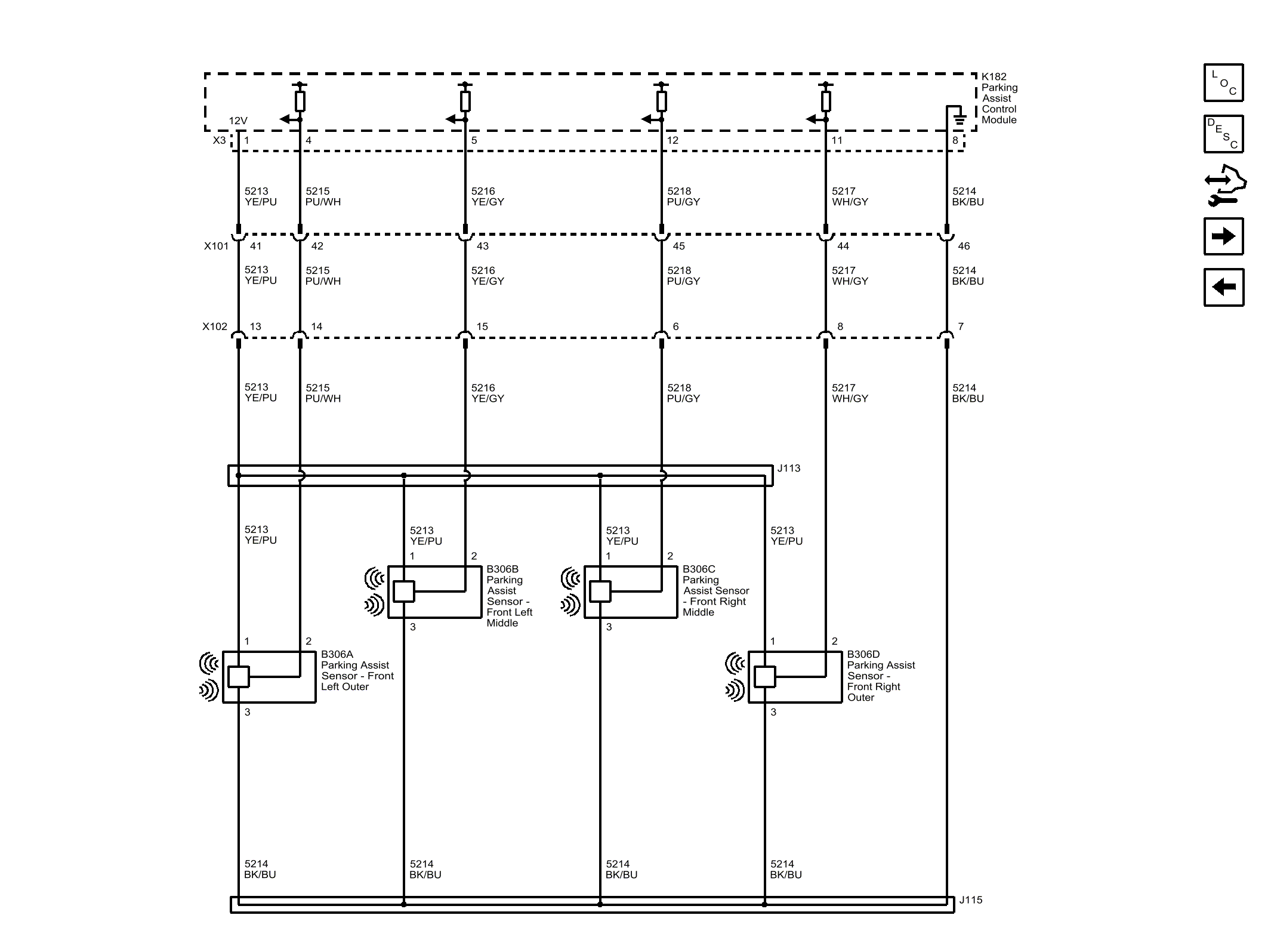

Home >> Chevrolet >> 2018 >> Traverse LS, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Parking Assistance Systems >> Schematic Wiring Diagrams >> Parking Assistance Systems Wiring Schematics >> Park Assist - Front Sensors (UD5)
