Automatic Level Control Air Compressor Inlet Tube Replacement

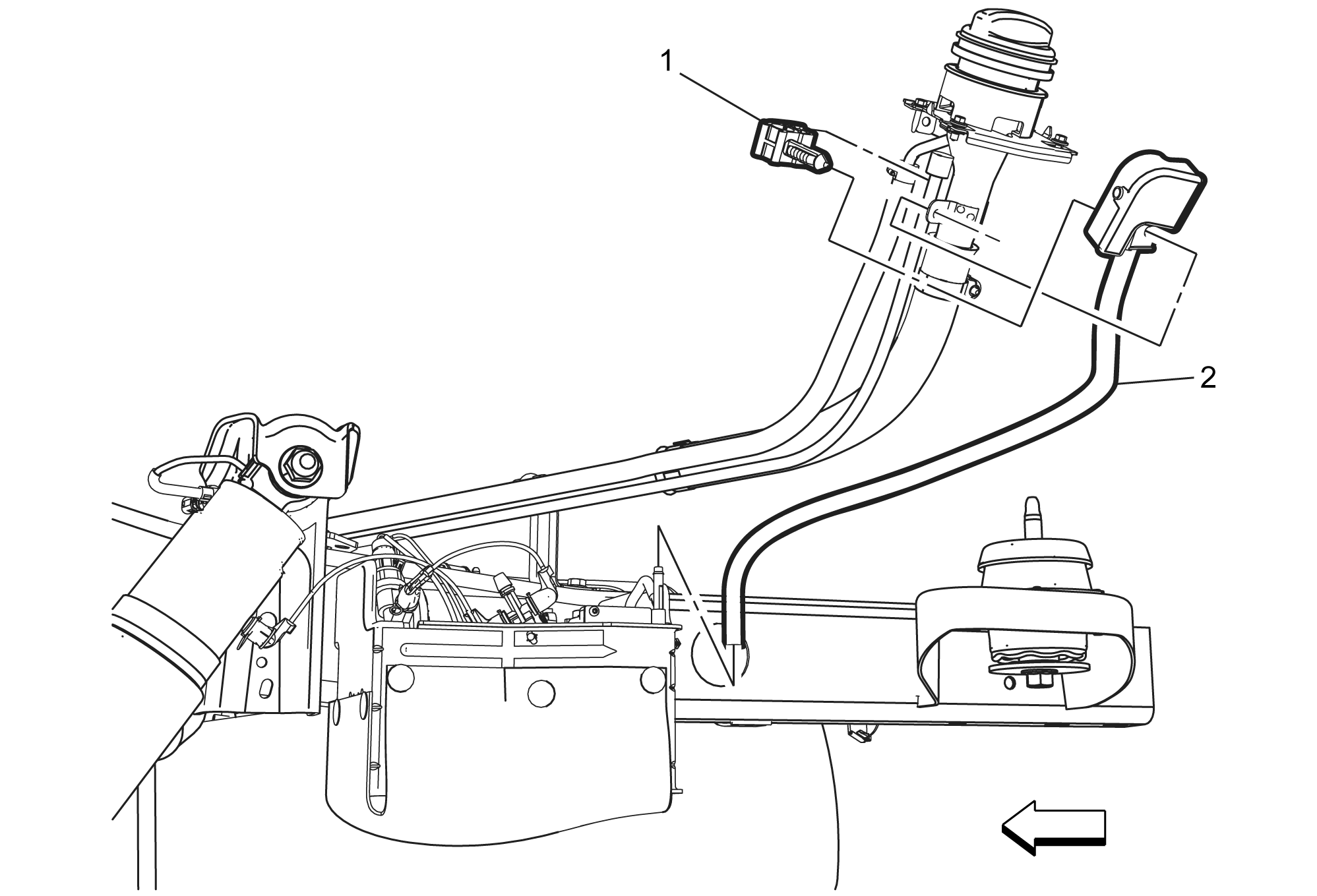

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Automatic Level Control Inlet Tube Clip
NOTE:
Replace the clip after removing.
|
| 2 | Automatic Level Control Inlet Tube
NOTE:
Clean the area around the inlet tube to compressor fitting, so that debris does not enter the compressor.
|
