3rd Row Seat Belt Buckle Replacement (40% Bench)

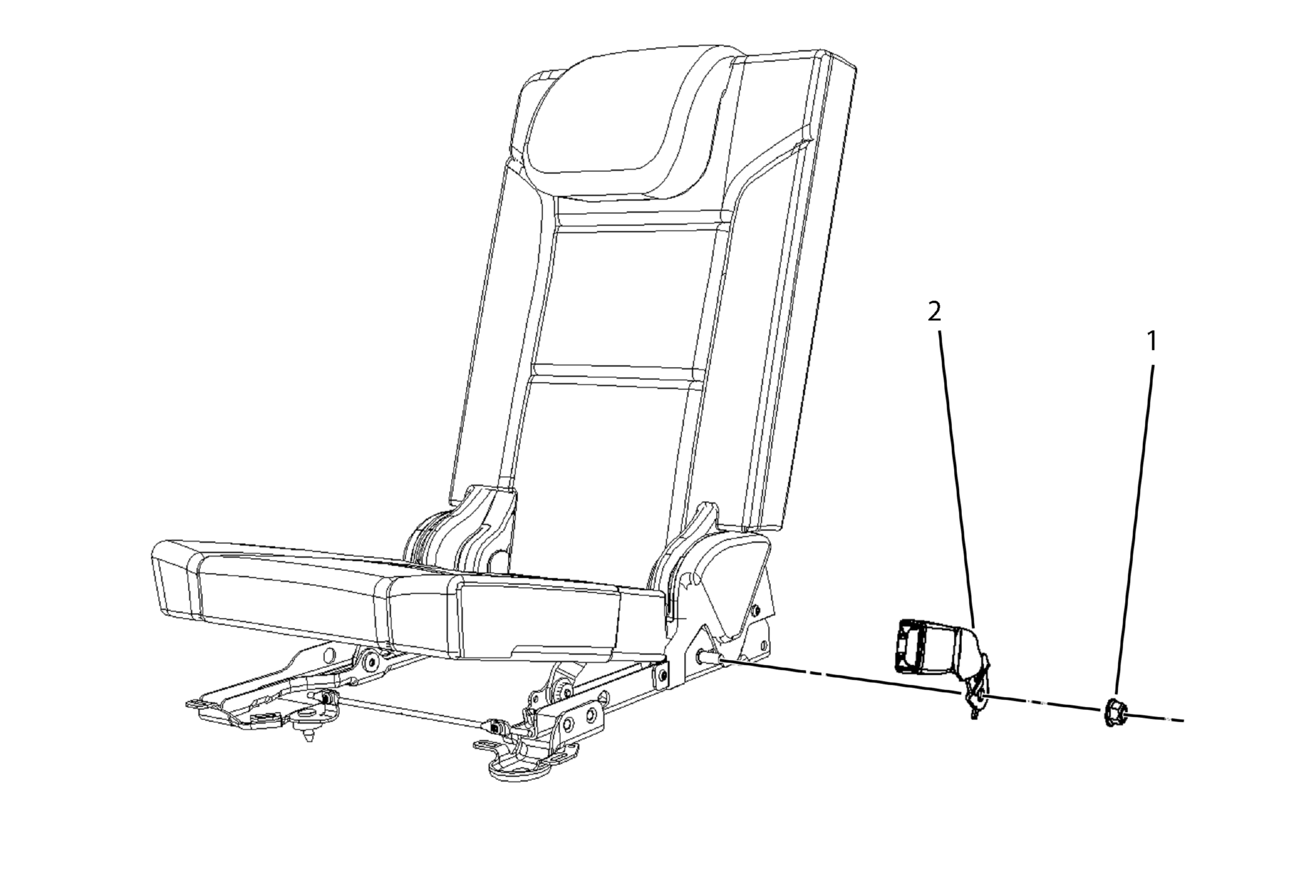

Fig 1: 3rd Row Seat Belt Buckle (40% Bench)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Separate the 3rd row seat. Refer to Rear Seat Separation (3rd Row Power with AS8)Rear Seat Separation (3rd Row Manual with ARN)Rear Seat Separation .
1	3rd Row Rear Seat Belt Buckle Nut CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	3rd Row Rear Seat Belt Buckle Procedure  Inset the tab on the seat belt buckle anchor into the slot on the 3rd row seat frame.
