Vehicle Certification, Tire Placard, Anti-Theft, And Service Parts ID Label

Fig 1: Vehicle Certification Label

Courtesy of GENERAL MOTORS COMPANY

Vehicle Certification Label

Callout	Description
The vehicle certification label is attached to the center pillar (B-pillar) and displays the following assessments:
1	Logo
2	Name of Manufacturer
3	Maximum Gross Vehicle Weight Rating (GVWR)
4	Maximum Gross Axle Weight Rating (GAWR) - Front
5	Final Date of Manufacture (Month and Year MM/YY) Date of manufacture callout C is to reflect the date that the vehicle is counted as built. In those cases where a replacement label is needed, the replacement label should reflect the actual build date not the date of replacement.
6	Maximum Gross Axle Weight Rating (GAWR) - Rear
7	Certification Statement
8	Vehicle Class Type (Pass Car, etc.)
9	Payload
10	Tire Pressure, Front, Rear, and Spare (Cold)
11	Original Tire Rim Size
12	Tire Speed Rating
13	Original Equipment Tire Size
14	Engineering Model Number
15	Vehicle Identification Number (VIN)

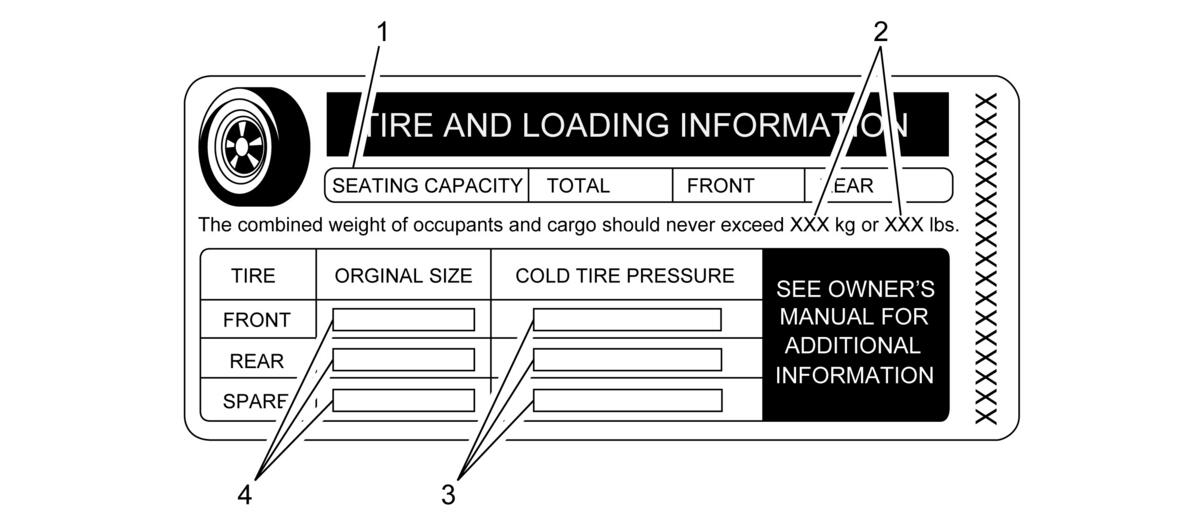

Fig 2: Tire Placard

Courtesy of GENERAL MOTORS COMPANY

Tire Placard

Callout	Description
The tire placard is attached to the center pillar (B-pillar) and displays the following assessments:
1	Specified Occupant Seating Positions
2	Maximum Vehicle Capacity Weight
3	Tire Pressure, Front, Rear, and Spare (Cold)
4	Original Equipment Tire Size

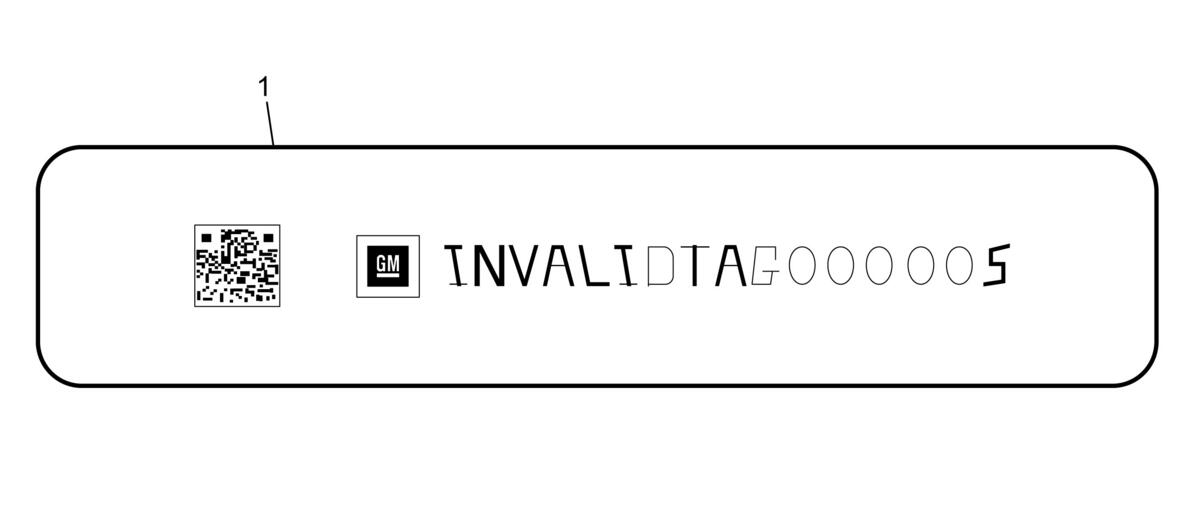

Fig 3: Anti-Theft Label

Courtesy of GENERAL MOTORS COMPANY

Anti-Theft Label

Callout	Description
1	The Federal law requires that General Motors label certain body parts on this vehicle with the VIN. The purpose of the law is to reduce the number of motor vehicle thefts by helping in the tracing and recovery of parts from stolen vehicles. Labels are permanently affixed to an interior surface of the part. The label on the replacement part contains the letter R, the manufacturer's logo, and the DOT symbol. The anti-theft label must be covered before any painting, rustproofing procedures, and uncovered after the procedures. Failure to follow the precautionary steps may result in liability for violation of the Federal Vehicle Theft Prevention Standard and possible suspicion to the owner that the part was stolen.

Callout

Description

The Federal law requires that General Motors label certain body parts on this vehicle with the VIN. The purpose of the law is to reduce the number of motor vehicle thefts by helping in the tracing and recovery of parts from stolen vehicles.
Labels are permanently affixed to an interior surface of the part. The label on the replacement part contains the letter R, the manufacturer's logo, and the DOT symbol.
The anti-theft label must be covered before any painting, rustproofing procedures, and uncovered after the procedures. Failure to follow the precautionary steps may result in liability for violation of the Federal Vehicle Theft Prevention Standard and possible suspicion to the owner that the part was stolen.

Service Parts ID Label

This label is located on the inside of the glove box and contains the Vehicle Identification Number (VIN), the model designation, the paint information, production options, and special equipment. If there is no label, there is a barcode on the certification label on the center (B-pillar) to scan for this same information.
