Manifold Absolute Pressure Sensor Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

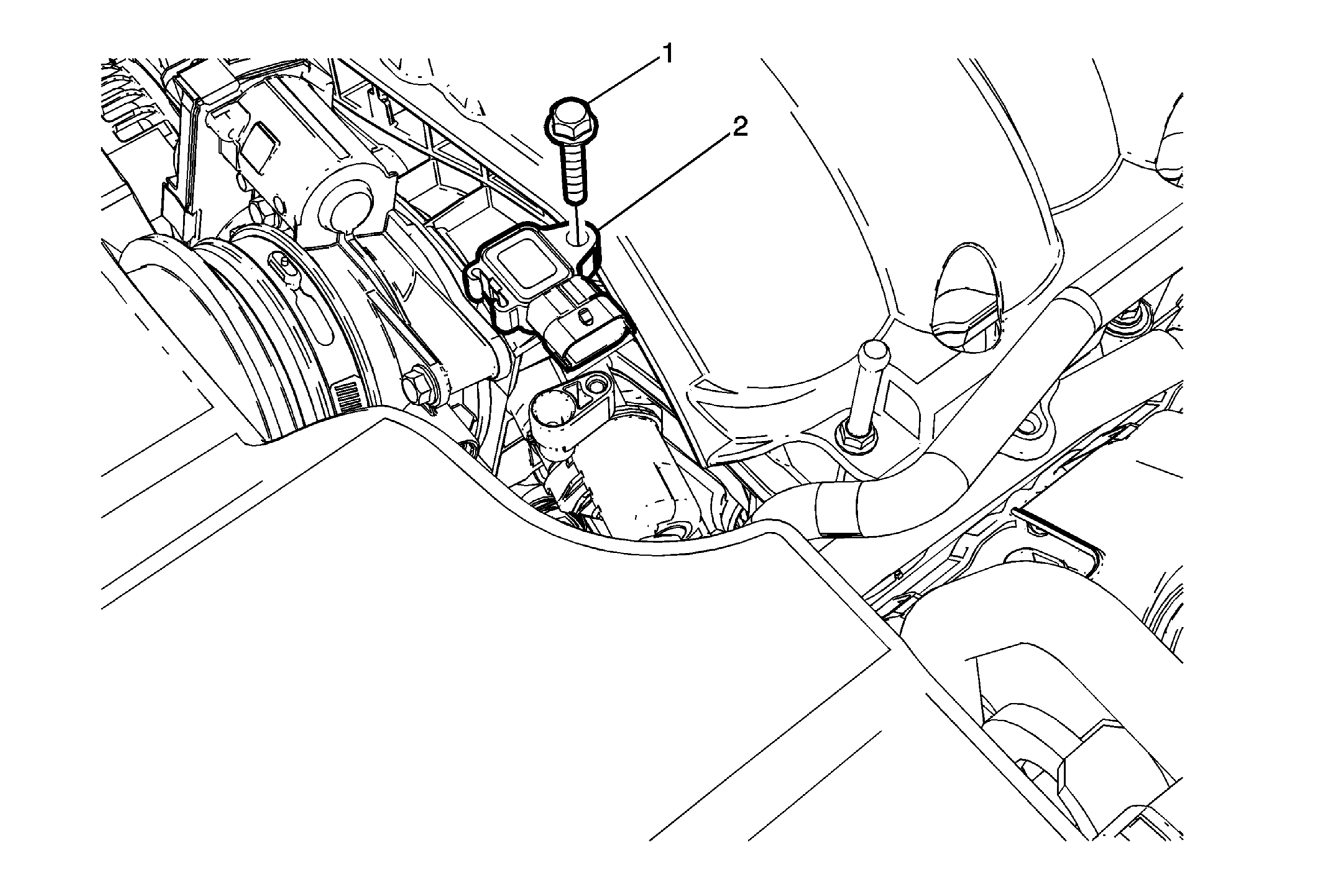

| Callout | Component Name |
|---|---|
| Preliminary Procedure If equipped Intake Manifold Cover Replacement |
|
| 1 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) |
| 2 | Manifold Absolute Pressure Sensor Procedure Disconnect the manifold absolute pressure sensor electrical wiring harness connector. |
