Heated Oxygen Sensor Replacement - Bank 2 Sensor 1

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

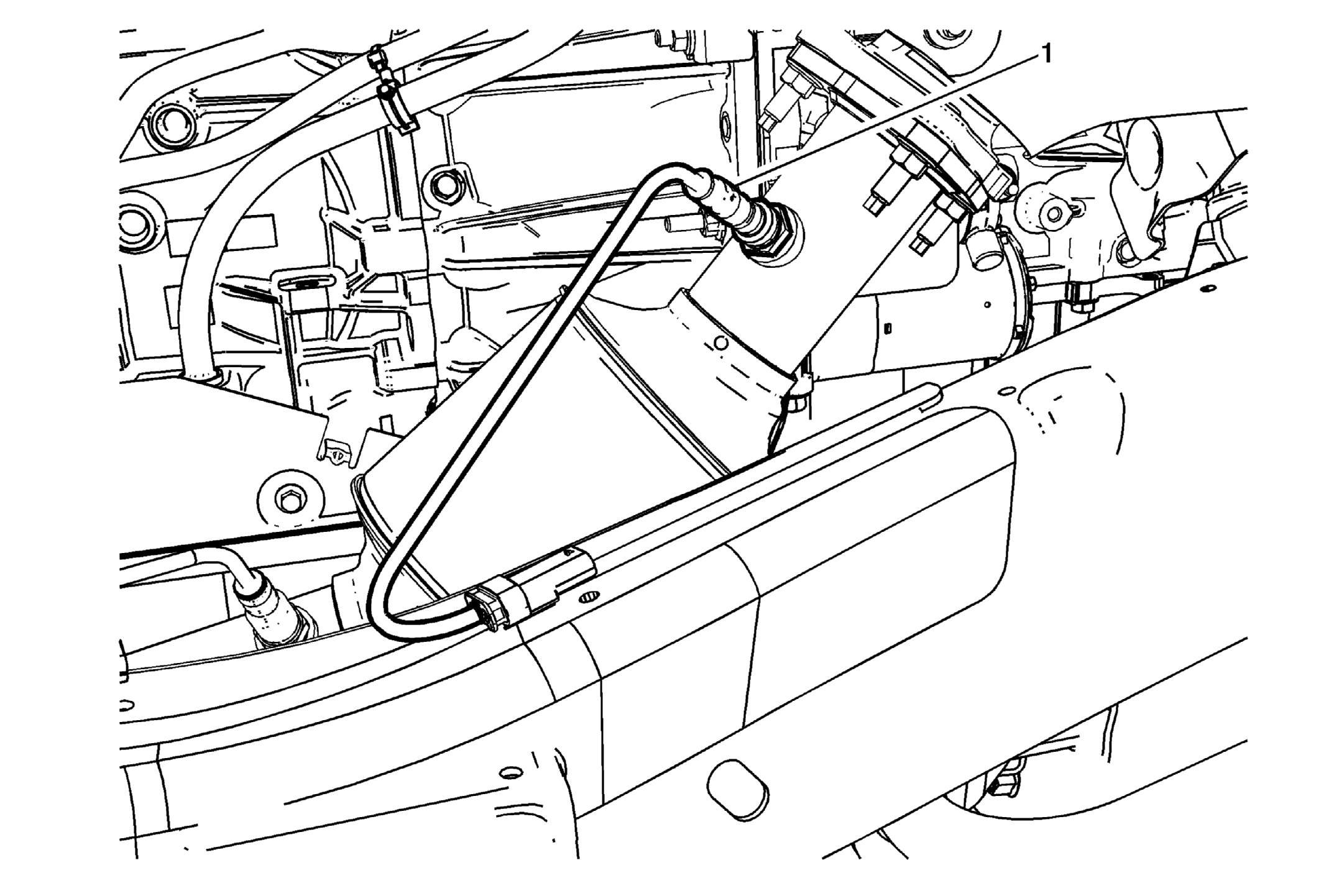

Fig 1: Heated Oxygen Sensor - Bank 2 Sensor 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement - Right Side (Cadillac)Front Wheelhouse Liner Replacement - Right Side (Chevrolet)Front Wheelhouse Liner Replacement - Right Side (GMC)
1	Heated Oxygen Sensor CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution . CAUTION: Refer to Heated Oxygen Sensor Resistance Learn Reset Caution . Procedure Disconnect the heated oxygen sensor electrical connector. If reinstalling the old sensor, coat the threads with anti-seize compound. If replacing, perform the HO2S heater resistance learned values reset. HO2S Heater Resistance Learned Values Reset If replacing, perform the HO2S heater learn. HO2S Heater Learn NOTE: A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Tighten 42 N.m (31 lb ft)

Callout

Component Name

Preliminary Procedure
Front Wheelhouse Liner Replacement - Right Side (Cadillac)Front Wheelhouse Liner Replacement - Right Side (Chevrolet)Front Wheelhouse Liner Replacement - Right Side (GMC)

Heated Oxygen Sensor

CAUTION:

Refer to Component Fastener Tightening Caution .

CAUTION:

Refer to Heated Oxygen and Oxygen Sensor Caution .

CAUTION:

Refer to Heated Oxygen Sensor Resistance Learn Reset Caution .

Procedure

Disconnect the heated oxygen sensor electrical connector.
If reinstalling the old sensor, coat the threads with anti-seize compound.
If replacing, perform the HO2S heater resistance learned values reset. HO2S Heater Resistance Learned Values Reset
If replacing, perform the HO2S heater learn. HO2S Heater Learn

NOTE:

A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation.

Tighten
42 N.m (31 lb ft)
