Fuel Tank Filler Hose Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

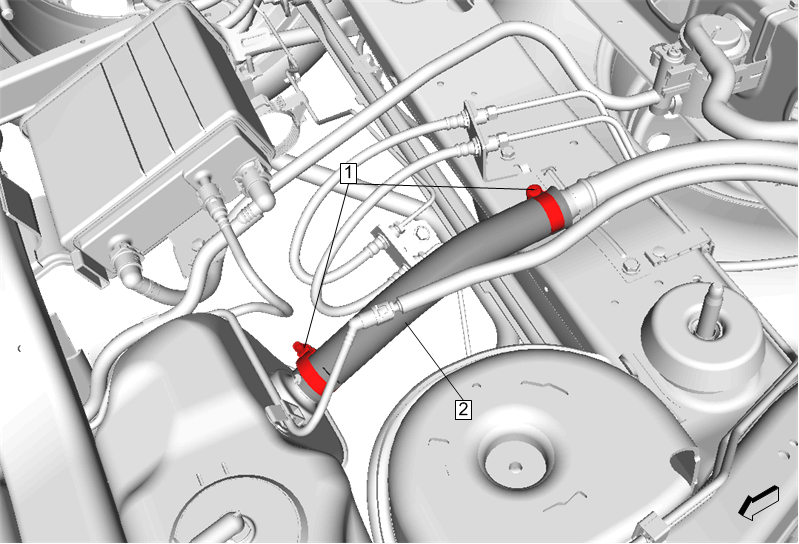

Fig 1: Fuel Tank Filler Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Fuel Tank Filler Hose Procedure If screen is in old hose, screen must be removed from old hose and installed in new hose if screen is not present in new hose.
