Fuel Pump Cover Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

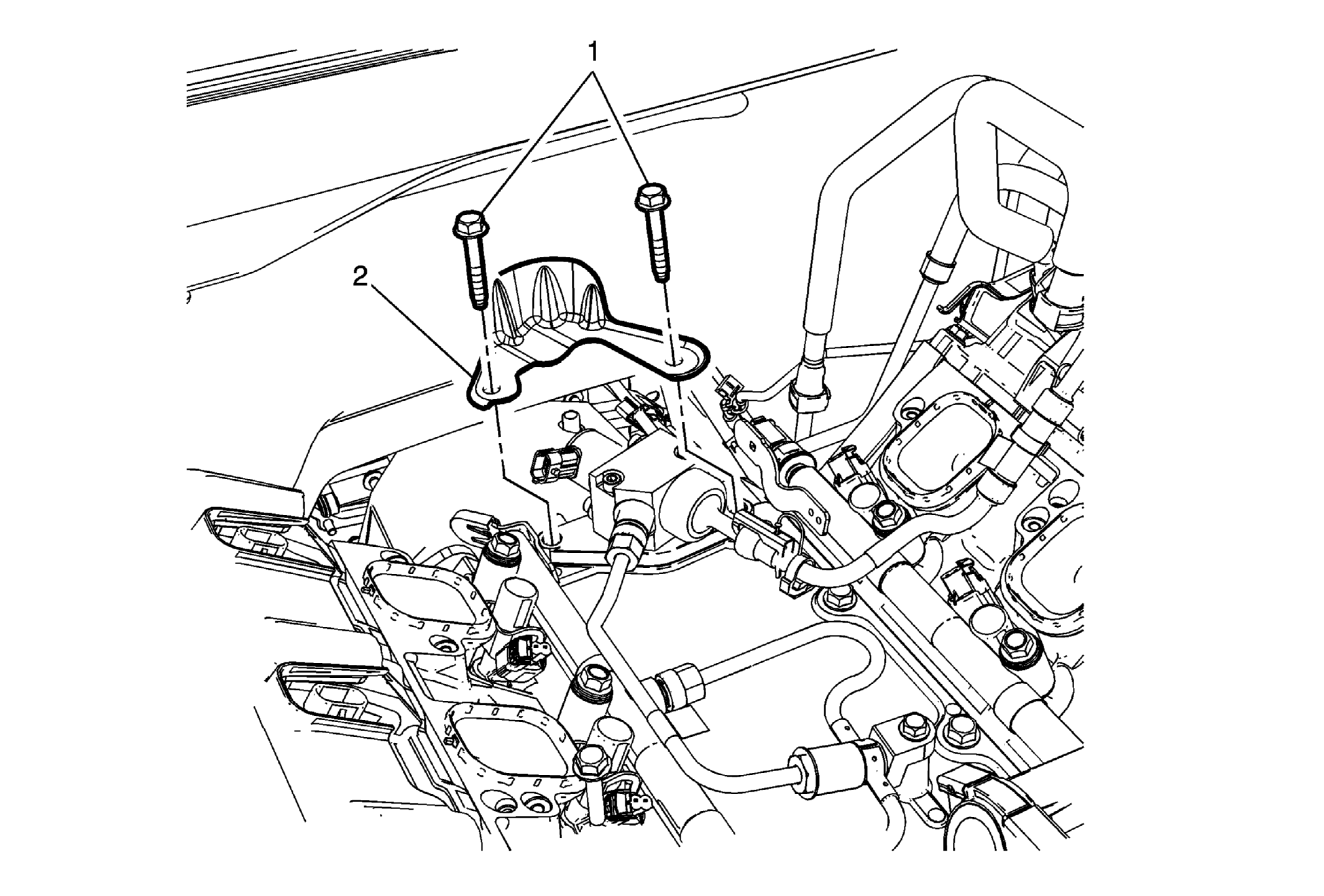

| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Pump Insulator Replacement |
|
| 1 | Fuel Pump Bolt
CAUTION:
Refer to Fastener Caution .
CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage Tighten 25 N.m (18 lb ft) |
| 2 | Fuel Pump Cover Procedure Slide the fuel pump cover rearward to remove it from the fuel pump.
NOTE:
A NEW fuel pump gasket and a NEW fuel feed intermediate pipe should be installed if the fuel pump is removed from the engine. |
