Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

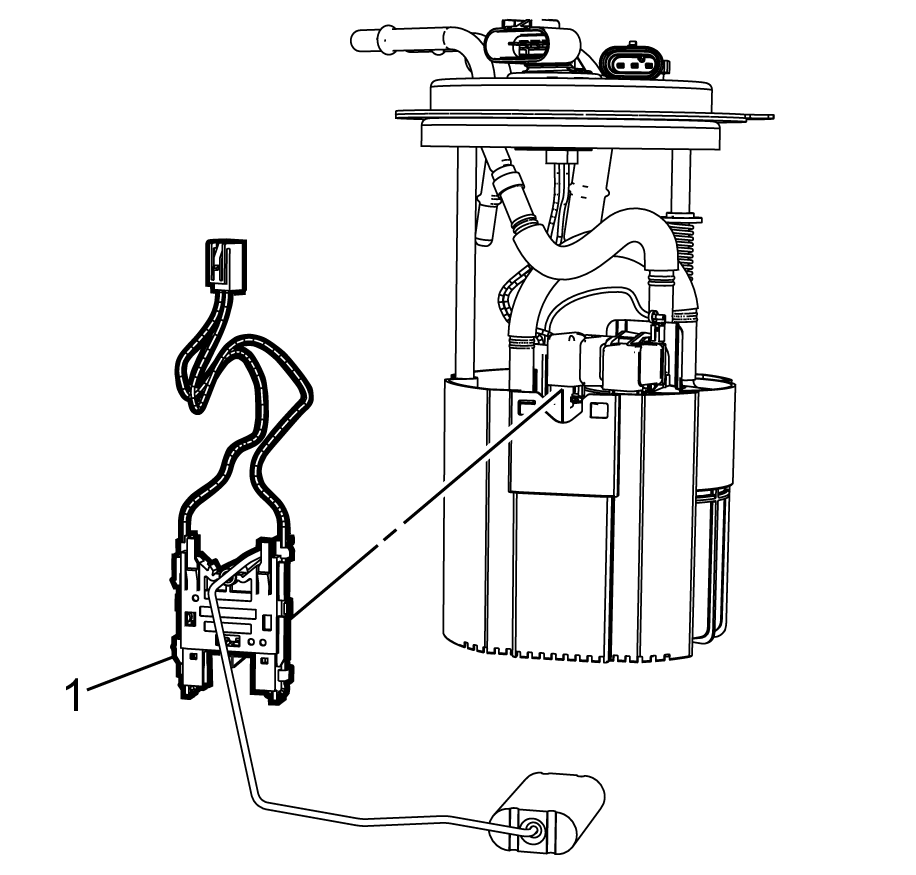

- Install the fuel level sensor (1) to the module.

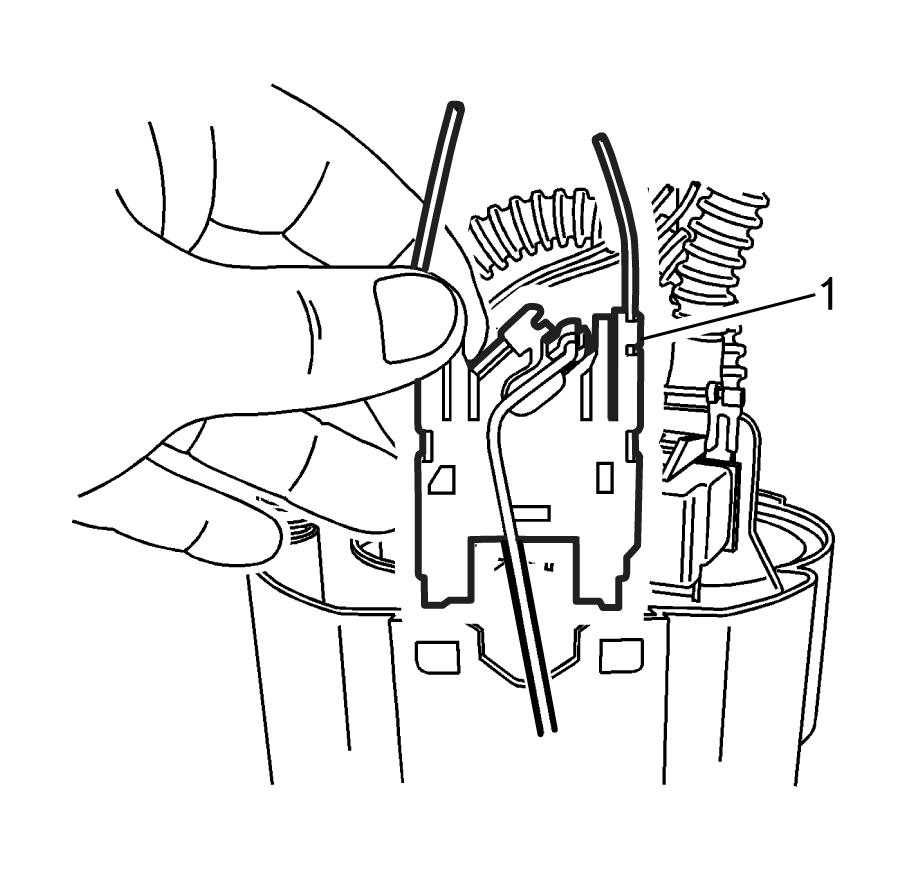

- Position and slide the fuel level sensor (1) down.
- Ensure that the level sensor tangs (2) are engaged at the bucket.
- Ensure fuel level sensor wires are wrapped once around the fuel pump module wires prior to engaging retainer to module cover.
- Install the fuel level sensor electrical connector to the module cover.
- Ensure that the retainer (1) engaged the module cover.
- Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (SWB) Fuel Tank Fuel Pump Module Replacement (LWB) .
