Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

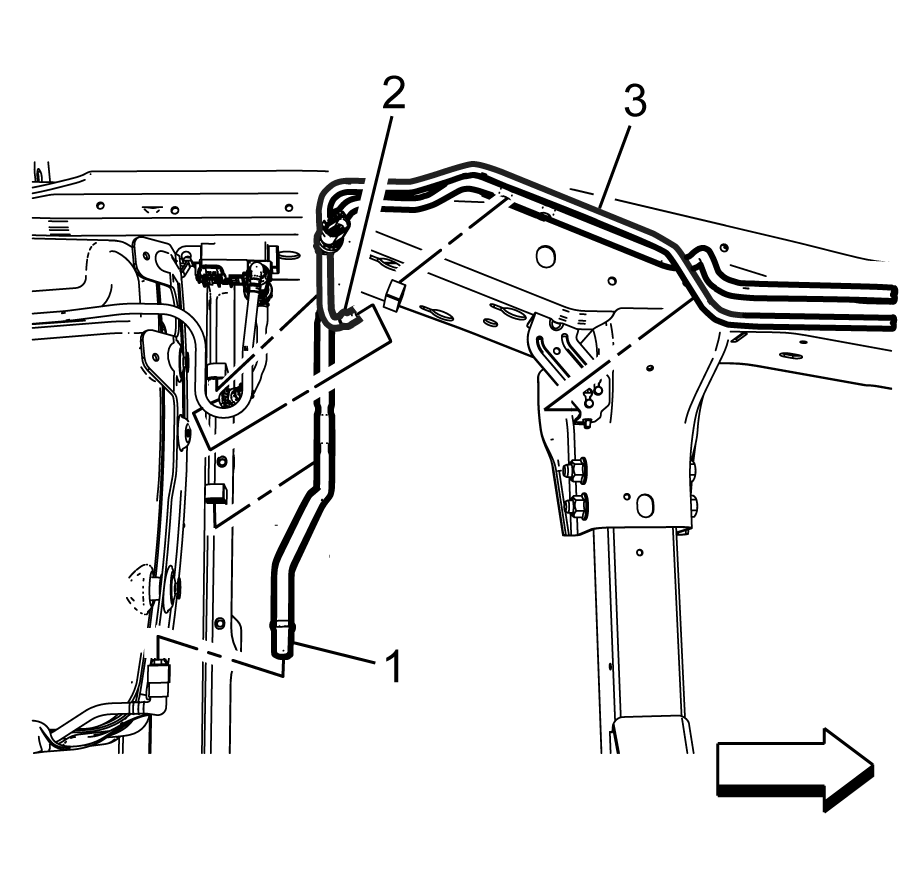

    Fig 1: EVAP hose
    GM3637262Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed and EVAP hose (3) to the vehicle and retainers.
  2. Connect the fuel pressure sensor electrical connector.
  3. Connect the fuel hose (2) to the fuel pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Connect the EVAP hose (1) to the EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .

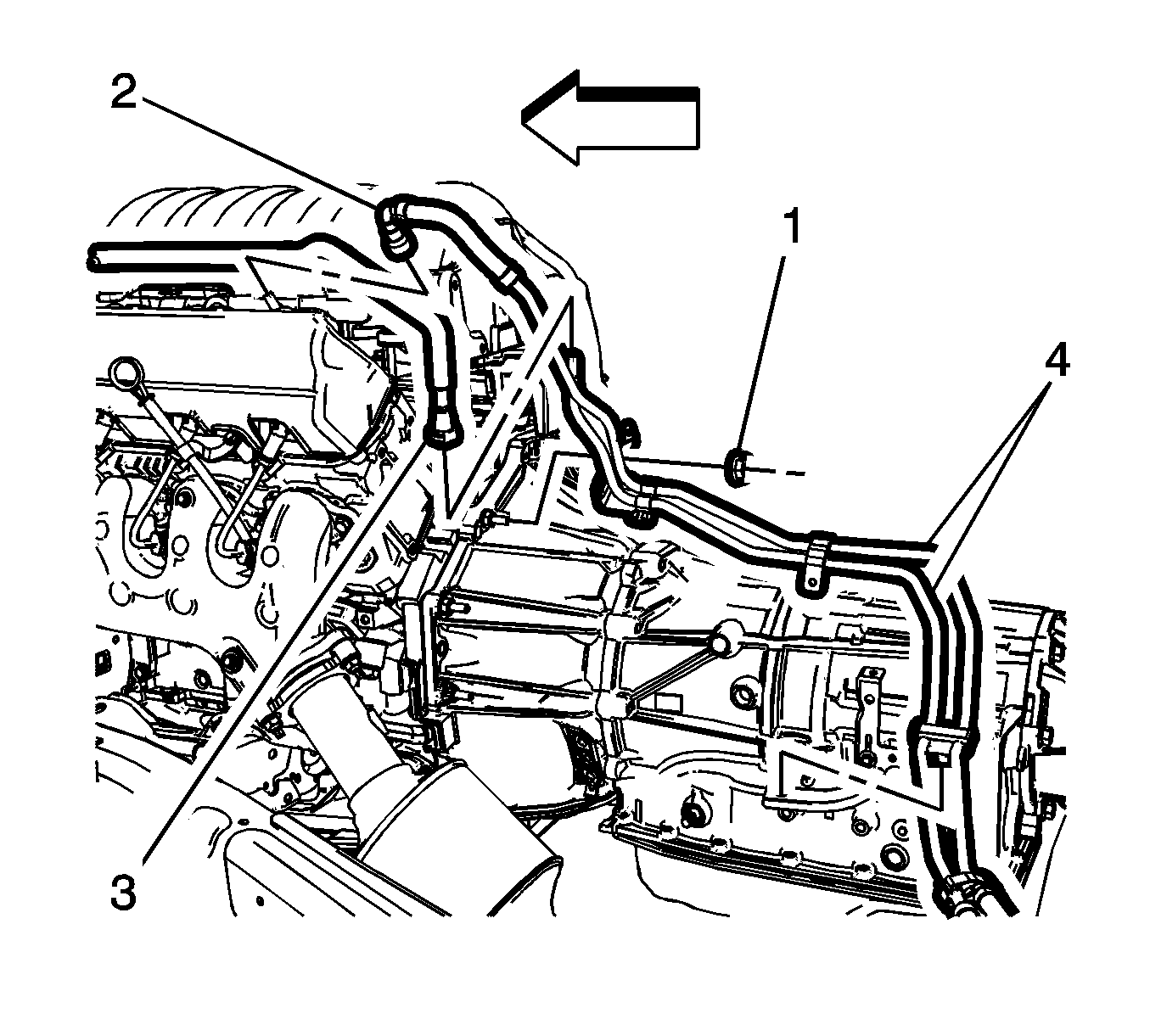

    5. Fig 2: Fuel Feed And EVAP Hose Nut
    GM3273722Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel feed and EVAP hose (4) to the retainers.
  6. Connect the EVAP hose (3) to the EVAP canister purge tube. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Connect the fuel hose (2) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
    8. CAUTION:

    Refer to Fastener Caution .

  8. Install the fuel feed and EVAP hose nut (1) and torque to 25 N.m (18 lb ft).
  9. Raise the transmission back to it original position. Transmission Replacement , for the 6L80 or Transmission Replacement for the 8L90.
