Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: EVAP Canister Vent Solenoid Retainer
    GM2759400Courtesy of GENERAL MOTORS COMPANY
  1. Install the EVAP canister vent solenoid.
  2. Slide the EVAP canister vent solenoid onto the bracket until the retainer (1) engages the clip.
    3. Fig 2: EVAP Canister Vent Solenoid Quick Connect Fitting
    GM2759395Courtesy of GENERAL MOTORS COMPANY
  3. Connect the EVAP canister vent solenoid quick connect fitting (1) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .

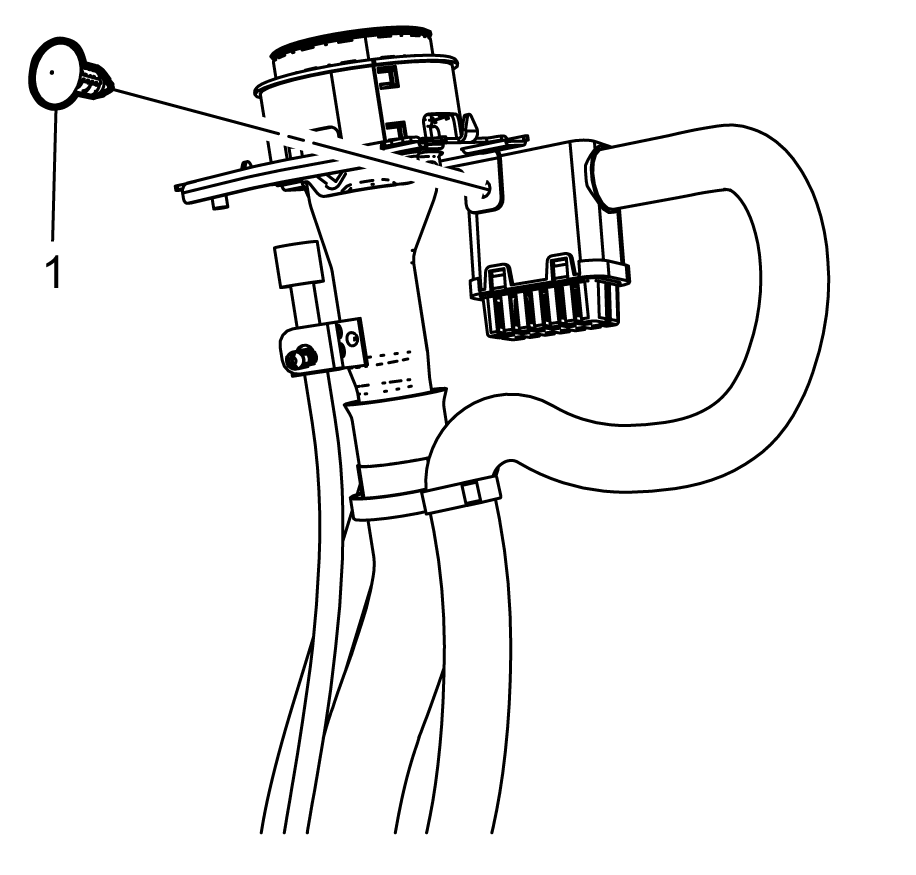

    4. Fig 3: Push Pin
    GM3637954Courtesy of GENERAL MOTORS COMPANY
  4. Connect the solenoid vent filter to the filler pipe with a new push pin (1).
    5. Fig 4: 2 Tie Straps
    GM2759398Courtesy of GENERAL MOTORS COMPANY
  5. Install 2 tie straps (1) to hold the solenoid vent line to the fuel fill pipe hose.
    6. Fig 5: View Of EVAP Canister Vent Solenoid Electrical Connector
    GM1706529Courtesy of GENERAL MOTORS COMPANY
  6. Connect the chassis wiring harness electrical connector (1) to the EVAP canister vent solenoid.
  7. Lower the vehicle.
  8. Install the spare tire and wheel assembly.
