Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

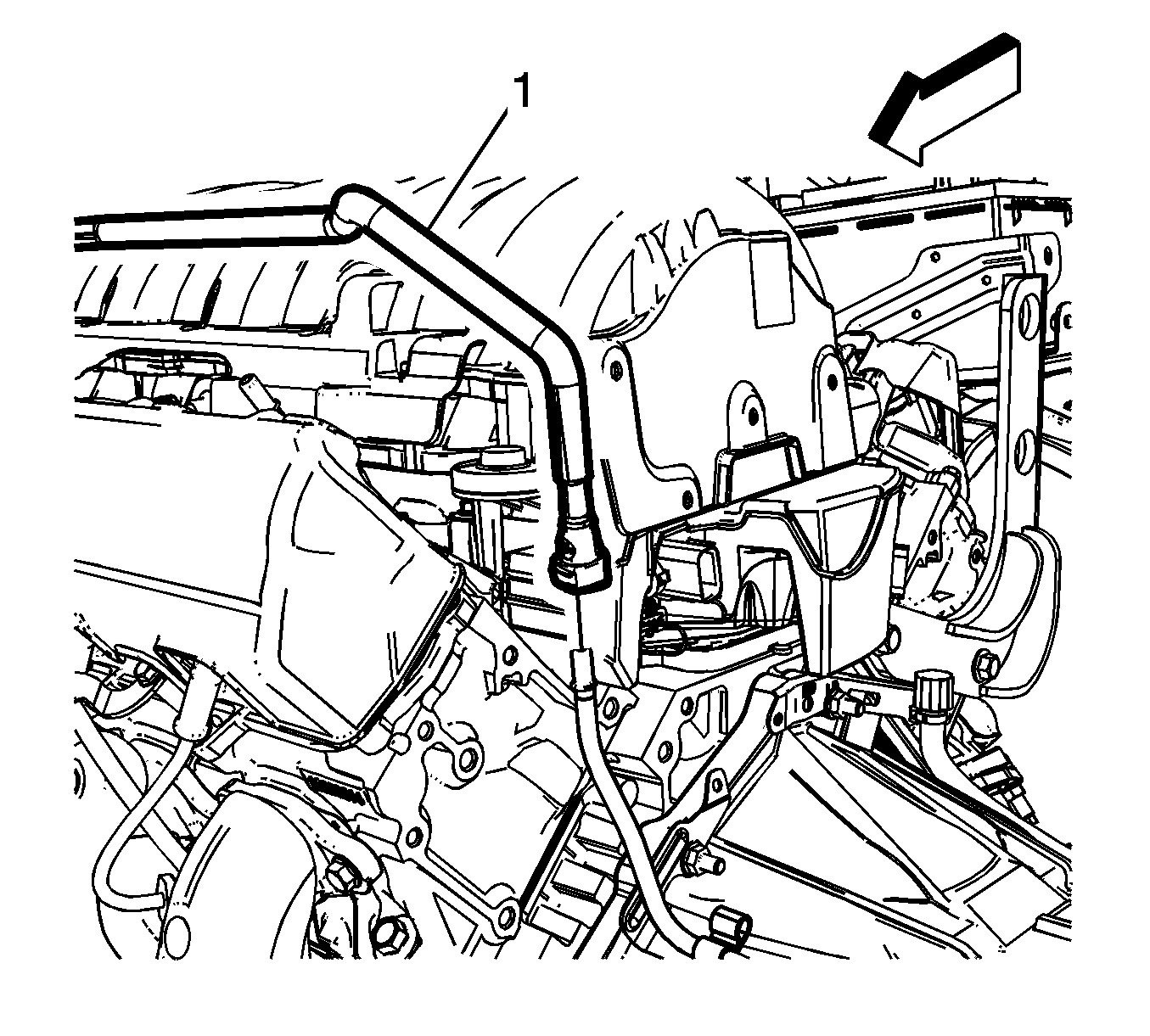

    Fig 1: EVAP Canister Purge Tube
    GM3267082Courtesy of GENERAL MOTORS COMPANY
  1. Install the EVAP canister purge tube (1) to the vehicle.
  2. Connect the EVAP canister purge tube (1) to the EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .

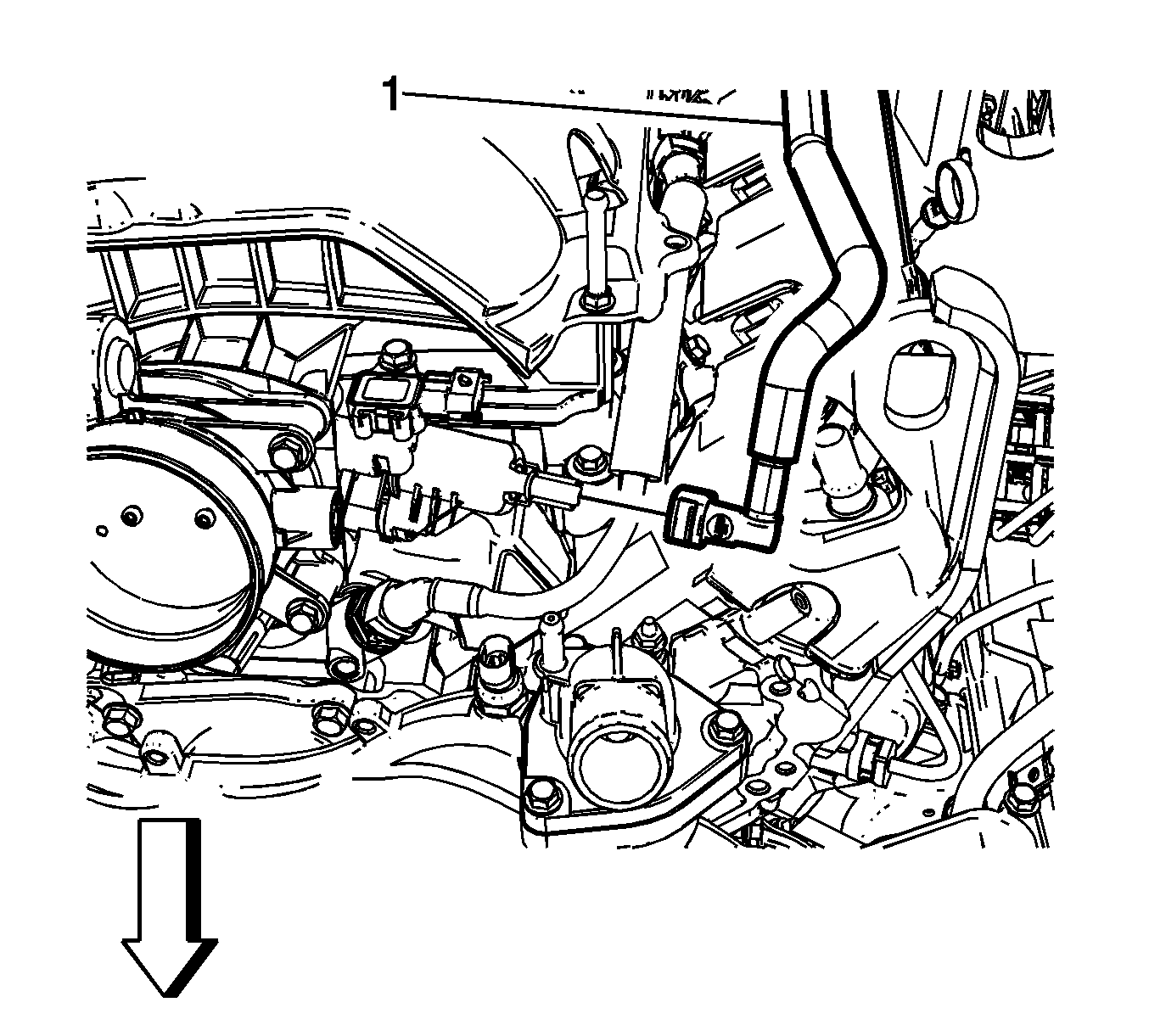

    3. Fig 2: EVAP Canister Purge Tube
    GM3267064Courtesy of GENERAL MOTORS COMPANY
  3. Connect the EVAP canister purge tube (1) to the EVAP canister solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
