Evaporative Emission Canister Purge Solenoid Valve Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

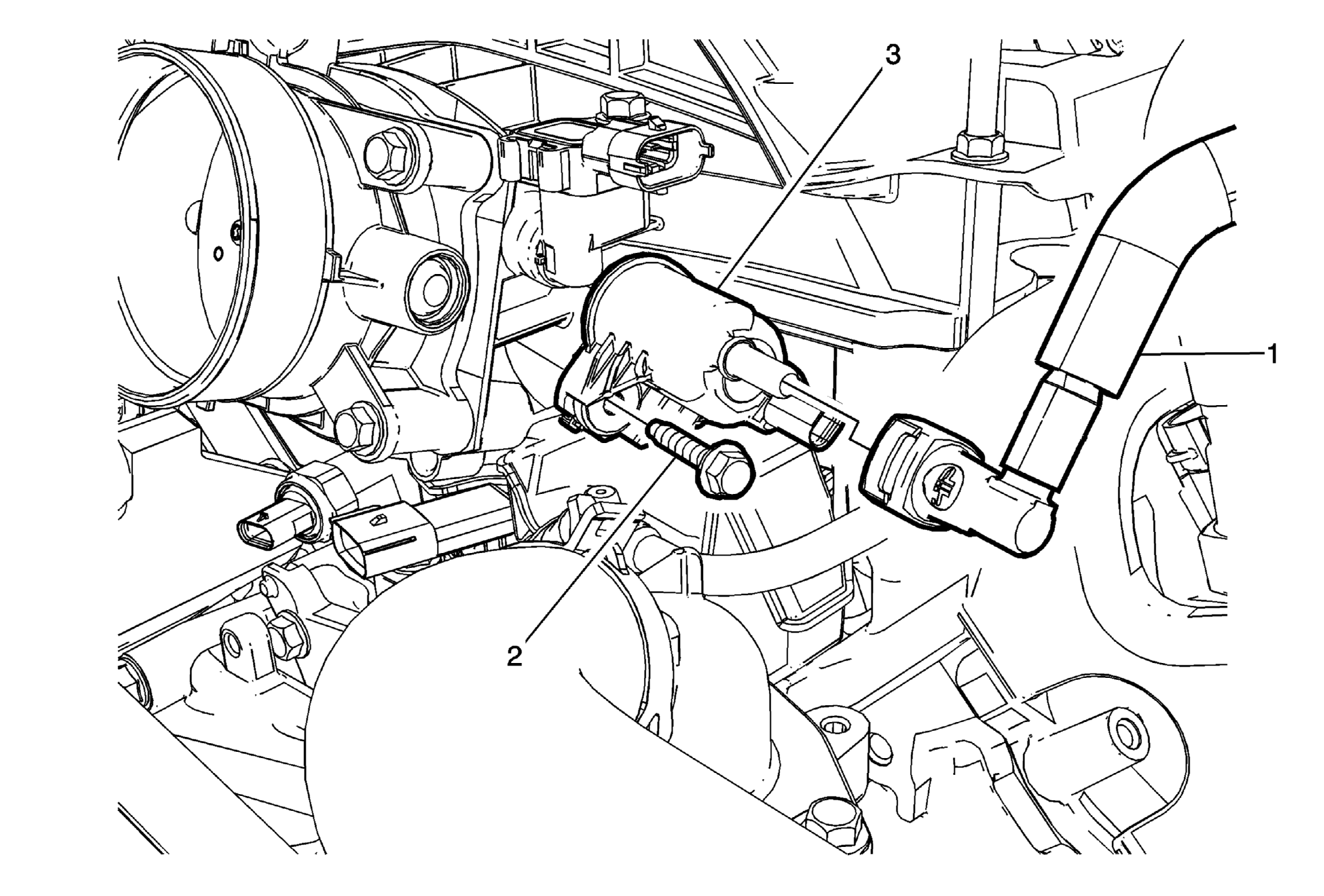

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Duct Replacement (Chevrolet and GMC) Air Cleaner Outlet Duct Replacement (Cadillac) |
|
| 1 | Evaporative Emission Canister Purge Solenoid Valve Hose |
| 2 | Evaporative Emission Canister Purge Solenoid Valve Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect the electrical connector. |
