Engine Oil Pressure Sensor Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Chevrolet and GMC) Air Cleaner Outlet Duct Replacement (Cadillac) . |
|

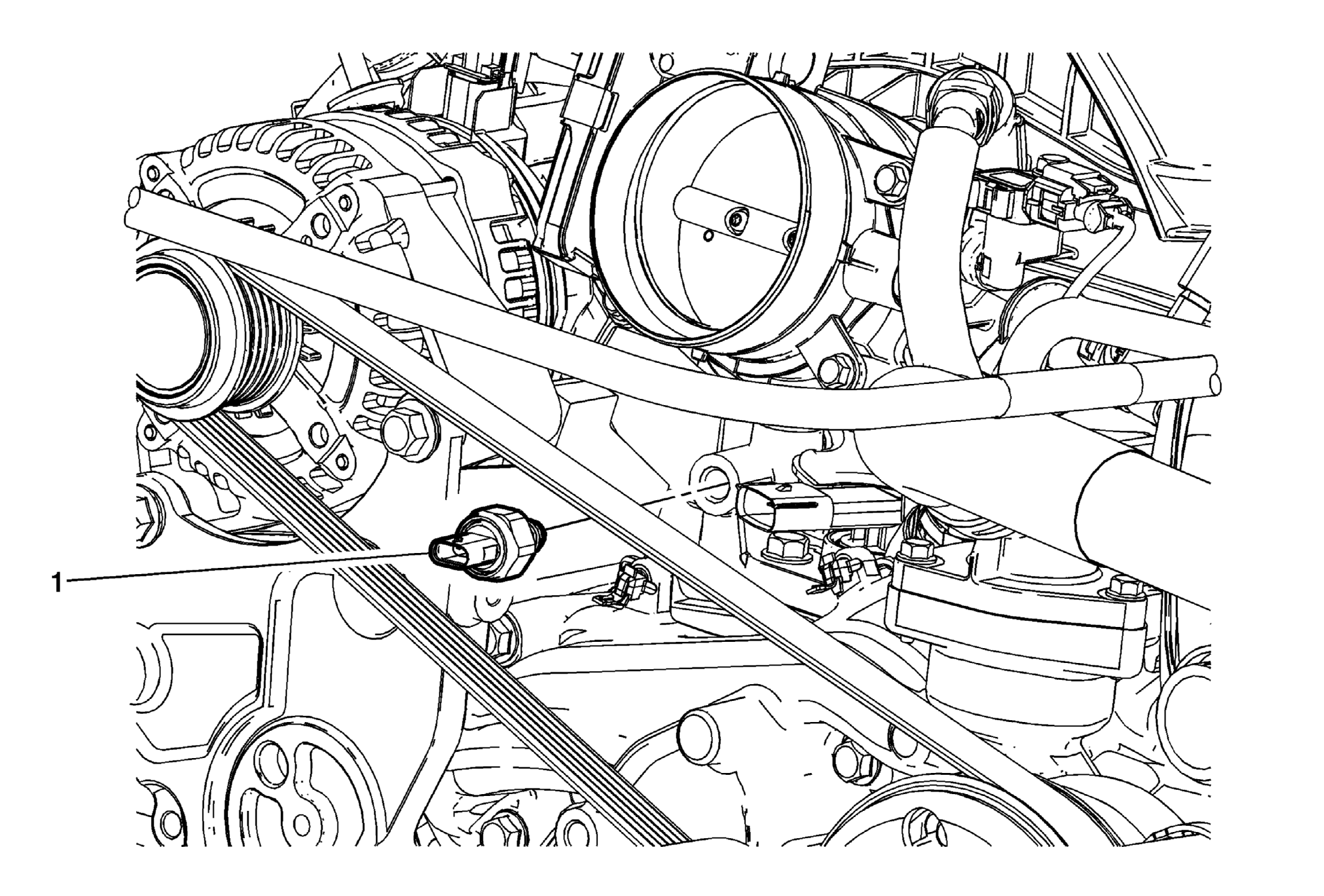

| 1 | Engine Oil Pressure Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect the engine oil pressure sensor electrical wiring harness connector. Tighten 35 N.m (26 lb ft) |
