Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING:

    Refer to Eye Protection Warning .

  1. Disconnect the battery ground cable from the battery. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery) .
  2. Remove Drive Belt Tensioner Replacement - Accessory .

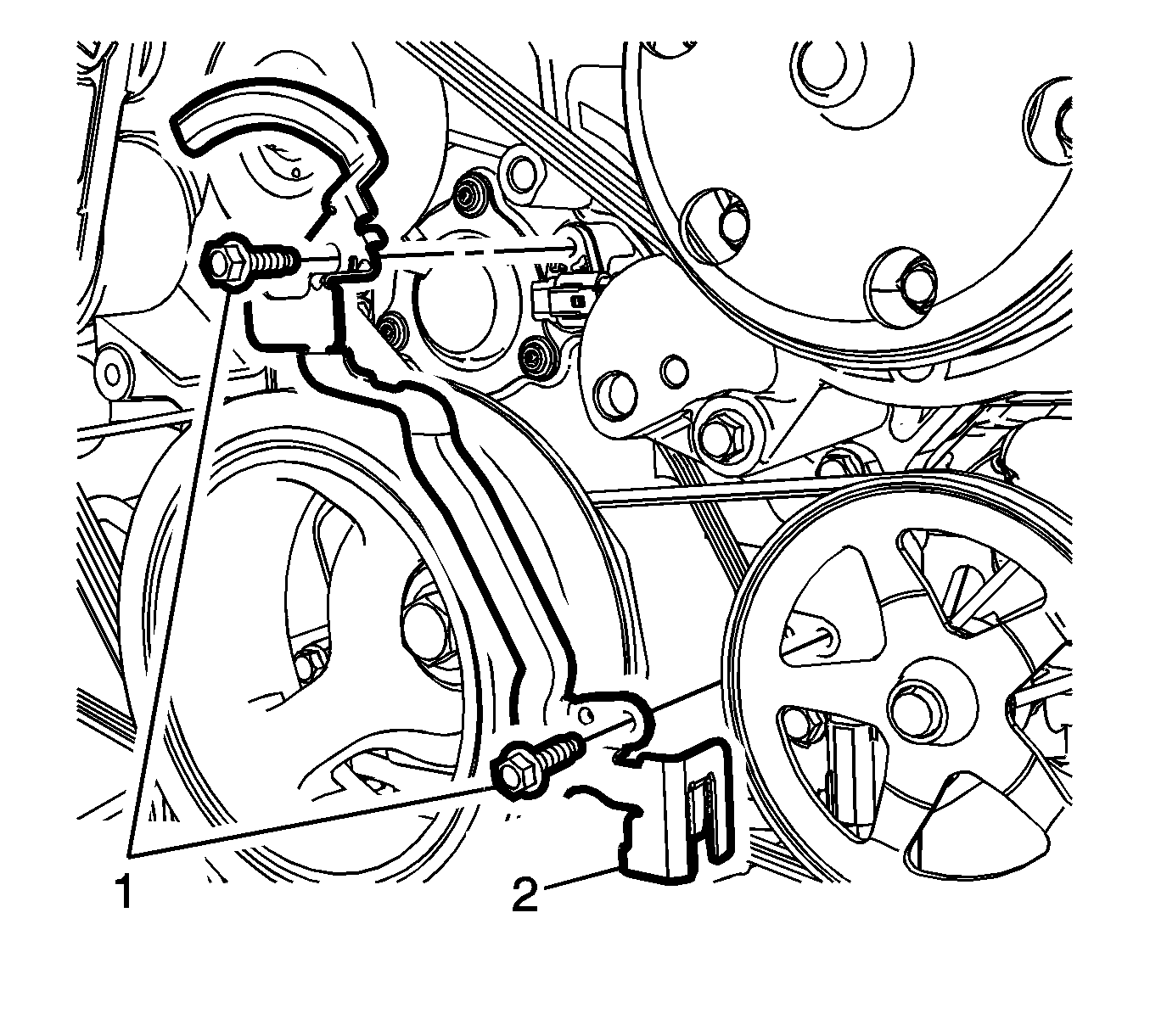

    3. Fig 1: Camshaft Position Sensor Bracket Fasteners And Engine Block
    GM3268430Courtesy of GENERAL MOTORS COMPANY
  3. Remove the camshaft position sensor bracket fasteners (1) from the engine block.
  4. Carefully reposition the bracket aside and remove the camshaft position sensor from the engine front cover with the harness attached.

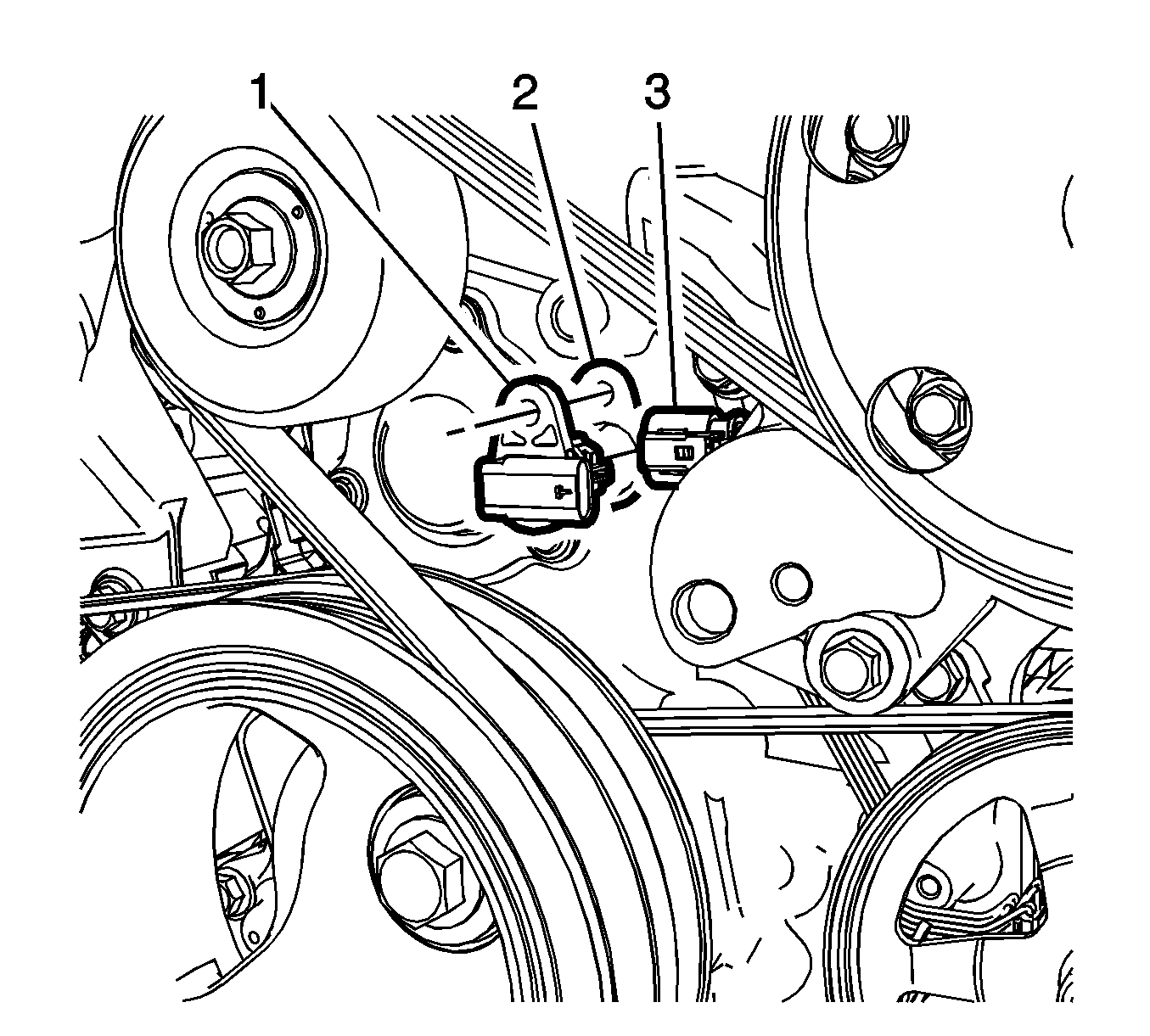

    5. Fig 2: Camshaft Position Sensor And Engine Front Cover
    GM3268452Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the camshaft position sensor electrical connector (3) from the camshaft position sensor (1).
