Camshaft Position Actuator Magnet Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

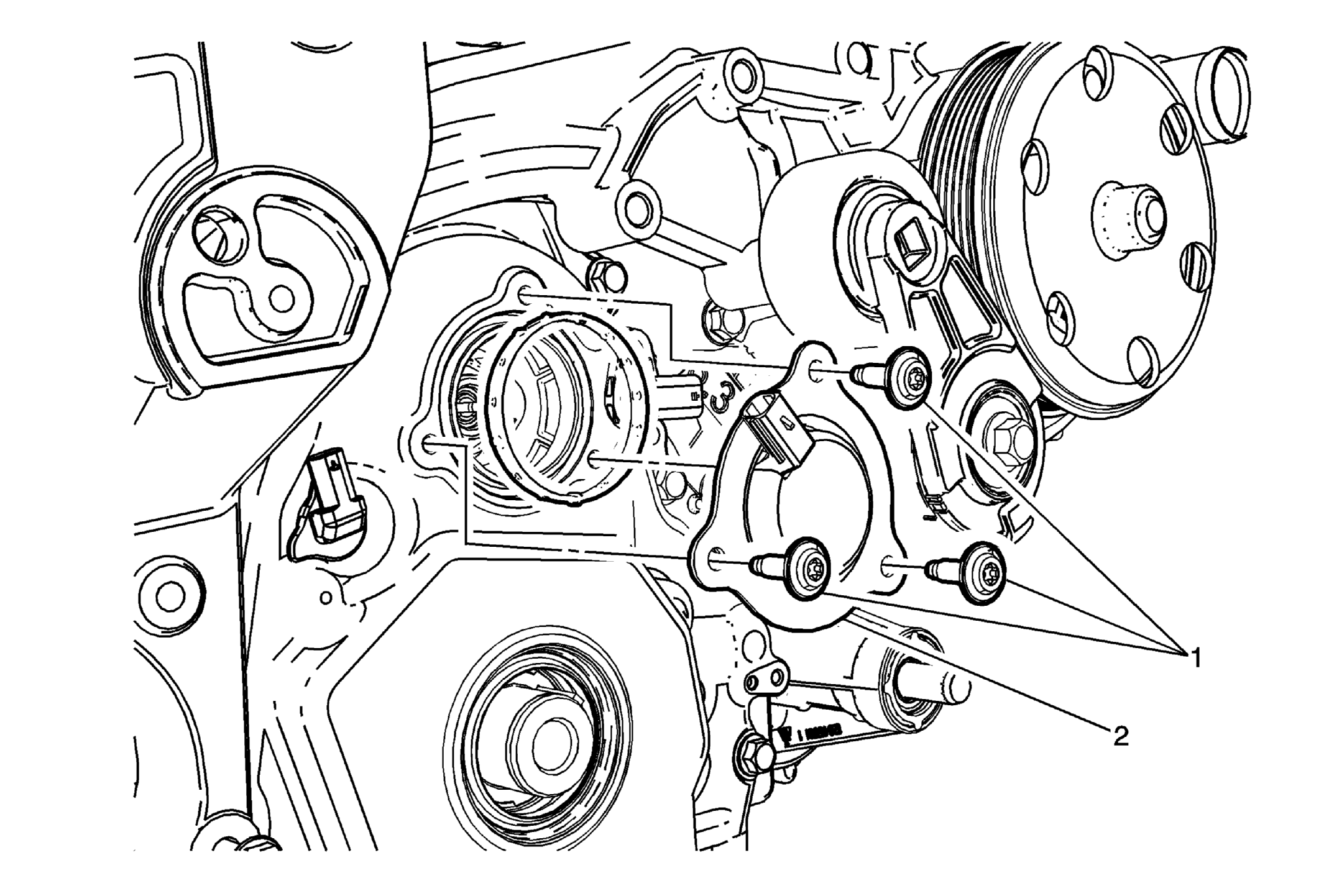

Fig 1: Camshaft Position Actuator Magnet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Camshaft Position Actuator Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Procedure Unplug the camshaft position actuator electrical connector. Remove the camshaft position actuator seal from the engine front cover.

Callout

Component Name

Camshaft Position Actuator Fasteners (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator

Procedure

Unplug the camshaft position actuator electrical connector.
Remove the camshaft position actuator seal from the engine front cover.
