Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump. Refer to Fuel Pump Replacement .
  2. Remove the fuel injection fuel rail assemblies. Refer to Fuel Injection Fuel Rail Assembly Replacement - Bank 1 , and Fuel Injection Fuel Rail Assembly Replacement - Bank 2 .
    3. Fig 1: Electrical Connectors
    GM3270019Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the two electrical connectors (1).

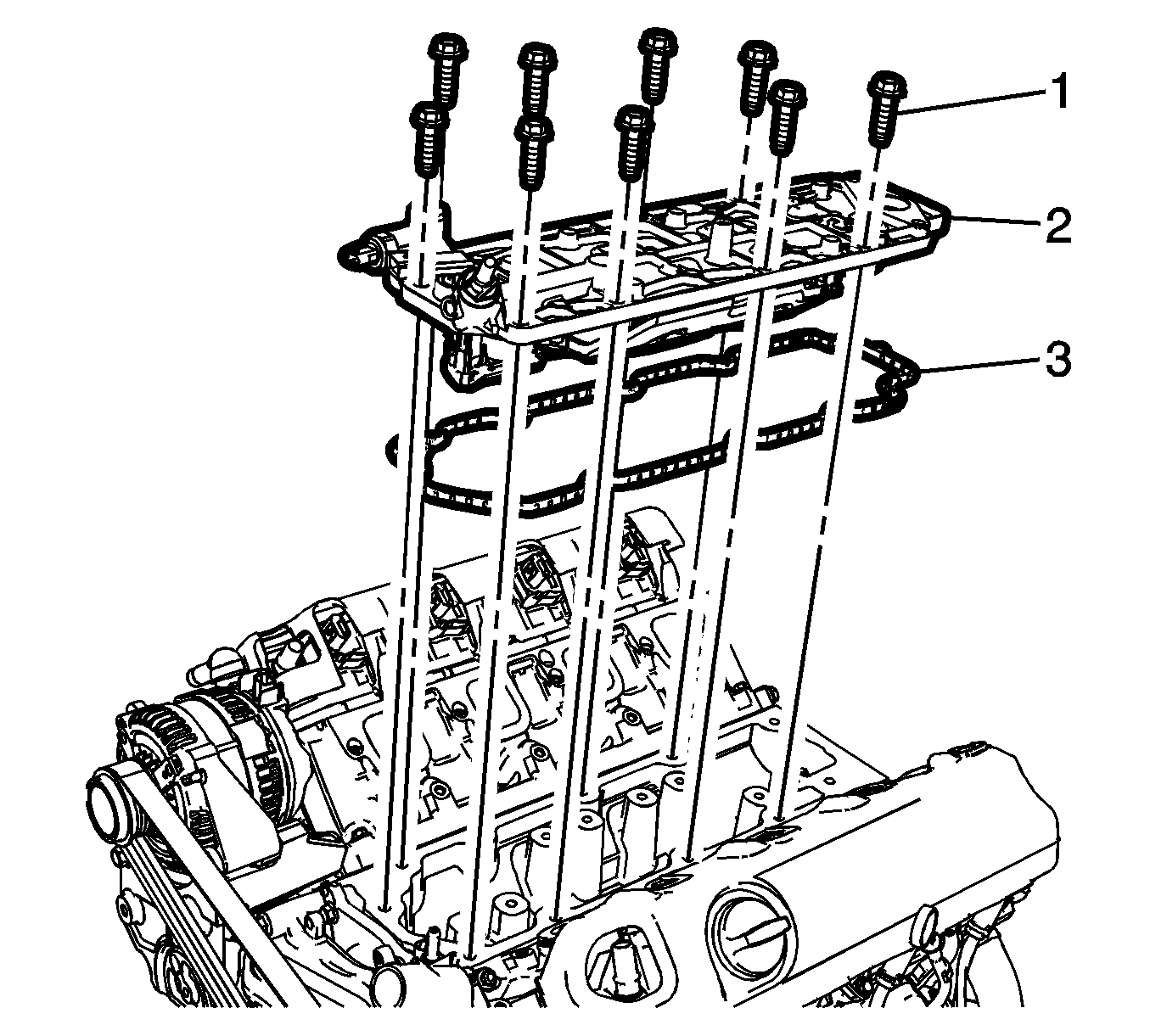

    4. Fig 2: Valve Lifter Oil Manifold, Bolts And Gasket
    GM3270090Courtesy of GENERAL MOTORS COMPANY
  4. Remove the valve lifter oil manifold bolts (1).
  5. Remove the valve lifter oil manifold (2).
  6. Remove the gasket (3) from the valve lifter oil manifold and discard.
  7. Transfer parts as necessary.
