Valve Lifter Follower Guide Assembly Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

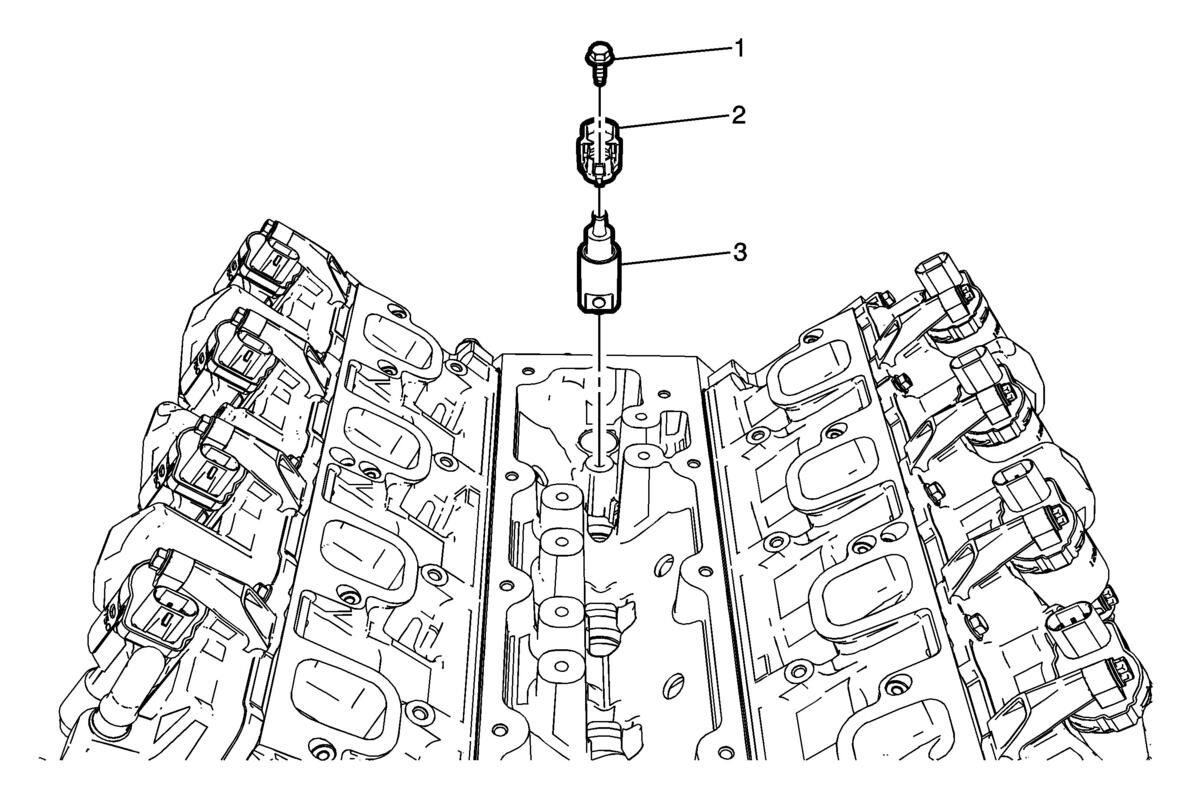

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the valve lifter oil manifold. Refer to Valve Lifter Oil Manifold Replacement . |
|
| 1 | Valve Lifter Follower Guide Fastener
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 2 | Valve Lifter Follower Guide |
| 3 | Valve Lifter Follower |
