Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

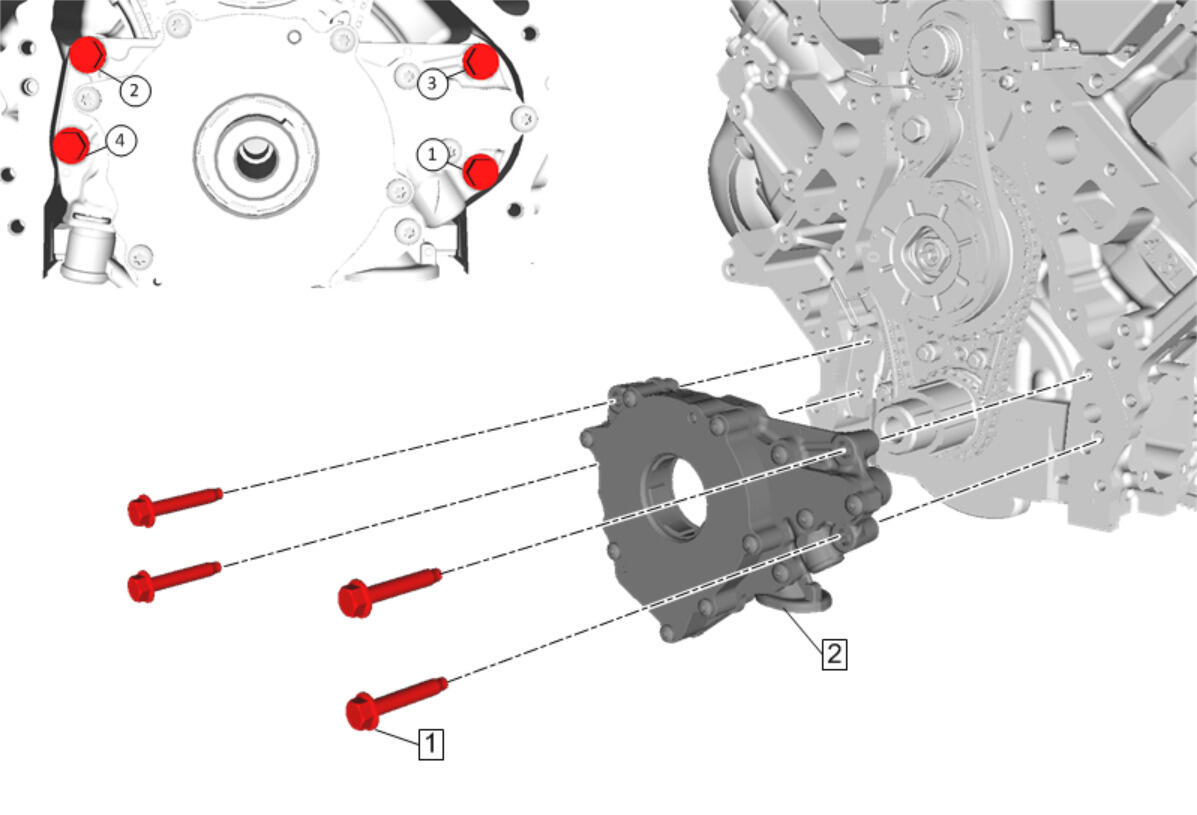

    Fig 1: Oil Pump
    GM4864287Courtesy of GENERAL MOTORS COMPANY
  1. Install Oil Pump (2)Oil Pump Installation
  2. Install Engine Front Cover - Engine Front Cover Replacement
