Oil Level Indicator Tube Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

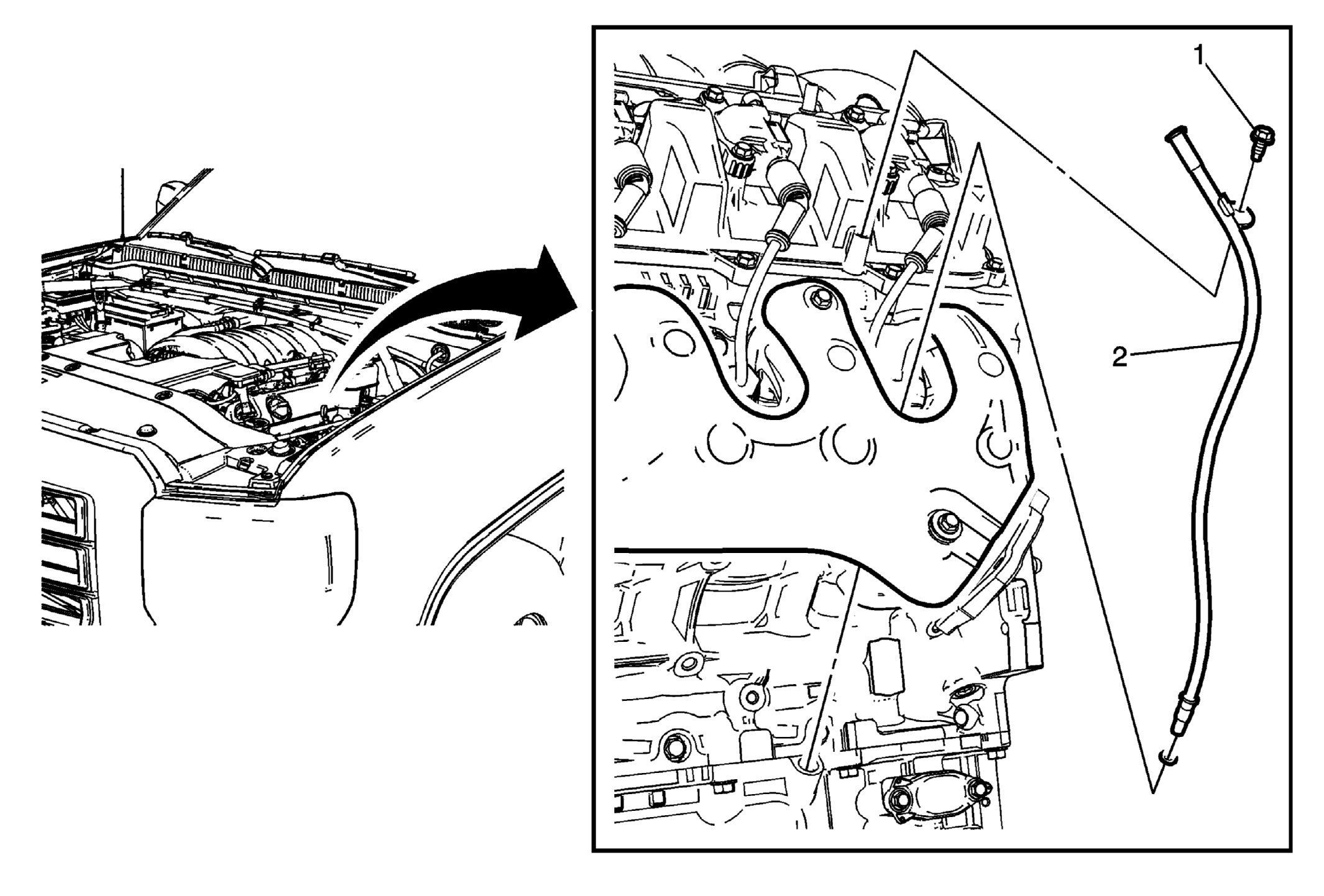

Fig 1: Oil Level Indicator Tube
GM3272420Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the bank 1 valve rocker arm cover insulator. Refer to Valve Rocker Arm Cover Insulator Replacement - Left Side
1 Oil Level indicator Tube fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Oil Level Indicator Tube

Procedure

  1. Inspect the oil level indicator tube seal for damage or cuts.
  2. Replace the oil level indicator tube seal as needed.
  3. Use clean engine oil to lubricate the oil level indicator tube seal prior to installing the tube.
