Crankshaft Rear Oil Seal Housing Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

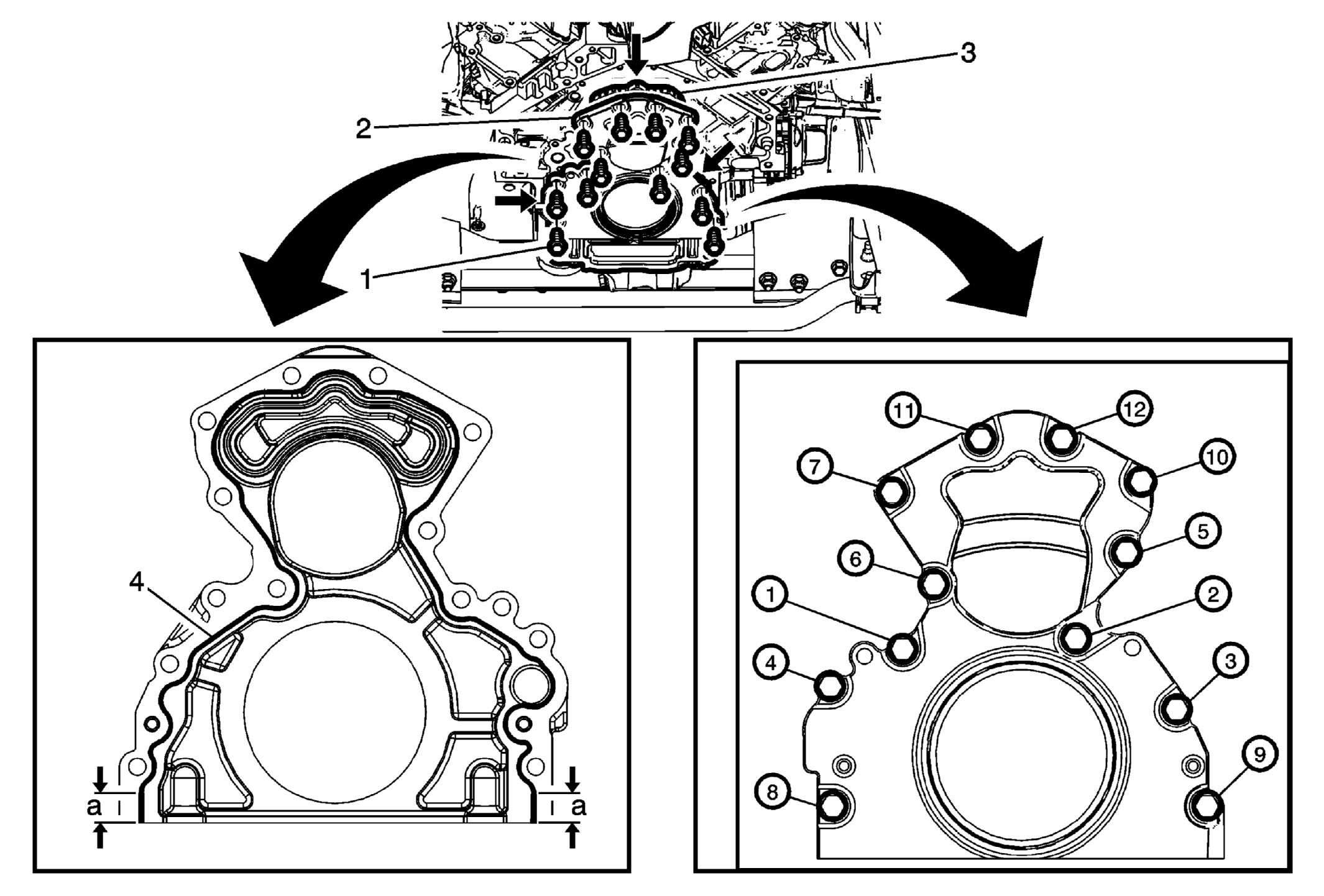

Fig 1: Crankshaft Rear Oil Seal Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the automatic transmission flex plate. Refer to Automatic Transmission Flex Plate Replacement .
1	Crankshaft Rear Oil Seal Housing Fastener (Qty; 12) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Crankshaft Rear Oil Seal Housing Procedure To separate the rear housing from the engine, pry at the points that are shown by the arrows.
3	Crankshaft Rear Oil Seal Housing Gasket Procedure A NEW gasket must be used when installing the rear housing.
4	Crankshaft Rear Oil Seal Housing Sealant Procedure Apply a 3 mm (0.118 in) bead of RTV sealant on the engine rear cover as shown. Apply a 5 mm (0.197 in) bead of RTV sealant on the engine rear cover as shown. The 5 mm (0.197 in) bead must be applied only 10 mm (0.393 in) up from the bottom of the rear cover as shown (a). Refer to Adhesives, Fluids, Lubricants, and Sealers .
