Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

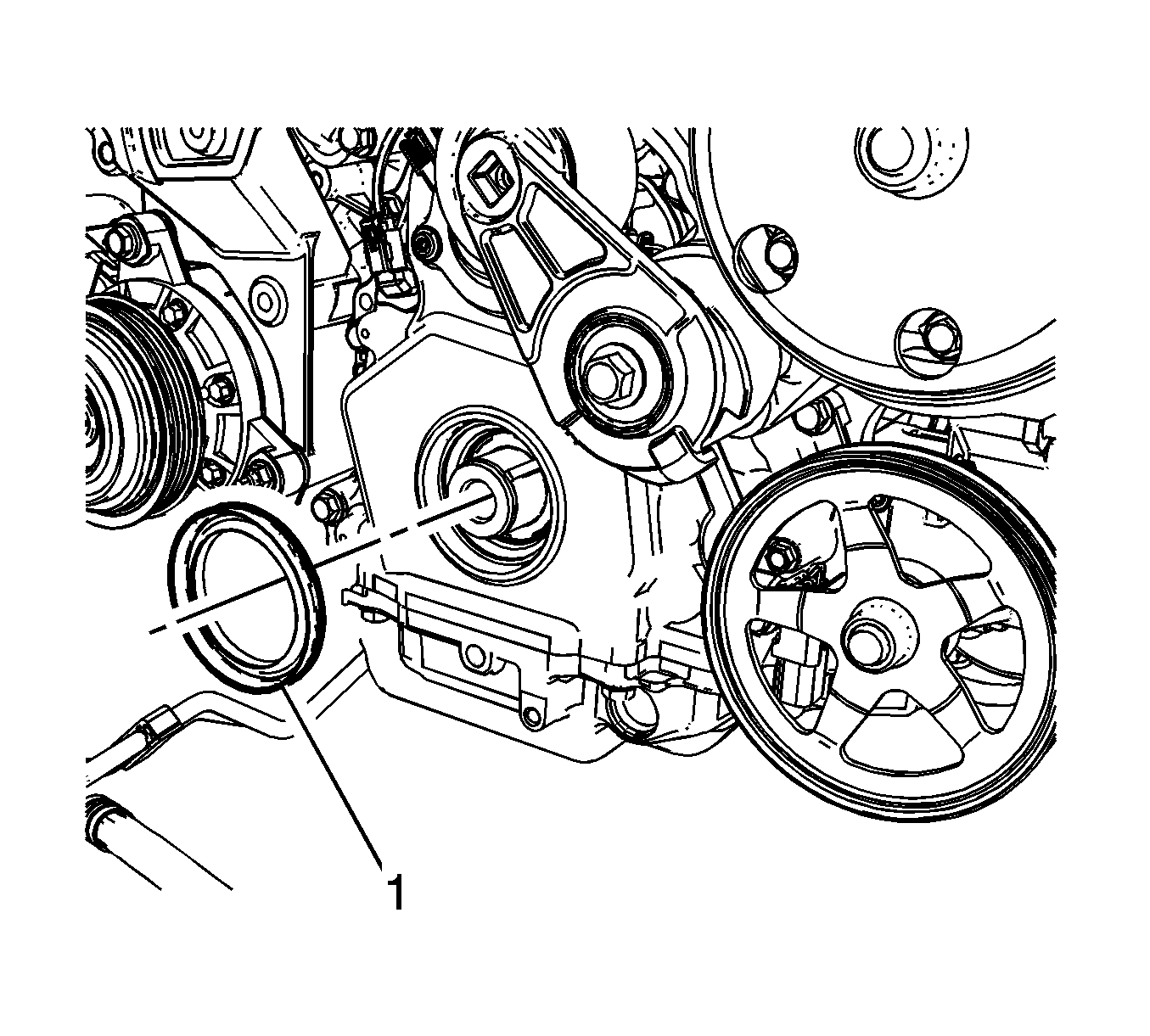

    2. Fig 1: Crankshaft Front Oil Seal And Front Cover
    GM3274082Courtesy of GENERAL MOTORS COMPANY
  2. Remove the crankshaft front oil seal (1) from the front cover.
