Valve Rocker Arm Cover Removal - Right Side: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

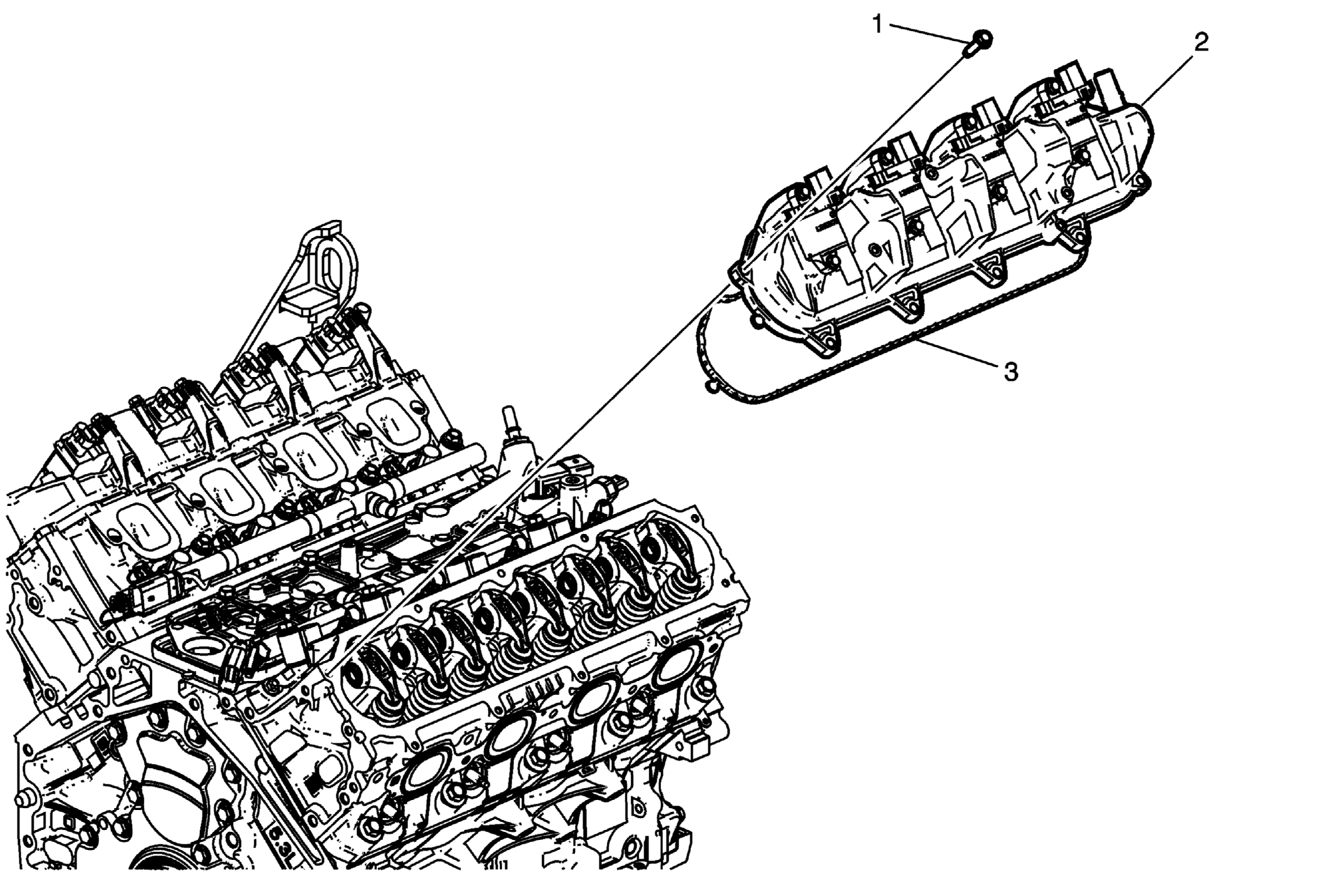

Fig 1: Valve Rocker Arm Cover - Right Side
GM2874545Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Removal - Right Side

Callout Component Name
1 Valve Rocker Arm Cover Bolt
2 Valve Rocker Arm Cover - Right Side
3 Valve Rocker Arm Cover Gasket
Refer to Replacing Engine Gaskets .
