Valve Rocker Arm Cover Removal - Left Side: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

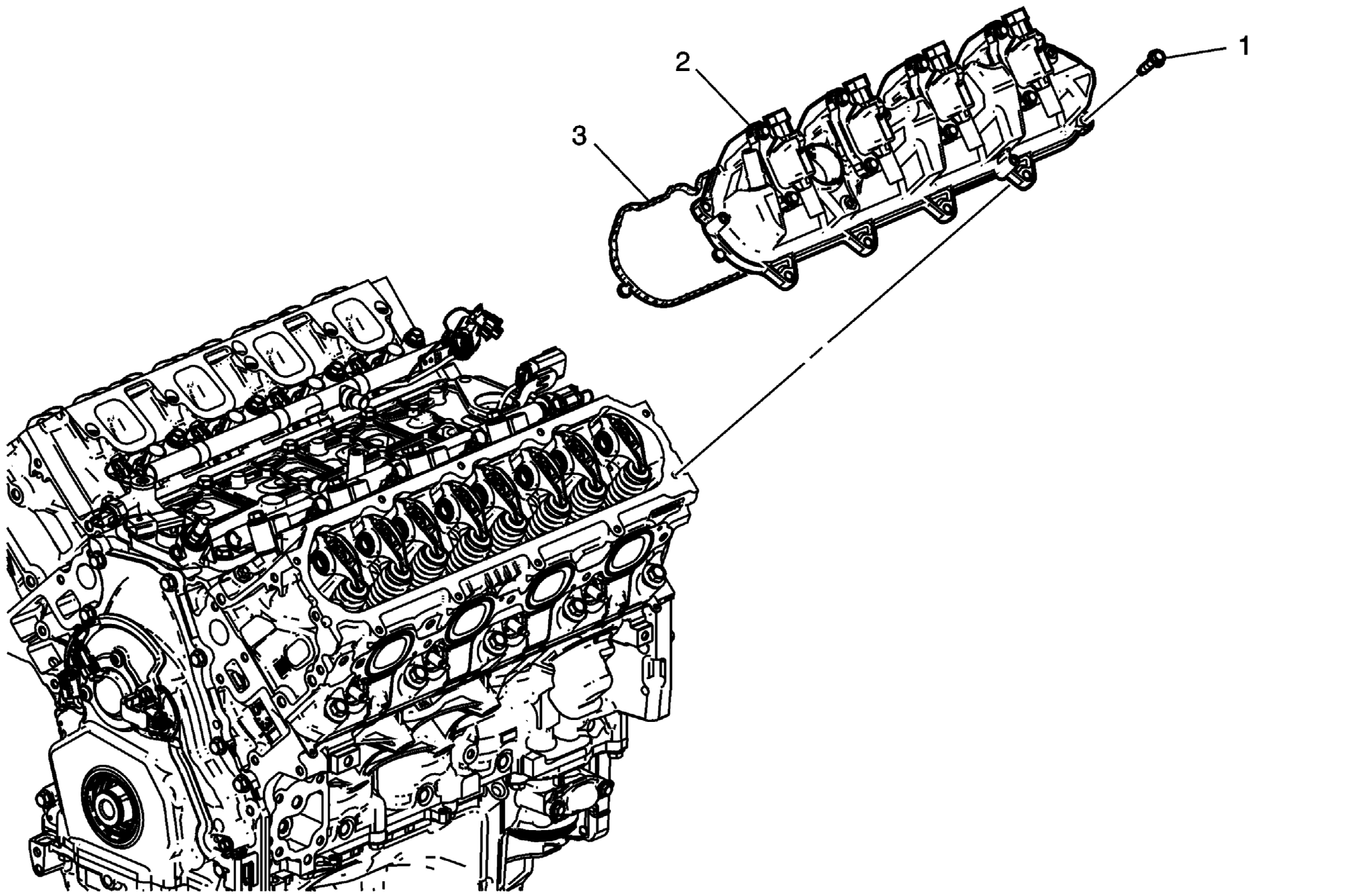

Fig 1: Valve Rocker Arm Cover - Left Side
GM2892206Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Removal - Left Side

Callout Component Name
1 Valve Rocker Arm Cover Bolt
2 Valve Rocker Arm Cover - Left Side
3 Valve Rocker Arm Cover Gasket
Refer to Replacing Engine Gaskets .
