Valve Rocker Arm Cover Installation - Left Side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

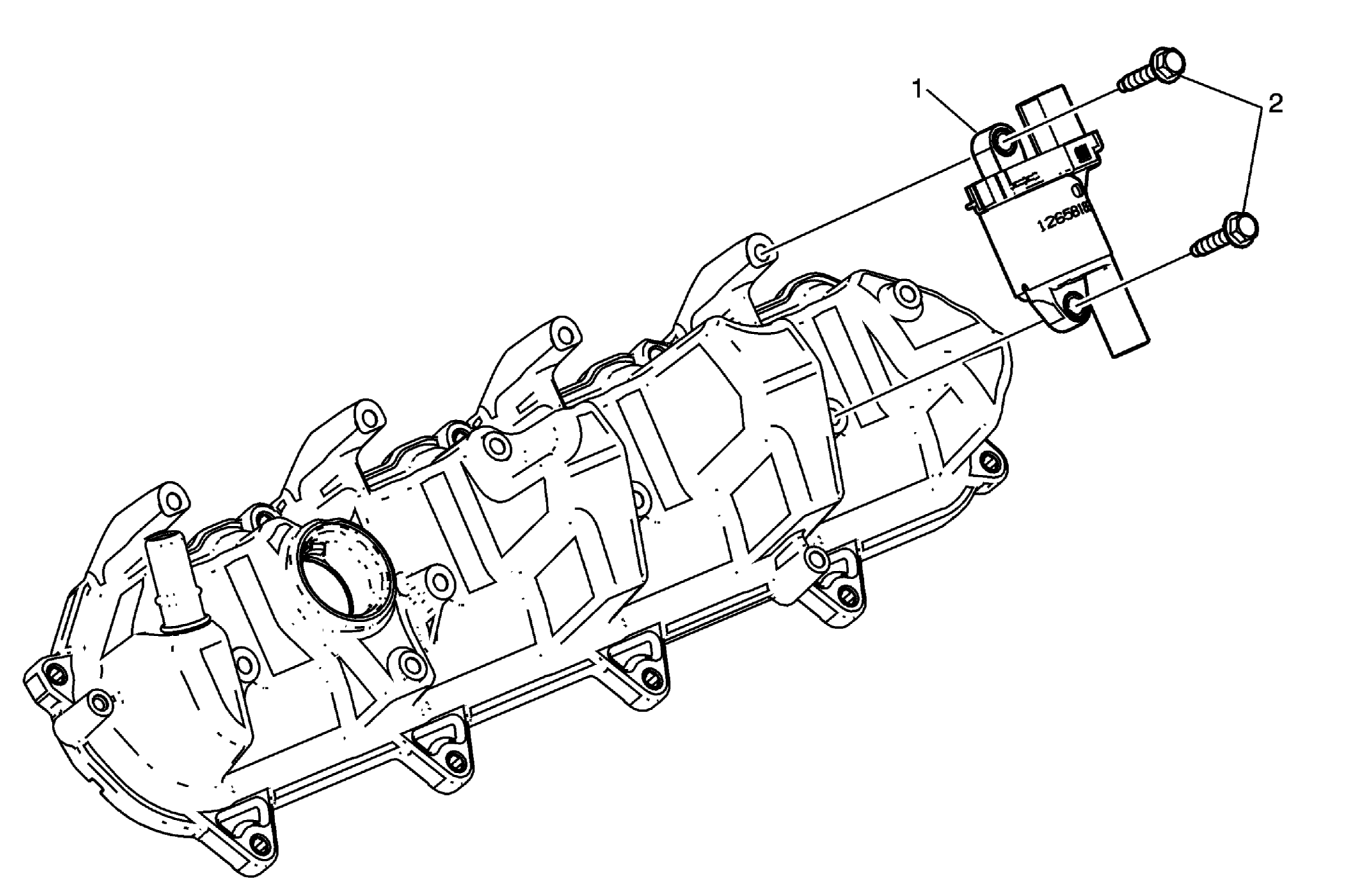

Fig 1: Valve Rocker Arm Cover - Left Side
GM3398615Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Assemble - Left Side

Callout Component Name
1 Ignition Coil
2 Ignition Coil Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)

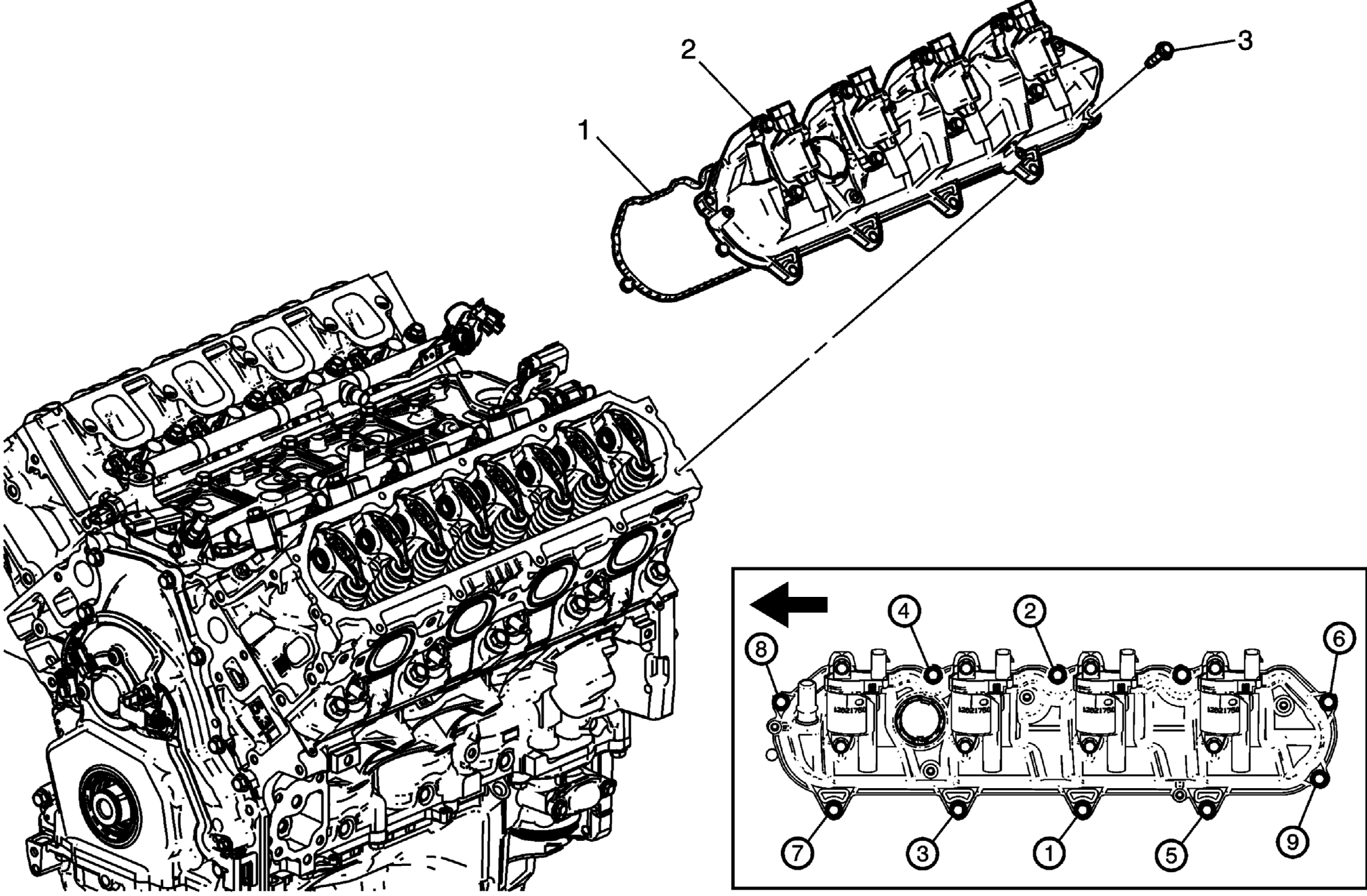

Fig 2: Valve Rocker Arm Cover - Left Side (With Tightening Sequence)
GM2874544Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Installation - Left Side

Callout Component Name
1 Valve Rocker Arm Cover Gasket
NOTE:

Must use a NEW gasket.
2 Valve Rocker Arm Cover - Left Side
3 Valve Rocker Arm Cover Bolt
CAUTION:

Refer to Fastener Caution .


Procedure
Tighten the valve rocker arm cover bolts in the sequence shown.
Tighten
10 N.m (89 lb in)
