Valve Rocker Arm And Push Rod Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

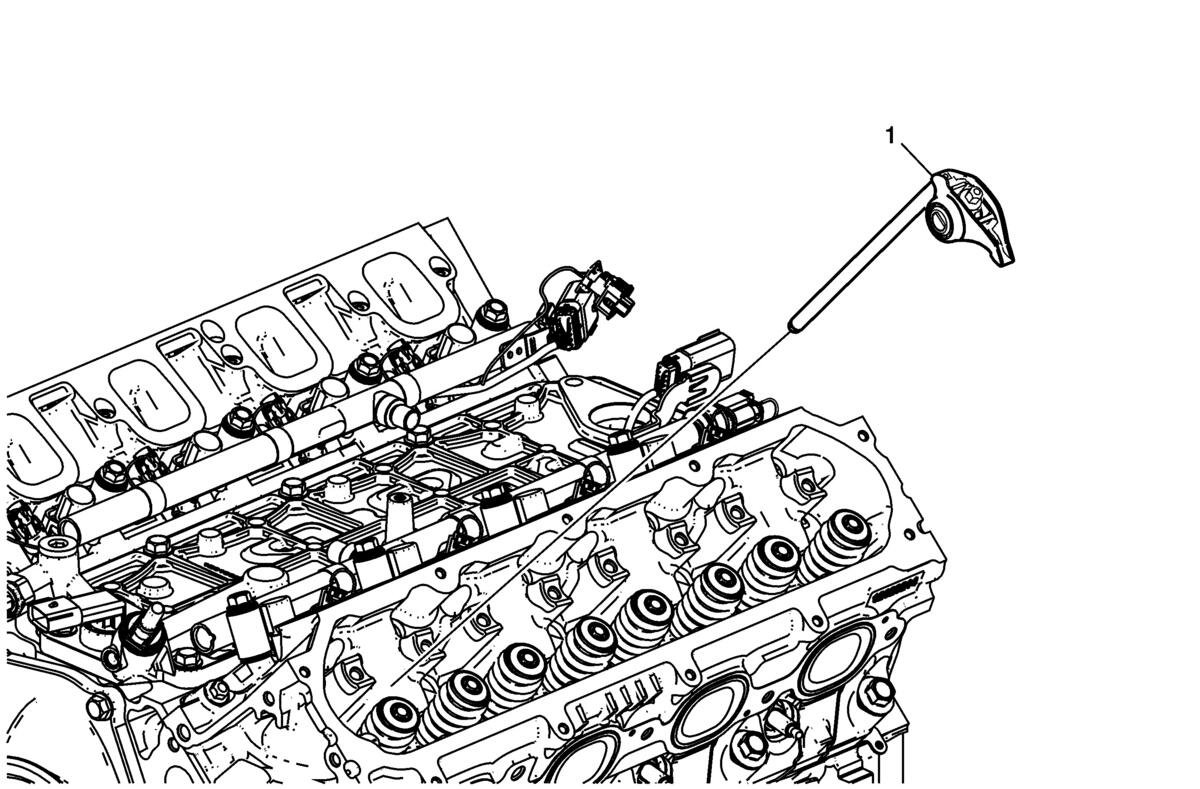

Fig 1: Valve Rocker Arm and Push Rod

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Place the valve rocker arms and valve pushrods in a rack so they can be installed in the same location from which they were removed.

Callout	Component Name
1	Valve Rocker Arm and Push Rod Assembly NOTE: The rocker arm bolts are not serviced separately.
