Valve Lifter Follower Guide Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

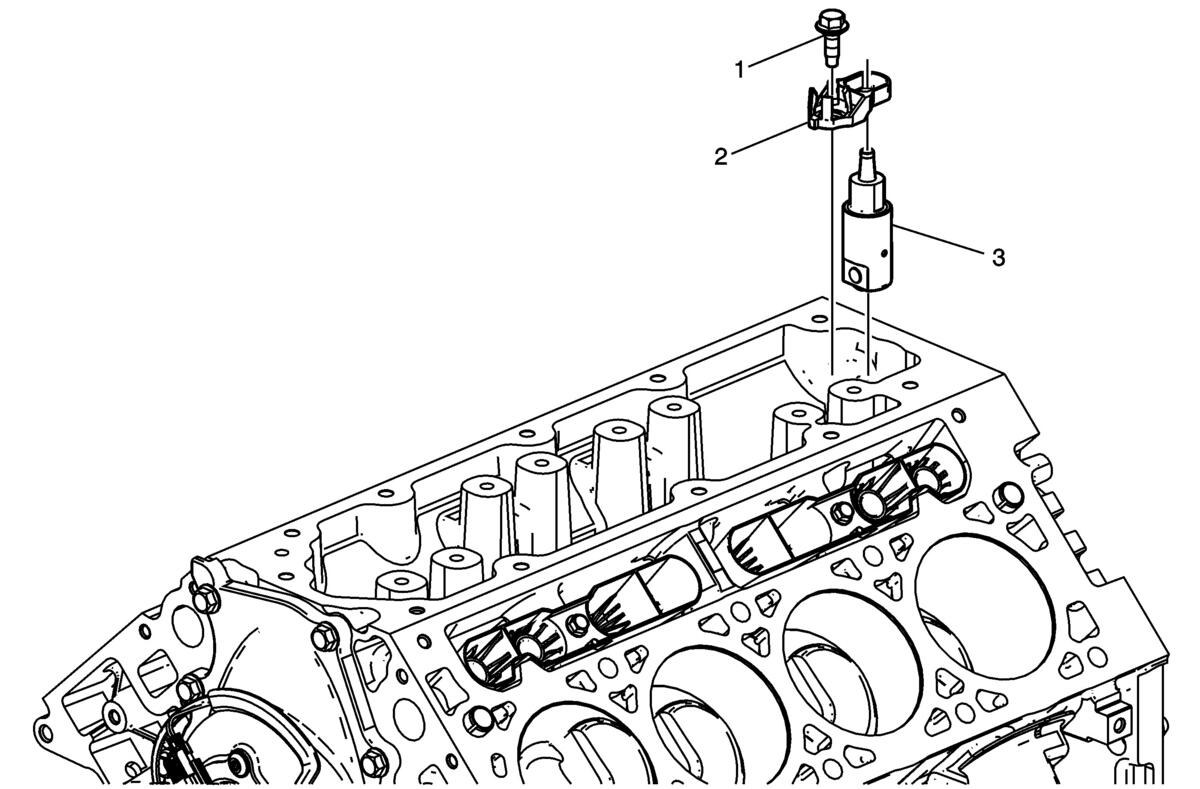

Fig 1: Valve Lifter Follower Guide
GM3276800Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Valve Lifter Follower Guide Bolt
2 Valve Lifter Follower Guide
3 Valve Lifter Follower
