Vacuum Pump Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

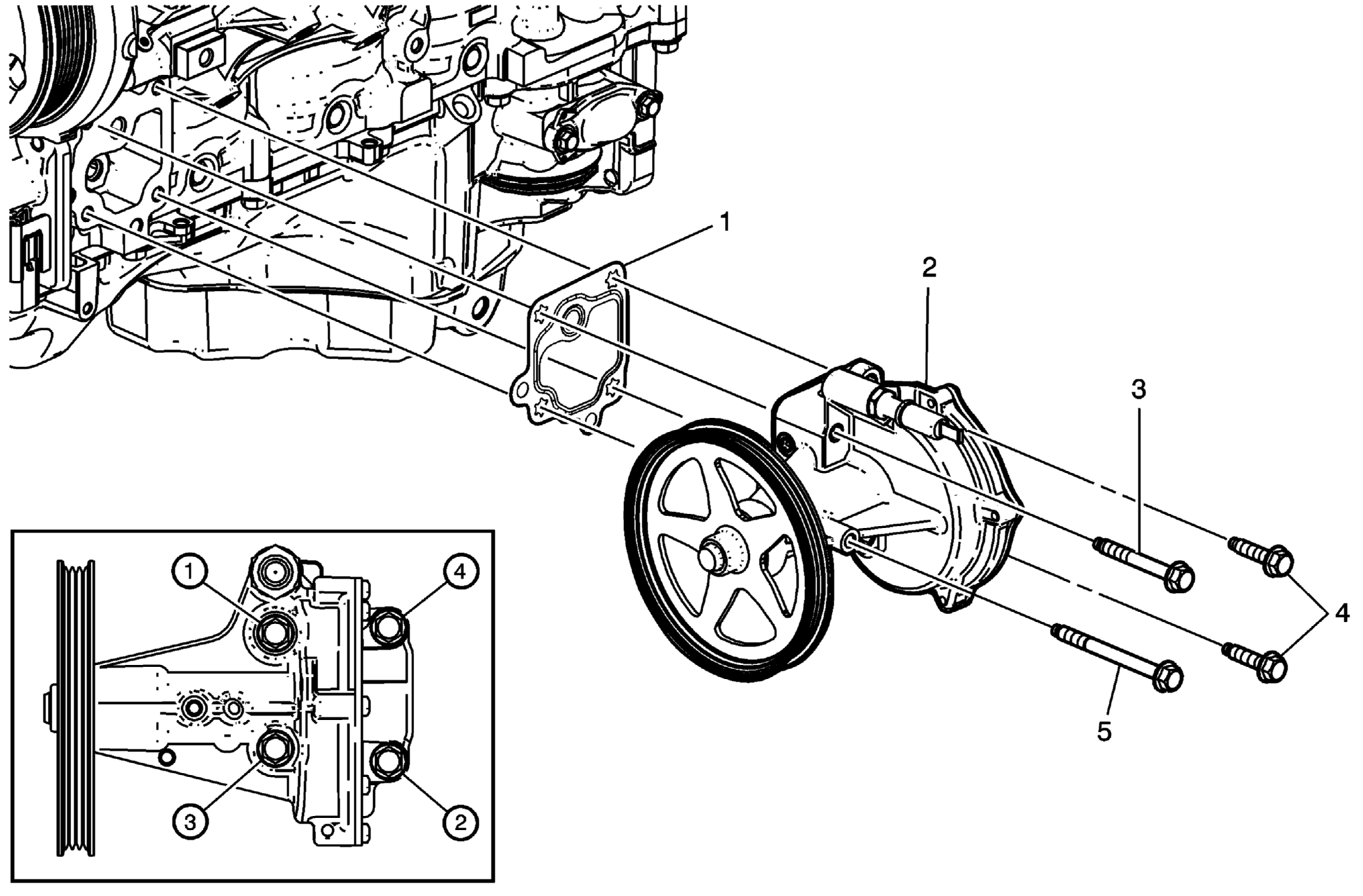

| Callout | Component Name |
|---|---|
| 1 | Vacuum Pump Gasket
NOTE:
Must use NEW gasket when installing vacuum pump. |
| 2 | Vacuum Pump Assembly |
| 3 | Vacuum Pump Bolt
CAUTION:
Refer to Fastener Caution . Procedure Tighten the vacuum pump bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 4 | Vacuum Pump Bolts Procedure Tighten the vacuum pump bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 5 | Vacuum Pump Bolt Procedure Tighten the vacuum pump bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
