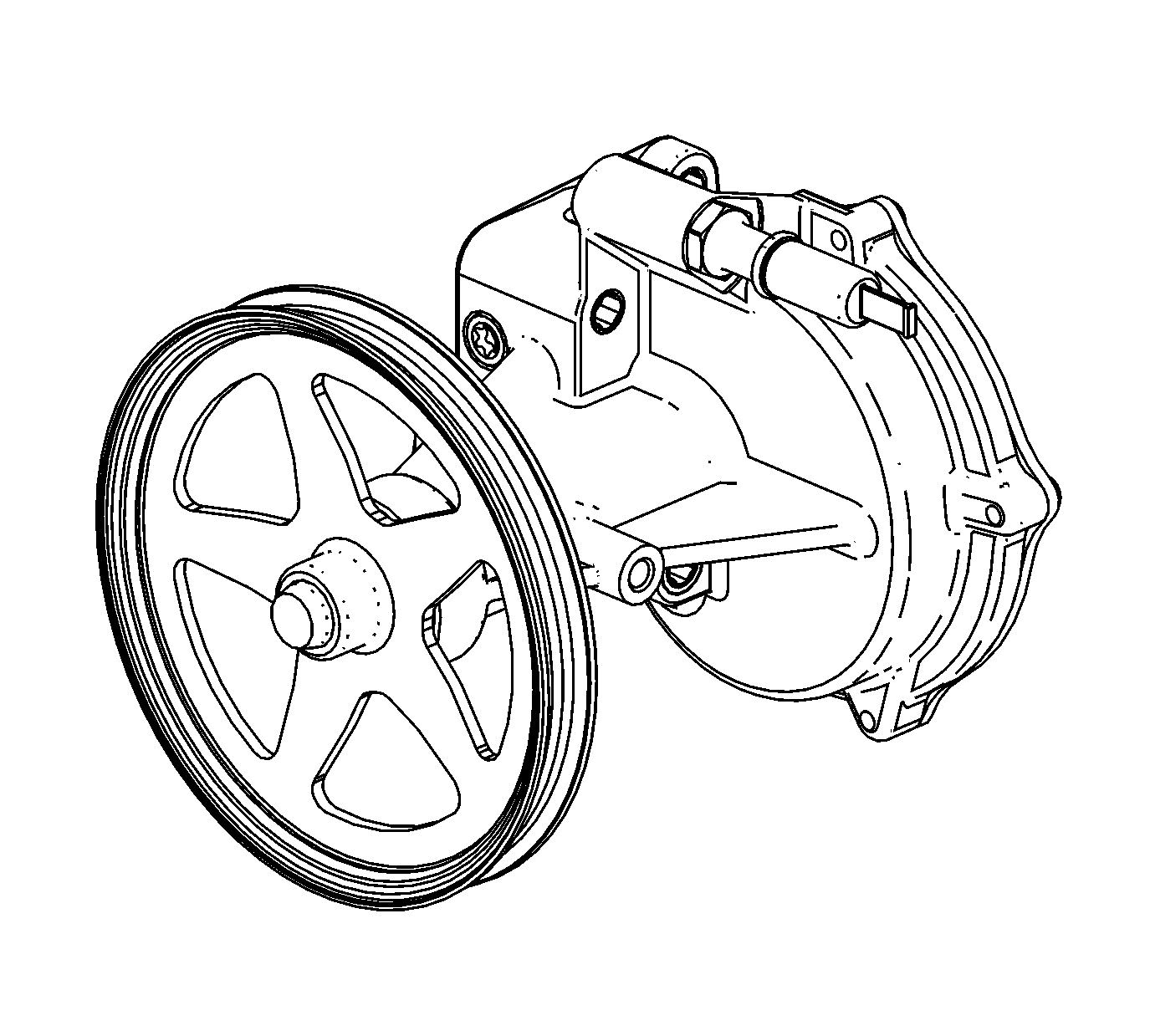

Vacuum Pump Cleaning And Inspection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the old gasket from the vacuum pump sealing surfaces. Refer to Replacing Engine Gaskets .
- Clean all excess dirt and debris from the vacuum pump housing.
- Inspect the vacuum pump for the following conditions:
- Gasket and hose sealing surfaces for excessive scratches or gouging
- Excessive side-to-side play in the pulley shaft
- Leakage at the vacuum inlet housing or rear cover
- Leakage at the vacuum pump vent hole
- Wear or damage in the belt tracking area of the pulley
