Throttle Body Assembly Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

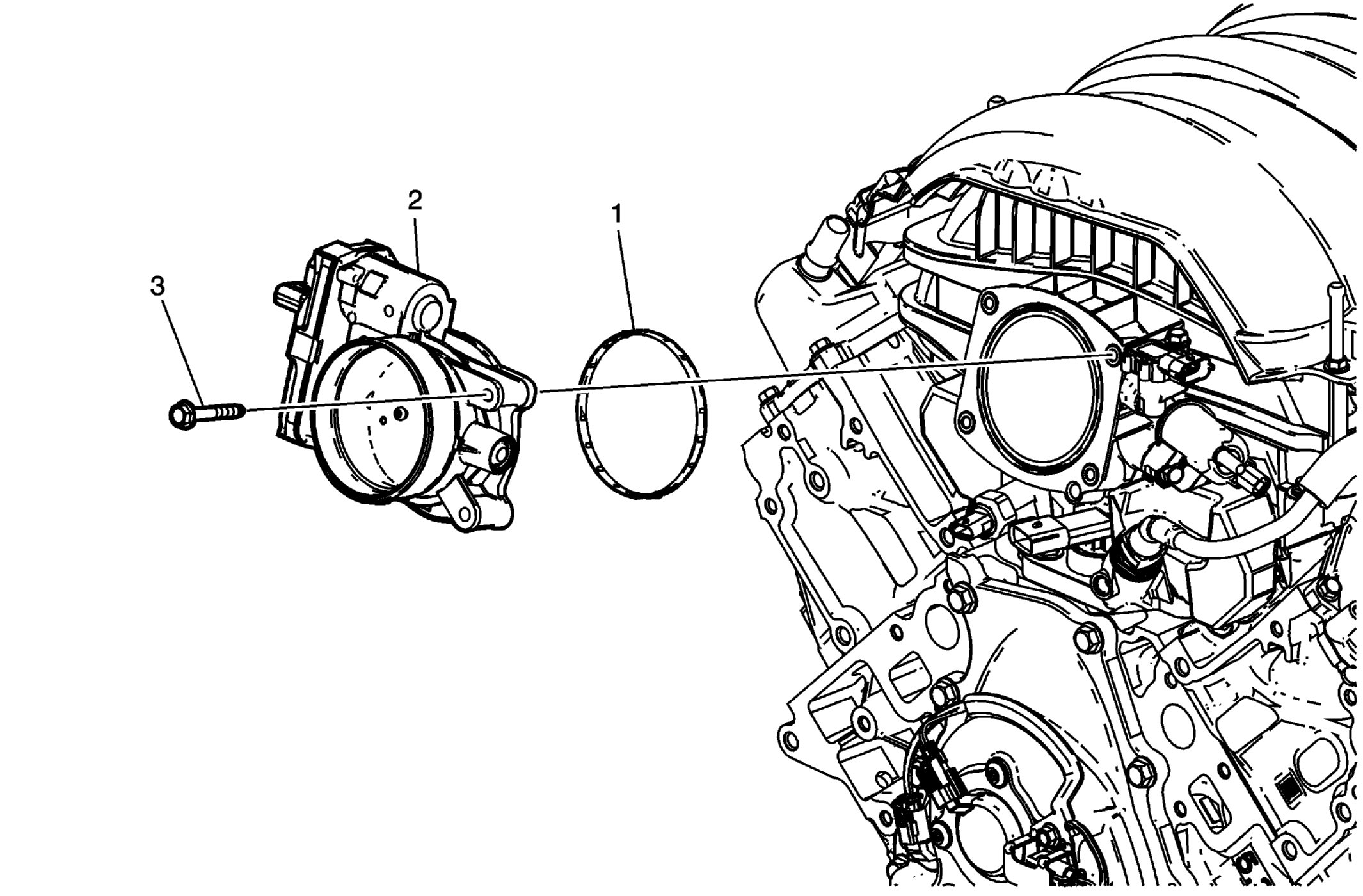

| Callout | Component Name |
|---|---|
| 1 | Throttle Body Gasket
NOTE:
A NEW gasket must be used when installing the throttle body assembly. |
| 2 | Throttle Body Assembly |
| 3 | Throttle Body Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
