Piston And Connecting Rod Disassemble

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Piston, Connecting Rod & Bearing Assembly

Courtesy of GENERAL MOTORS COMPANY

Remove the connecting rod bearings from the rod and cap.

Fig 2: Piston Rings And Piston Ring Pliers

Courtesy of GENERAL MOTORS COMPANY

Using piston ring pliers, remove the piston rings from the piston.

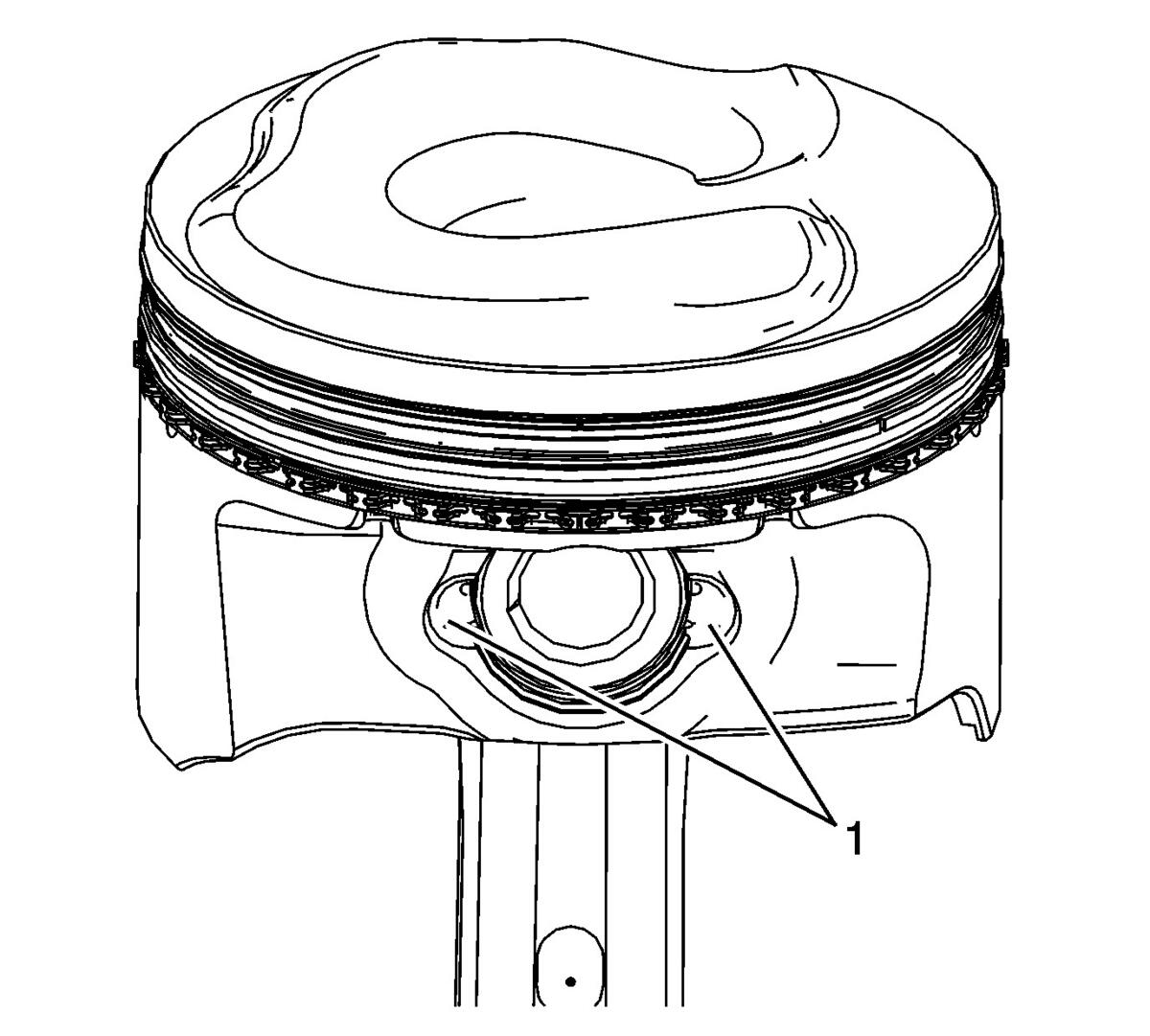

Fig 3: Rotating Piston Pin Retainers Until Ring End Gaps Are Positioned In Cutout Area

Courtesy of GENERAL MOTORS COMPANY

Rotate the piston pin retainers until the ring end gaps are positioned in the cutout area (1) of the pin bore.

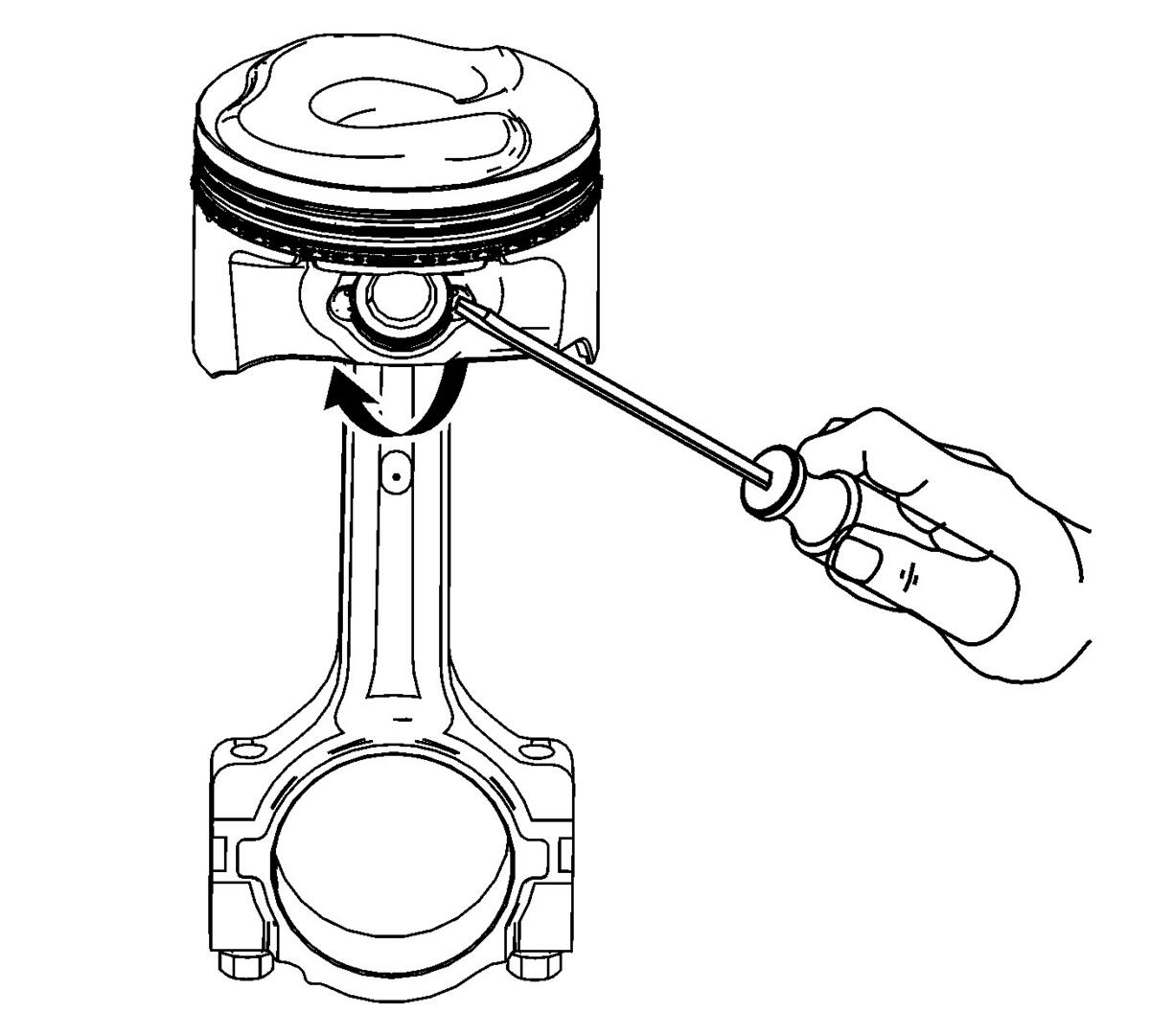

Fig 4: Retainers Starting In Cutout Area Of Pin Bore

Courtesy of GENERAL MOTORS COMPANY

Remove the retainers starting in the cutout area of the pin bore.

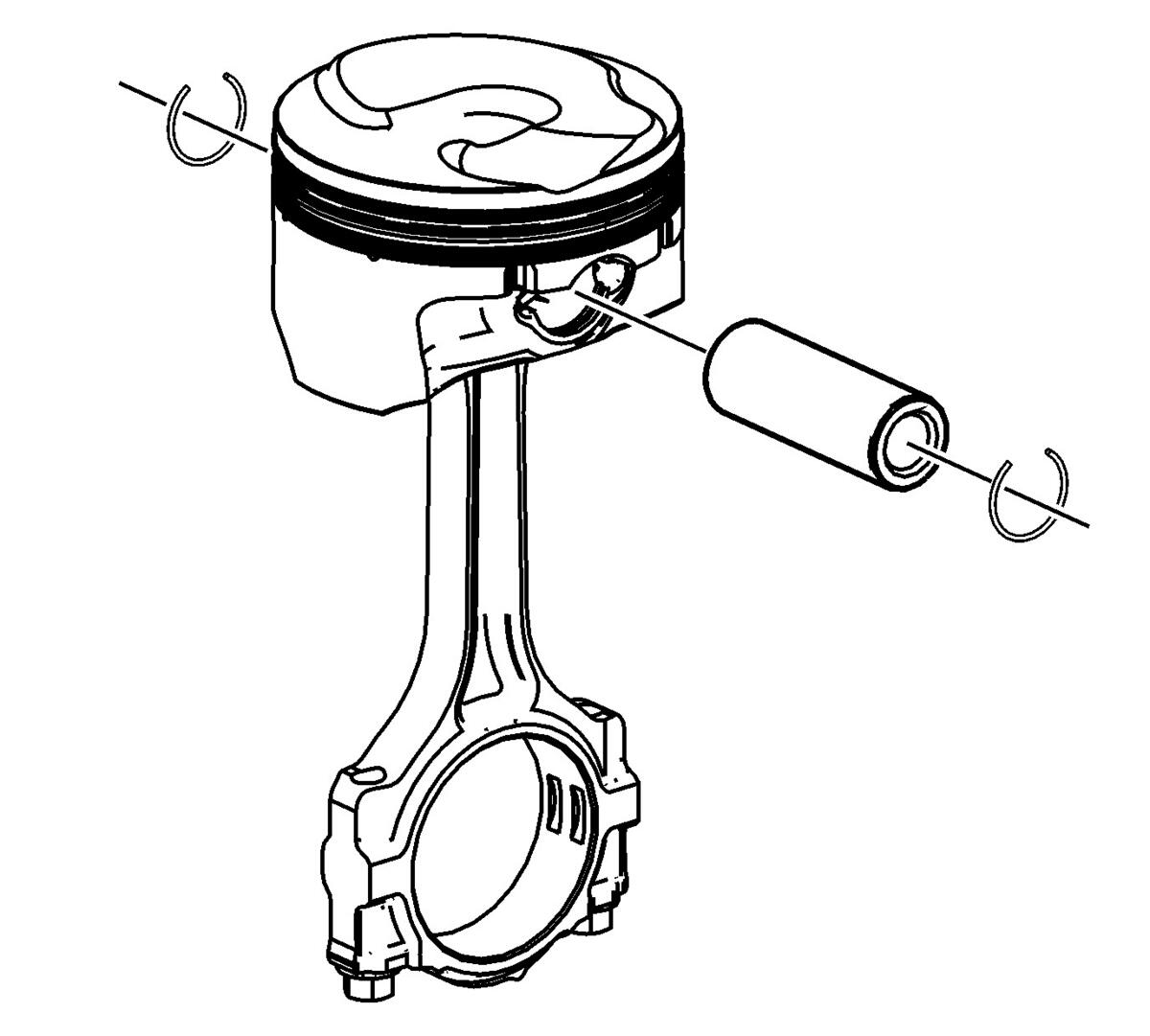

Fig 5: Pin, Piston And Connecting Rod

Courtesy of GENERAL MOTORS COMPANY

Remove the pin from the piston and connecting rod.
The piston and pin are a matched set and are not to be serviced separately.
Mark, sort, or organize the piston and the matching piston pin.
