Crankshaft Oil Deflector, High Pressure Port Seal, Lower Oil Pan, and Oil Level Indicator Switch Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

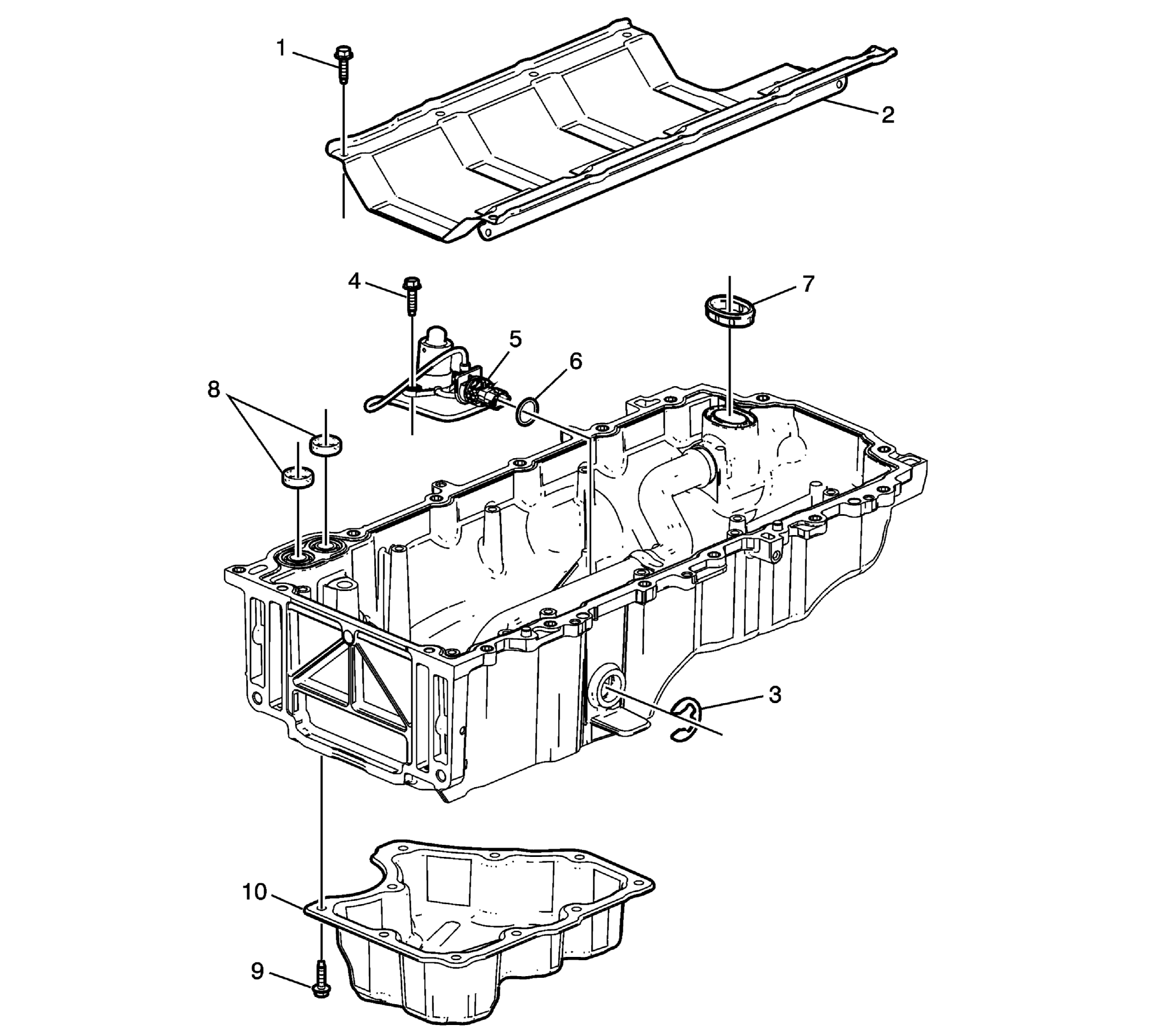

Fig 1: Crankshaft Oil Deflector, High Pressure Port Seal, Lower Oil Pan and Oil Level Indicator Switch
Crankshaft Oil Deflector, High Pressure Port Seal, Lower Oil Pan, and Oil Level Indicator Switch Removal
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Oil Deflector Bolt |
| 2 | Crankshaft Oil Deflector |
| 3 | Oil Level Sensor Lead Clip |
| 4 | Oil Level Indicator Switch Bolt |
| 5 | Oil Level Indicator Switch |
| 6 | Oil Level Indicator Switch Seal
NOTE:
Discard seal it is not reusable. |
| 7 | Oil Pan Front Seal
NOTE:
Discard seal it is not reusable. |
| 8 | Oil Pan High Pressure Port Seal
NOTE:
Discard seal it is not reusable. |
| 9 | Lower Oil Pan Bolt |
| 10 | Lower Oil Pan
NOTE:
If lower oil pan is removed it must be replaced. The lower oil pan is not reusable. |
