Oil Level Indicator And Tube Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

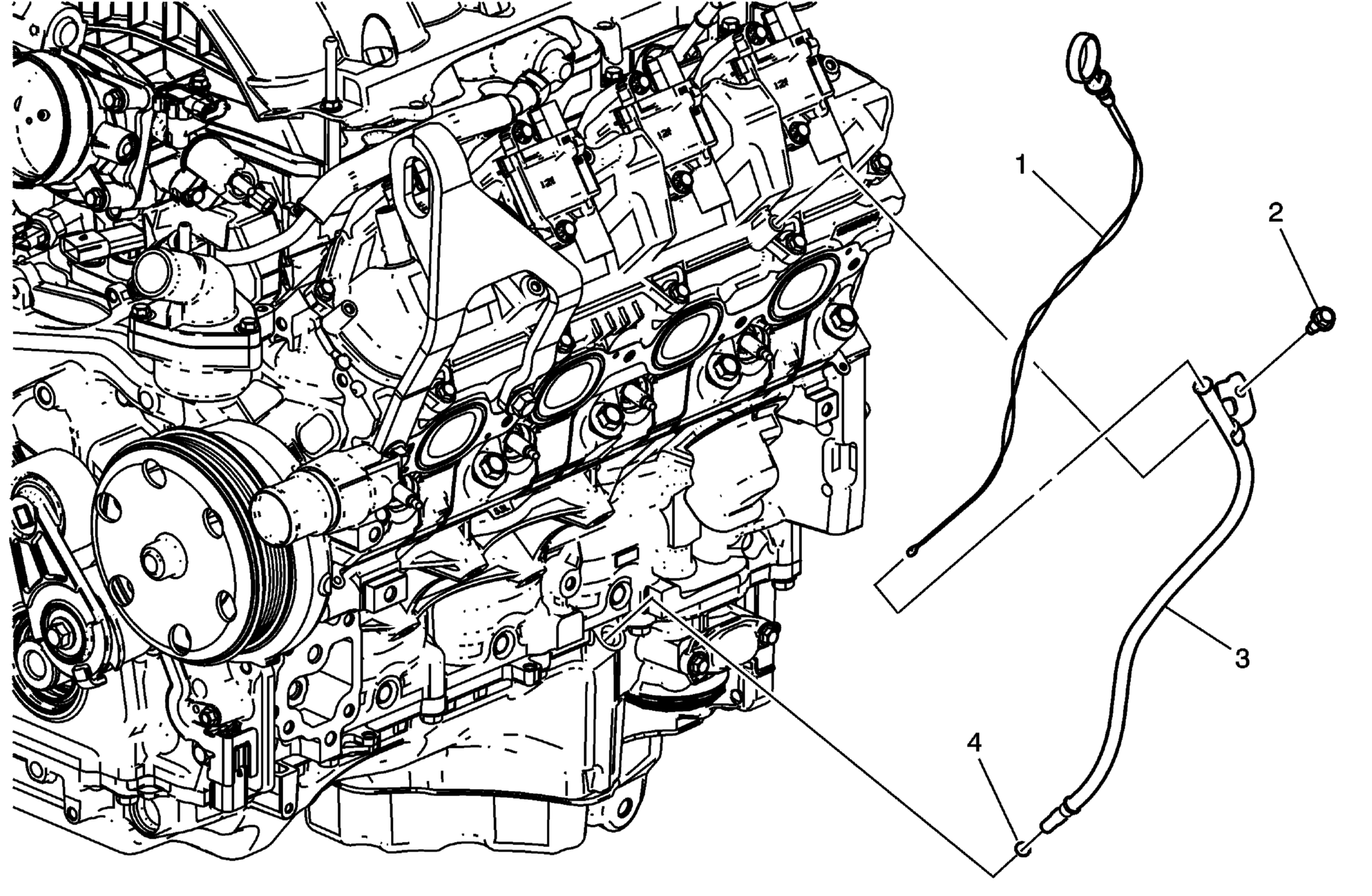

Fig 1: Oil Level Indicator and Tube
GM2866394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Level Indicator
2 Oil Level Indicator Tube Bracket Bolt
3 Oil Level Indicator Tube
4 Oil Level Indicator Tube O-Ring
