Intake Manifold Install

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

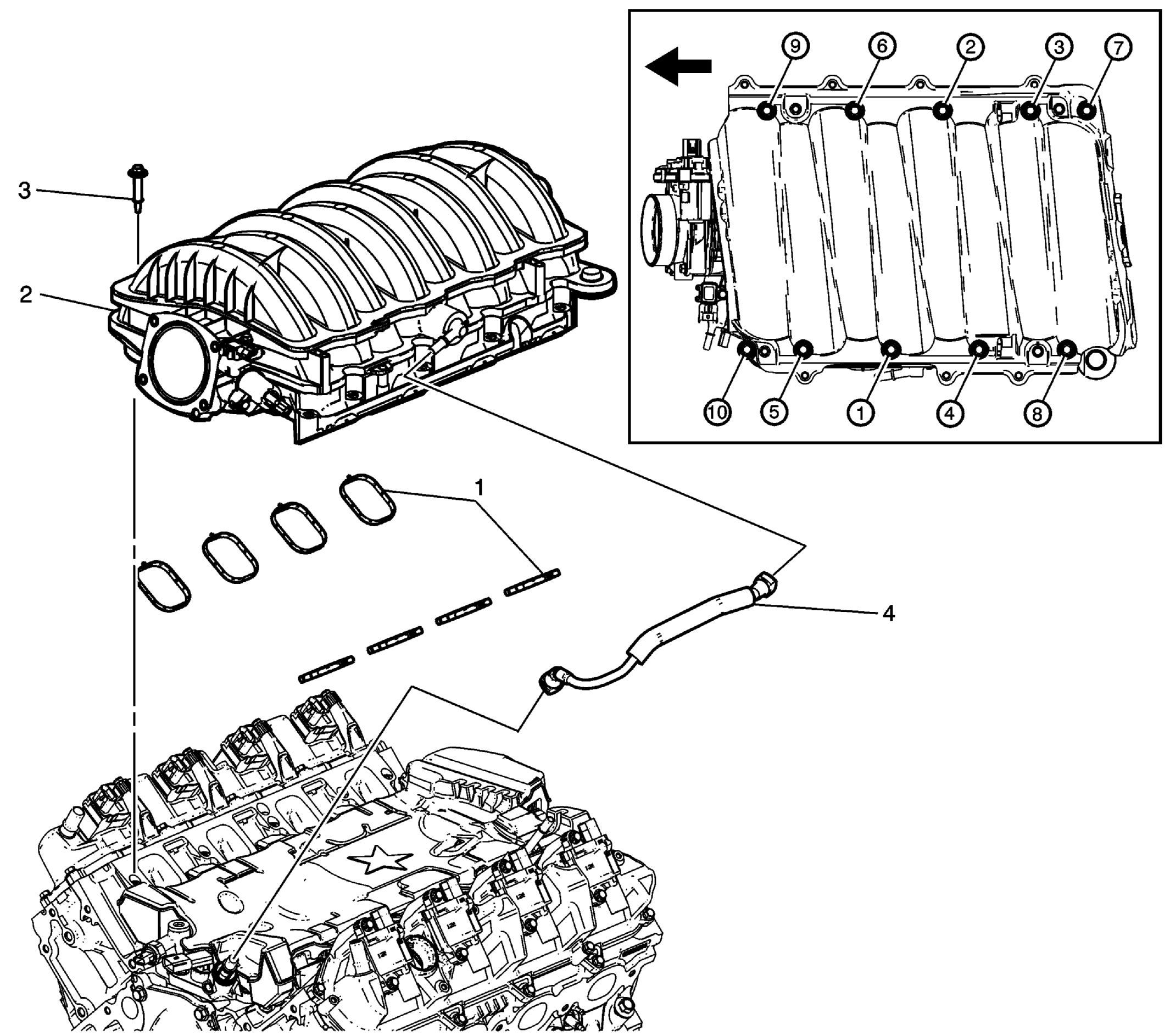

Fig 1: Intake Manifold (With Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Manifold Gasket NOTE: A NEW gasket must be used when installing the intake manifold assembly.
2	Intake Manifold Assembly
3	Intake Manifold Bolt CAUTION: Refer to Fastener Caution . Tighten: Tighten the bolts a first pass in the sequence shown to 5 N.m (44 lb in). Tighten the bolts a final pass in the sequence shown to 10 N.m (89 lb in).
4	PCV Tube Assembly Procedure The PCV tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting. To install the PCV tube, refer to Plastic Collar Quick Connect Fitting Service .
