Intake Manifold Cover Install

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

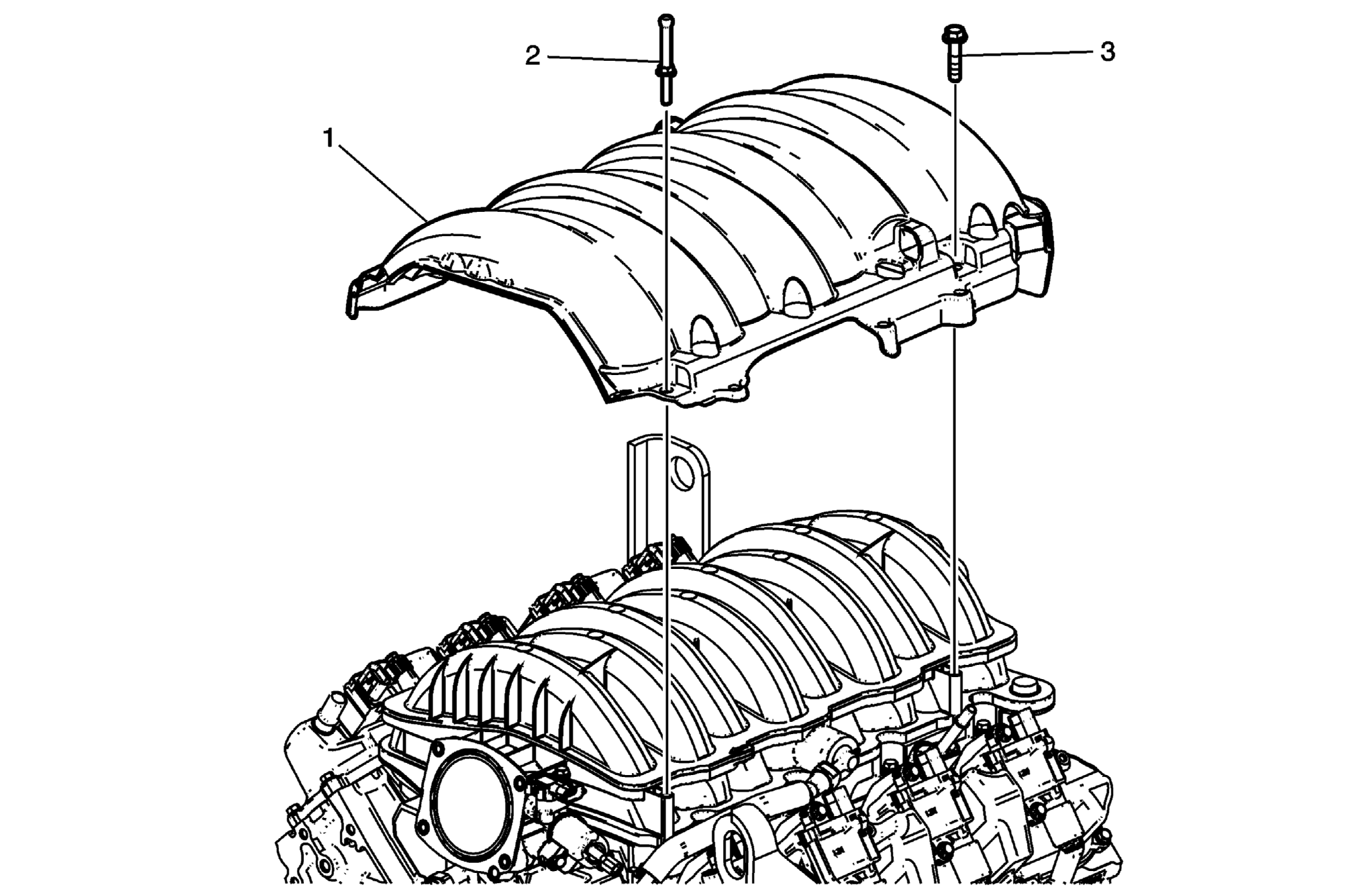

Fig 1: Intake Manifold Cover
GM2866382Courtesy of GENERAL MOTORS COMPANY
Intake Manifold Cover Install

Callout Component Name
1 Intake Manifold Cover Assembly
2 Intake Manifold Cover Stud
Tighten
4.5 N.m (40 lb in)
3 Intake Manifold Cover Bolt
Tighten
4.5 N.m (40 lb in)
