Cleaning Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

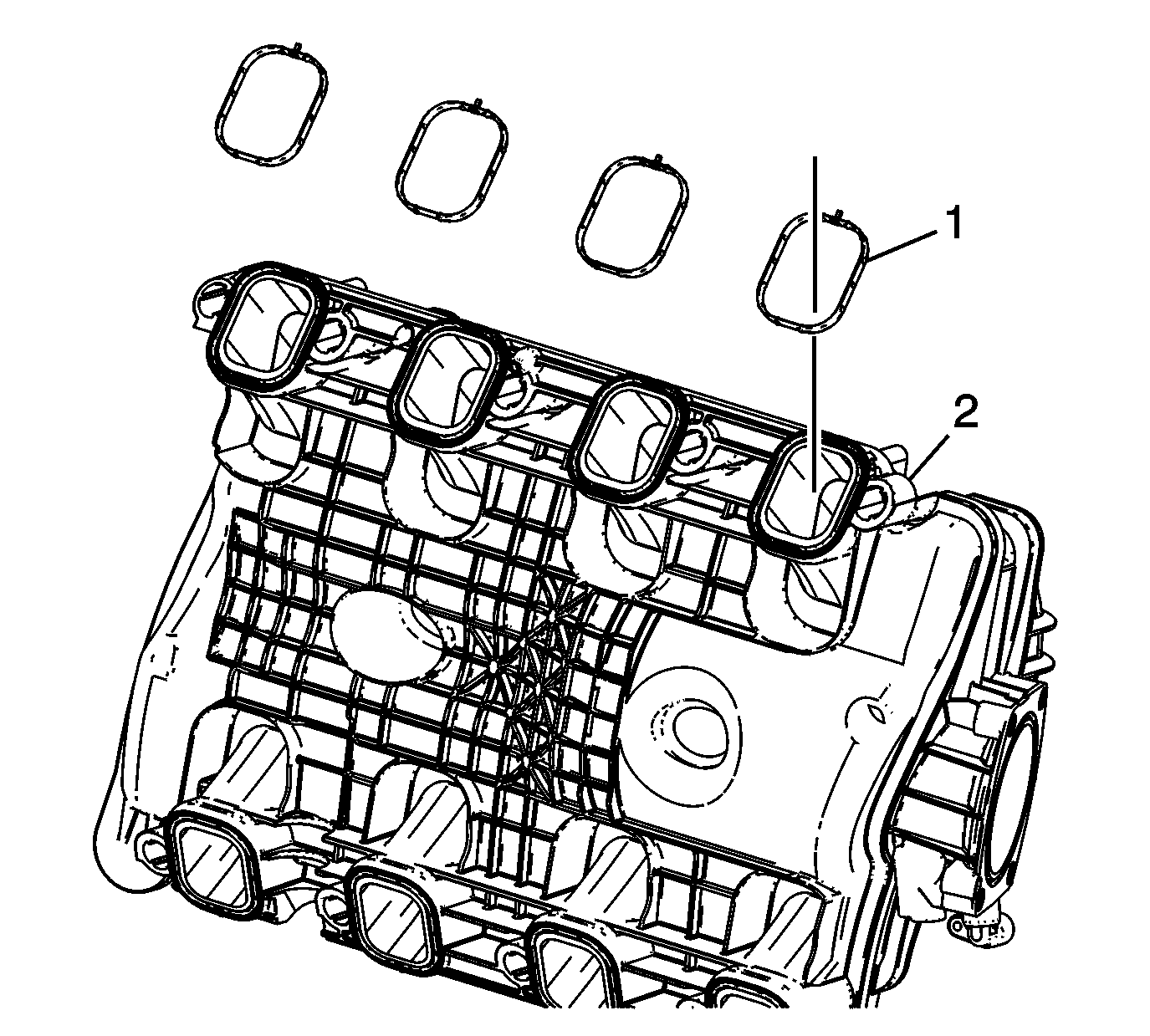

    Fig 1: Intake Manifold-To-Cylinder Head Gaskets
    GM2889928Courtesy of GENERAL MOTORS COMPANY
  1. Remove and discard the intake manifold-to-cylinder head gaskets (1).

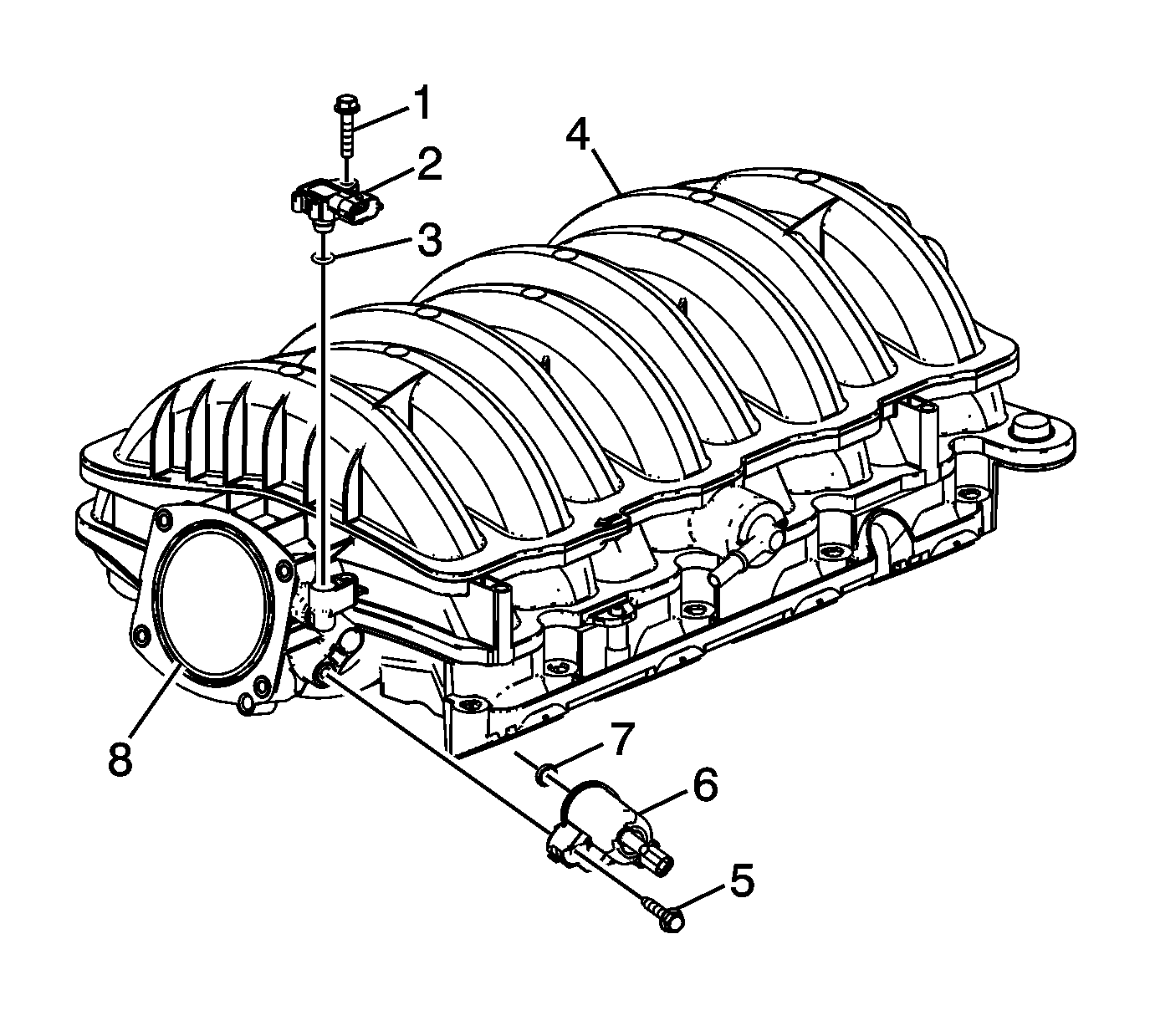

    2. Fig 2: Manifold Absolute Pressure (MAP) Sensor Bolt, MAP sensor and Seal
    GM2889926Courtesy of GENERAL MOTORS COMPANY
  2. Remove the manifold absolute pressure (MAP) sensor bolt (1), MAP sensor (2), and seal (3).
  3. Remove the evaporative emission (EVAP) canister purge solenoid valve bolt (5), EVAP canister purge solenoid valve (6), and seal (7).
  4. Clean the intake manifold in solvent.
    5. WARNING:

    Refer to Safety Glasses and Compressed Air Warning .

  5. Dry the intake manifold with compressed air.
