Fuel Pump Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

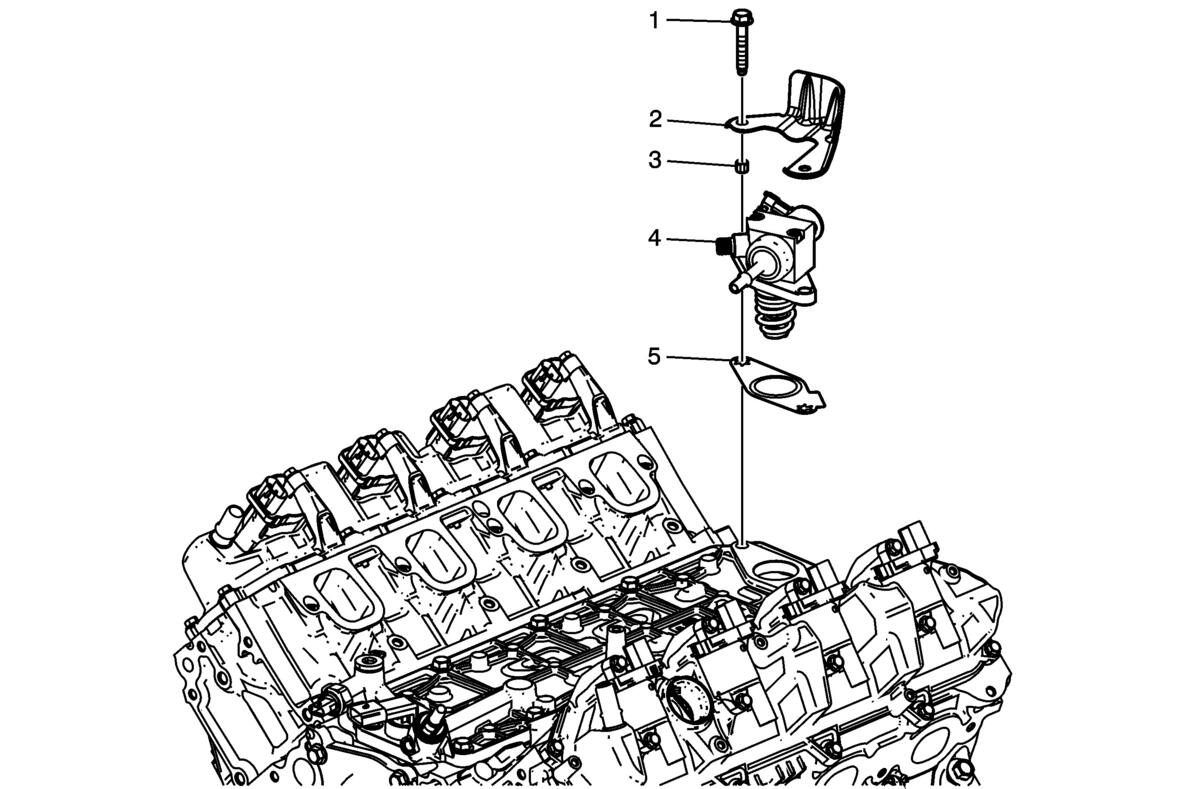

| Callout | Component Name |
|---|---|
| 1 | Fuel Pump Bolt
CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage |
| 2 | Fuel Pump Cover |
| 3 | Bolt Retainer |
| 4 | Fuel Pump Assembly |
| 5 | Fuel Pump Gasket
NOTE:
Discard gasket, it is not reusable. Refer to Replacing Engine Gaskets . |
