Exhaust Manifold Removal - Right Side
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

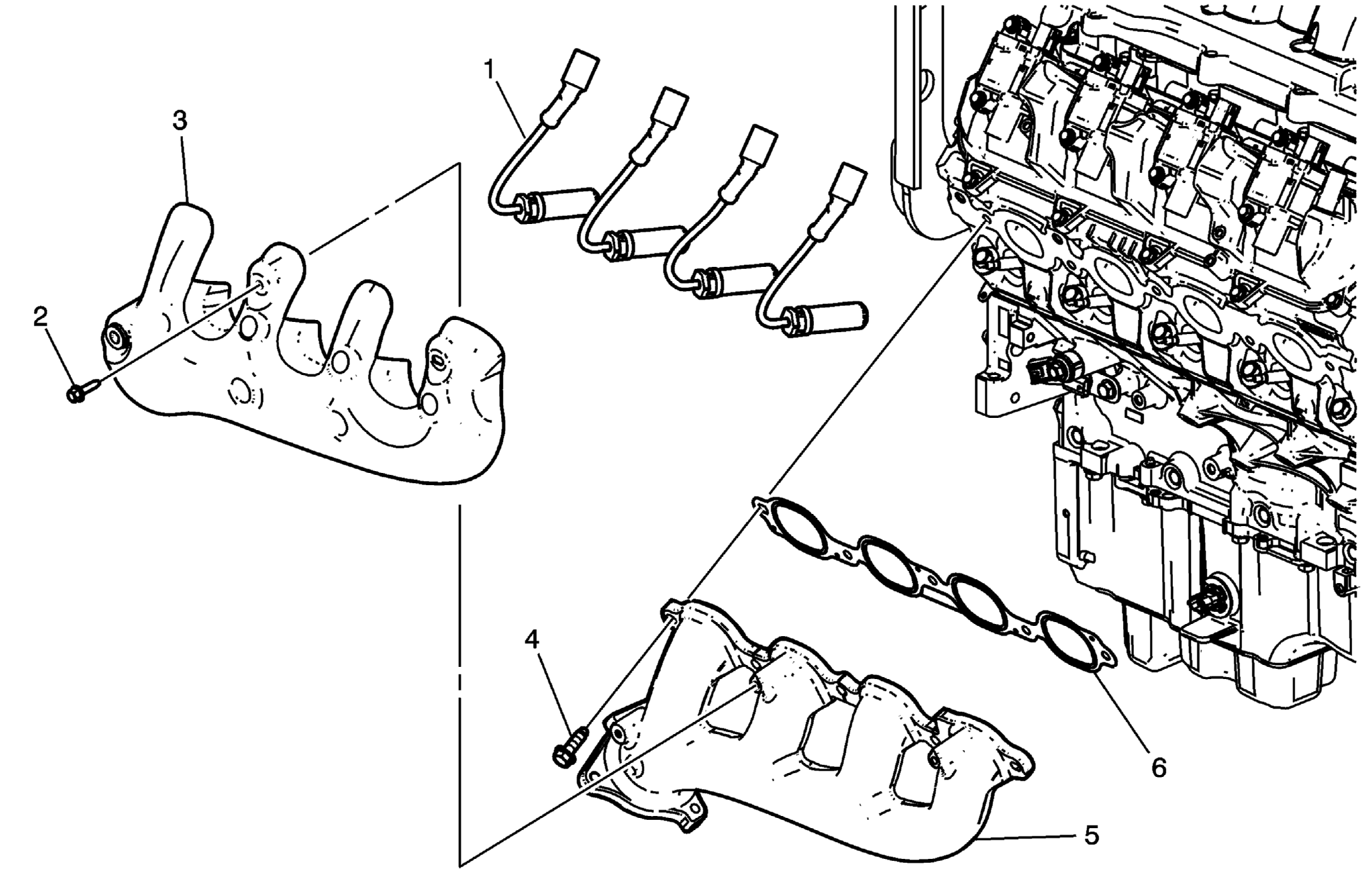

| Callout | Component Name |
|---|---|
| 1 | Spark Plug Wire |
| 2 | Exhaust Manifold Heat Shield Bolt |
| 3 | Exhaust Manifold Heat Shield |
| 4 | Exhaust Manifold Bolt Procedure Discard bolt. DO NOT reuse. |
| 5 | Exhaust Manifold |
| 6 | Exhaust Manifold Gasket Replacing Engine Gaskets |
