Exhaust Manifold Installation - Right Side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

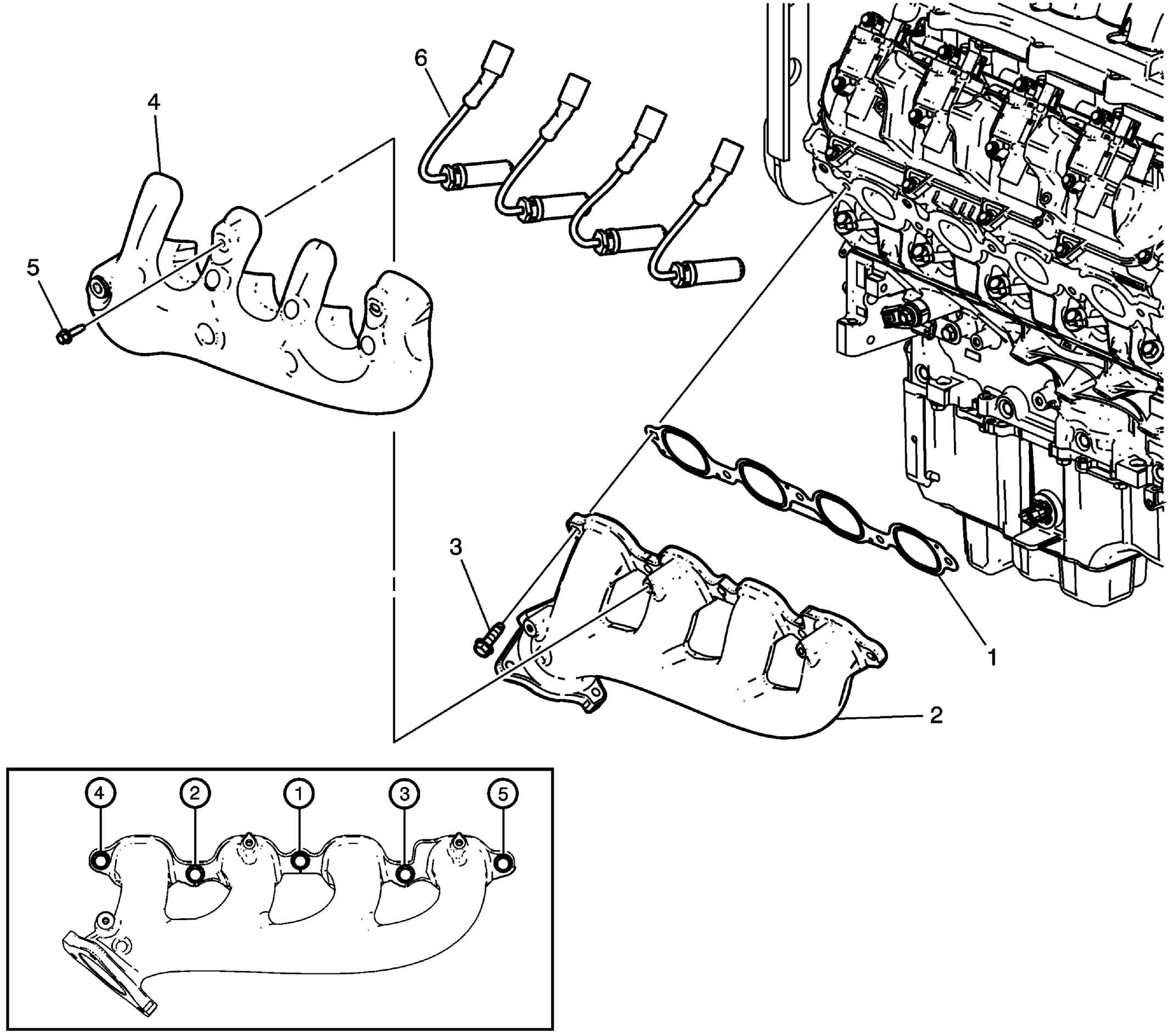

Fig 1: Exhaust Manifold - Right Side (With Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Exhaust Manifold Gasket Procedure Install a NEW gasket.
2	Exhaust Manifold
3	Exhaust Manifold Bolt CAUTION: Refer to Fastener Caution . Procedure Discard bolt. DO NOT reuse. Tighten the exhaust manifold bolts in the sequence shown. Tighten in sequence Tighten the bolts to 27 N.m (20 lb ft). Loosen bolts to 180 degrees. Tighten bolts to 23 N.m (17 lb ft)
4	Exhaust Manifold Heat Shield
5	Heat Shield Bolt Tighten 10 N.m (89 lb in)
6	Spark Plug Wires Procedure Inspect the inside of the spark plug wire boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, complete the following procedure: NOTE: Only apply dielectric grease to the spark plug side of the spark plug wire boot. When installing the wires, one audible click should be heard at the spark plug end and two audible clicks should be heard at the ignition coil end. Apply a thin coating of dielectric grease evenly to the inside of the spark plug wire boot, up to a depth of 15 mm from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.
