Engine Prelubing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
J 45299 Engine Preluber
For equivalent regional tools, refer to Special Tools
- Remove the engine oil filter and fill with clean engine oil.
- Install the oil filter and tighten 3/4 to 1 full turn after gasket makes contact with the sealing surface on the filter mounting flange.
- Ensure that the oil drain plug is installed and tightened to 25 N.m (18 lb ft).

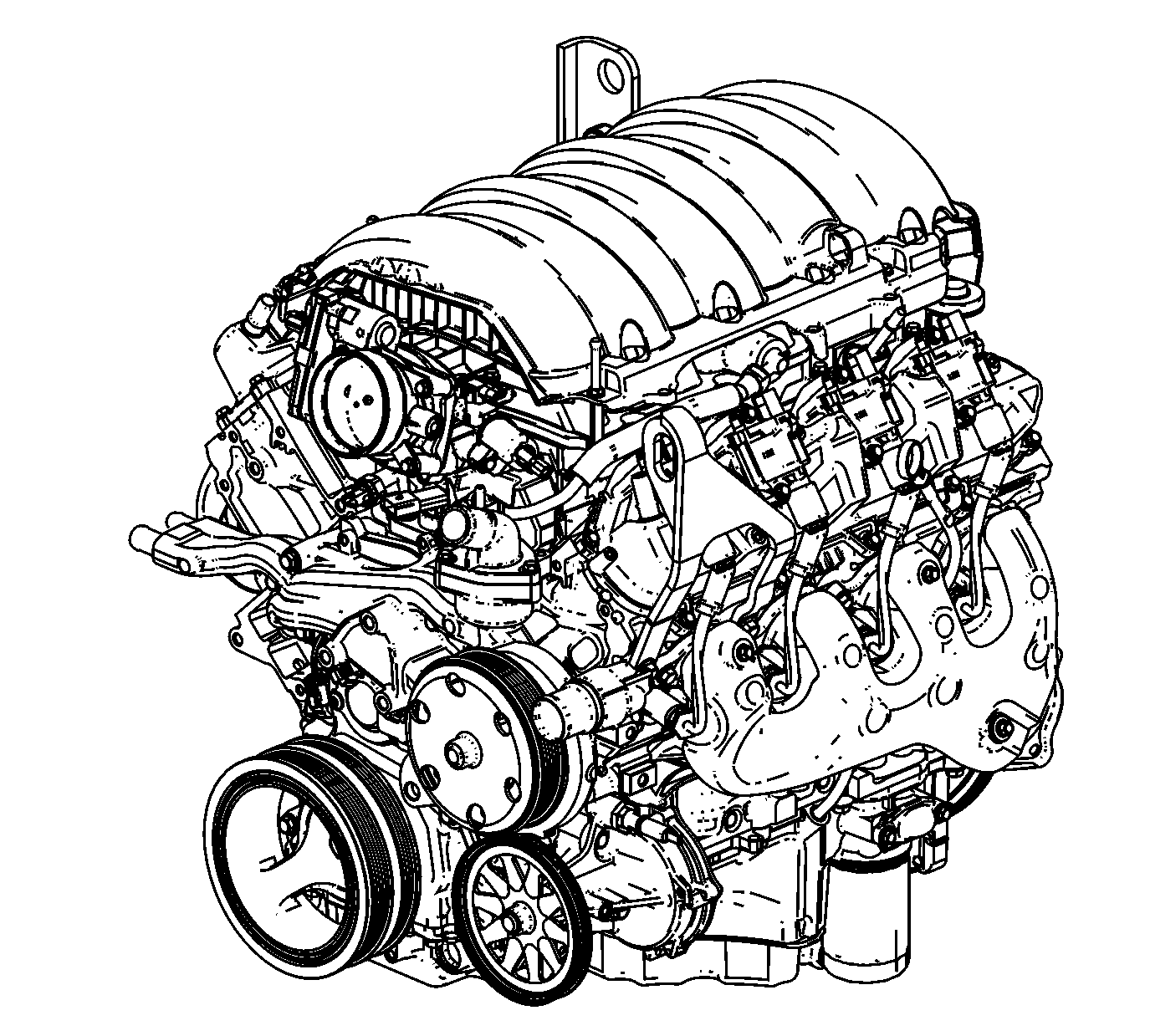

- Locate the engine block left rear oil gallery plug.
- Install the M16 x 1.5 adapter P/N 509375.
- Install the flexible hose to the adapter and open the valve.
- Pump the handle on the J 45299 preluber in order to flow a minimum of 1 - 1.9 liters (1 - 2 quarts) engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
- Close the valve and remove the flexible hose and adapter from the engine.
- Install the gallery plug to the engine and tighten to 30 N.m (22 lb ft).
- Top-off the engine oil to the proper level.
NOTE:
A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Use an approved engine oil as specified in the owners manual.
CAUTION:
Refer to Fastener Caution .
